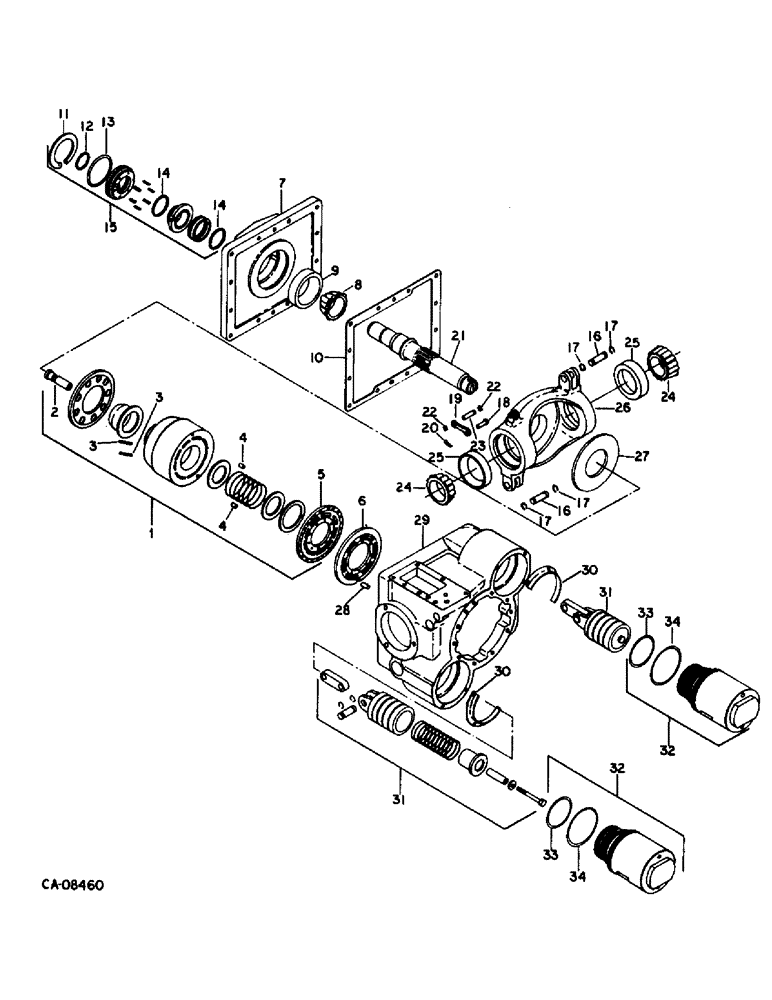

Запчасти Case IH 1470 (10-38) - HYDRAULICS, HYDROSTATIC MOTOR, 2 SPEED, EATON, CYLINDER BLOCK (07) - HYDRAULICS

1255015C93

MOTOR, HYDRAULIC

MOTOR ASSY, hydrostatic, renewed

1шт.

1976871C1

MOTOR, ELECTRIC

MOTOR ASSY, Hydrostatic

1шт.

1976872C1

REMAN-HYDROSTAT MOTO

Remanufactured, HYDRAULIC MOTOR, N.A. Only

1шт.

1976873C1

CORE-HYDROSTAT MOTOR

Return Number, N.A. Only

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2 x 1-3/4 type 5

1шт.

120384

WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

283856C1

WASHER

WASHER, 17/32 x 1 x .188

1шт.

166506C1

GASKET,0.81mm Thk

GASKET, hydraulic motor

1шт.

1

142392C92

KIT

KIT, rotating group

1шт.

2

142393C1

PISTON ASSY.

PISTON, cylinder block

9шт.

3

142394C1

PIN

PIN, pre-load dowl

6шт.

4

140754C1

PIN

PIN, bearing plate dowl

2шт.

5

142395C1

PLATE

PLATE, bearing

1шт.

6

142396C2

PLATE

PLATE, right hand pump valve

1шт.

7

FLANGE, mounting, not serviced separately, order motor 1255015C93

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4 pln type 5

1шт.

8

636826R91

BEARING ASSY,44.45 mm ID x 51 mm OD x 25.4 mm

BEARING ASSY, input shaft cone

1шт.

9

130503H

BEARING CUP

BEARING, input shaft cup

1шт.

10

142399C1

GASKET

GASKET, mounting flange

1шт.

11

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

12

24472R1

O-RING,0.07" Thk x 1.334" ID, -28, Cl 6, 90 Duro

O-RING, 1-3/8 x 1-1/2 x 1/16

1шт.

13

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

O-RING, 2-9/16 x 2-3/4 x 3/32

1шт.

14

22278R1

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

O-RING, 1-11/16 x 1-7/8 x 3/32

2шт.

15

142518C92

PACKAGE

KIT, shaft seal, consists of retainer (NSS), springs (NSS), seal (NSS), seal (NSS), ring, retaining 606937C1, o-ring 24472R1, o-ring 383017R1, o-ring 22278R1

1шт.

16

140766C1

PIN,14.22mm OD x 39.12mm L

PIN, servo linkage

2шт.

17

28145R1

SNAP RING,#56, Ext

Ring, Snap, #56, Ext

4шт.

18

133757C1

PIN

PIN, linkage clevis, Serial Range: -12000

1шт.

19

142387C1

PIPE FITTING

LINK, control valve

1шт.

20

133758C1

SPRING

PIN, hitch, Serial Range: -12000

1шт.

21

142390C1

SHAFT

SHAFT, input

1шт.

22

875777R1

SNAP RING,#25, Ext

Ring, Snap, , replaces 233045R1 #25, Ext

1шт.

23

140765C1

PIN

PIN, control valve link

1шт.

24

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

BEARING ASSY, trunnion cone

2шт.

25

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

BEARING, trunnion cup

2шт.

26

142401C1

HOUSING

HOUSING, variable swash plate, used with thrust plate, 142388C1, Serial Range: -12000

1шт.

26

80365C1

HOUSING

HOUSING, variable swash plate, used with thrust plate 80369C1, Start Serial: 12001

1шт.

27

142403C1

PLATE

PLATE, thrust, thick, 230 x 4.92 in., Serial Range: -12000

1шт.

27

80369C1

PLATE

PLATE, thrust, thin, .031 x 4.92 in., Start Serial: 12001

1шт.

28

140754C1

PIN

PIN, pump valve

1шт.

29

HOUSING, variable, not serviced separately, order pump 1255015C93

1шт.

30

142408C1

RETAINER

RETAINER, servo

2шт.

28144R1

HEX SOC SCREW,#8 - 32 x 3/8"

SCREW, #8 x 3/8 h/hsd cap

1шт.

31

1255067C1

PISTON

SPARE PART PISTON ASSY, servo

2шт.

145309C1

PISTON

PISTON

2шт.

32

142407C1

KIT

KIT, servo sleeve

2шт.

33

707220R1

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

O-RING, 3 x 3-1/4 x 1/8

2шт.

34

285724R1

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

O-RING, 3-3/8 x 3-5/8 x 1/8

2шт.
