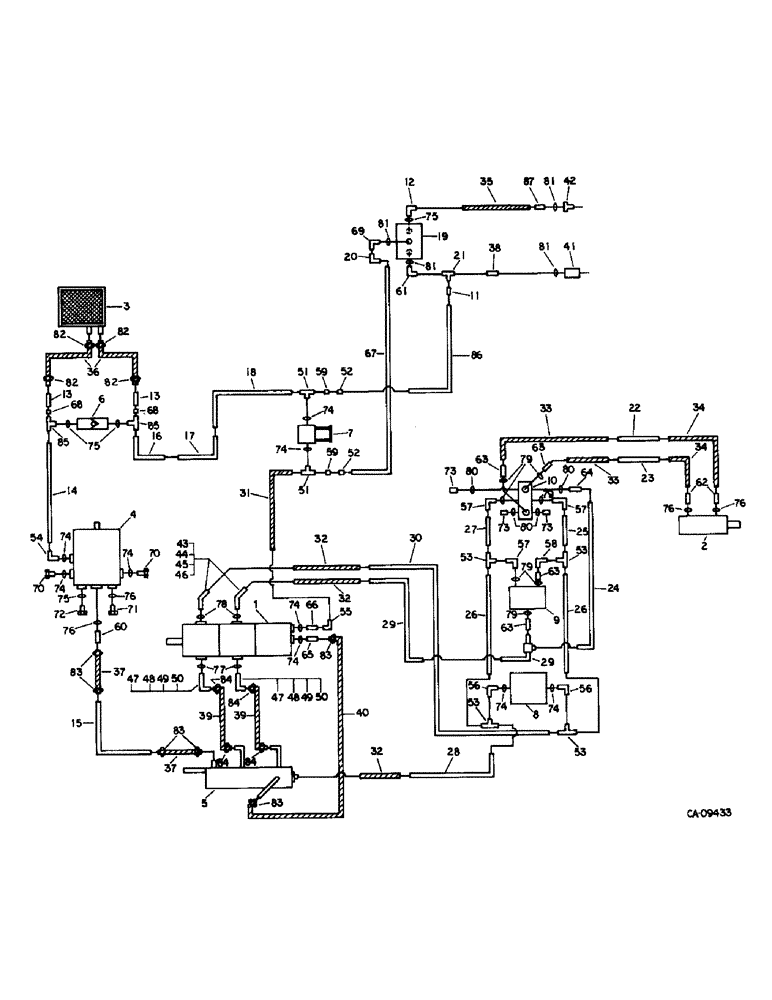

Запчасти Case IH 1470 (10-32) - HYDRAULICS, HYDRAULIC DIAGRAM, HEADER AND REEL DRIVE, SERIAL NO. 20001 AND ABOVE (07) - HYDRAULICS

1

PUMP ASSY, header and reel drive, refer to this group under pump assy, header and reel drive

1шт.

2

MOTOR ASSY, header drive, refer to group 33 under feed beater

1шт.

3

COOLER, hydraulic oil, refer to this group under hydraulic oil cooler, 536349R1

1шт.

4

RESERVOIR, hydraulic oil, refer to this group under oil reservoir, RH side

1шт.

5

1304678C1

MANIFOLD

ASSY

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 znd type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

6

1304236C1

VALVE

ASSY, check

1шт.

7

1304232C91

VALVE

ASSY, reel by-pass

1шт.

Ref #7 - No repair kit ever released, Not enough demand. 10/23/95

1шт.

8

1304231C91

VALVE

ASSY, relief

1шт.

9

1304234C91

VALVE

ASSY, flow control

1шт.

10

1304243C91

VALVE

ASSY, selector

1шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8 x 3-1/4 znd type 5

3шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

3шт.

11

386624R1

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTOR, reducer

1шт.

12

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1/2 C-Z hyd fld adj 90D

1шт.

13

1304923C1

TUBE ASSY.

TUBE ASSY, oil cooler to relief valve

2шт.

14

1304835C1

TUBE ASSY.

TUBE ASSY, reservoir to relief valve

1шт.

15

1304856C1

TUBE ASSY.

TUBE ASSY, Serial Range: reservoir-manifold

1шт.

16

1304831C1

TUBE ASSY.

TUBE ASSY, reel drive return

1шт.

17

1304830C1

TUBE ASSY.,0.75" OD, 54, 7.6" Length

TUBE ASSY, reel drive return

1шт.

18

1304829C1

TUBE ASSY.,0.75" OD, 23.8, 4.3" Length

TUBE ASSY, reel drive return

1шт.

19

1282369C91

VALVE

ASSY, flow divider

1шт.

138842C1

CABLE

ASSY, reel speed solenoid ground

1шт.

84151C1

HARNESS

ASSY, reel valve

1шт.

20

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1/2 C-Z hyd fld 90D swivel

1шт.

21

9410334

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

5/8 C-Z hyd fld tube swivel

1шт.

22

1304849C1

TUBE ASSY.,1" OD, 45.81, 10.87" Length

TUBE ASSY, header drive

1шт.

23

1304897C1

TUBE ASSY.,1" OD, 45.87, 9.5" Length

TUBE ASSY, header drive

1шт.

24

1304855C1

TUBE

ASSY, pilot pressure

1шт.

25

1304853C1

TUBE ASSY.

TUBE ASSY, header drive pressure

1шт.

26

1304912C1

HYD TUBE

TUBE ASSY, header drive return

2шт.

27

1304854C1

TUBE ASSY.,1" OD, 74, 1.8" Length

TUBE ASSY, header drive return

1шт.

28

1304905C1

TUBE ASSY.,1" OD, 20.5, 13.3" Length

TUBE ASSY, header drive return

1шт.

29

1304906C1

HYD TUBE,1" OD, 37.5, 14.3, 4" Length

TUBE ASSY, header drive pressure

1шт.

30

1304907C1

TUBE ASSY.

TUBE ASSY, header drive pressure

1шт.

31

1304279C1

HOSE

ASSY, reel drive pressure

1шт.

32

1304261C1

HYDRAULIC HOSE,1.00" ID x 20.00", SAE 100R2

- Header and reel drive pump pressure 1.00" ID x 20.00", SAE 100R2

3шт.

33

1304267C2

HOSE

ASSY, header drive, 85.9 in.

2шт.

34

1304263C1

HOSE

ASSY, header drive

2шт.

35

1310502C1

HOSE

ASSY, reel drive pressure

1шт.

36

171939C1

HOSE ASSY.

HOSE, oil cooler

2шт.

37

198302C1

HYDRAULIC HOSE,1.00" ID x 18.50", SAE 100R4 Class 4, SAE 100R3 Class 5

1.00" ID x 18.50", SAE 100R4 Class 4, SAE 100R3 Class, Manifold Suction

2шт.

38

66895C1

FITTING

UNION, 5/8 in. special

1шт.

39

1304293C1

HOSE,31.75 mm ID x 177.80 mm

Flexible, , Header Pump Suction 31.75 mm ID x 177.80 mm

2шт.

40

1304977C1

HOSE,1.00" ID x 4.50", SAE 100R4

CLASS 4, Header Pump Suction 1.00" ID x 4.50", SAE 100R4

1шт.

41

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, female self-sealing

1шт.

42

395149R1

QUICK MALE COUPLING

COUPLING ASSY, male self-sealing

1шт.

43

1304968C1

ELBOW

45 degree

2шт.

44

877949C2

CLAMP

FLANGE, split clamp half

4шт.

45

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 znd type 5

8шт.

46

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

47

1304966C1

ELBOW

90 degree

2шт.

48

301844R1

FLANGE

split clamp half

4шт.

49

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 znd type 5

8шт.

50

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

51

9411120

TEE,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring Br

3/4 C-Z hyd fld tube adj

2шт.

52

9403405

REDUCER,37 Degree, 5/8" x 3/8" Tube

FITTING, 3/4 x 1/2 C-Z hyd fld tube redr

2шт.

53

9410311

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12 Fem Sw Br

1 C-Z hyd fld tube swivel

4шт.

54

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

3/4 C-Z hyd fld adj 90D

1шт.

55

9410283

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

3/4 C-Z hyd fld 90D swivel

1шт.

56

153619C91

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

D-Z hyd fld adj 1 to 3/4 90D

2шт.

57

533566R1

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 3/16"-12, O-Ring

C-Z hyd fld adj 1 to 7/8 90D

3шт.

58

9410285

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

1 C-Z hyd fld 90D swivel

1шт.

59

9403530

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT, 3/4 C-Z hyd fld tube style B

2шт.

60

180182C1

FITTING

1 in. port, 1 in. bead tube

1шт.

61

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

5/8 C-Z hyd fld adj 90D

1шт.

62

380633R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR, 1-1/16-12 37 deg flared

2шт.

63

472755R1

HYD CONNECTOR,1 5/16"-12, 37 Degree x1 3/16"-12, O-Ring

CONNECTOR, C-Z hyd fld 1 to 7/8 sht

4шт.

64

394955R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR, C-Z hyd fld 3/8 to 1/4 sht

1шт.

65

195731C1

CONNECTOR, ELEC

CONNECTOR, 1-1/16-12 x 1 in.

1шт.

66

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4 C-Z hyd fld short swivel

1шт.

67

1324369C1

TUBE

ASSY, reel drive upper

1шт.

68

1304639C1

REDUCER

CONNECTOR

2шт.

69

936450R91

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

C-Z hyd fld adj 5/8 to 1/2 90D

1шт.

70

9410361

PLUG

3/4 C-Z str thd o-ring boss

2шт.

71

9410363

PLUG

1 C-Z str thd o-ring boss

1шт.

72

9410359

PLUG

1/2 C-Z str thd o-ring boss

1шт.

73

9410356

PLUG

1/4 C-Z str thd o-ring boss

1шт.

74

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

9шт.

75

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

4шт.

76

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube class 6

4шт.

77

343921R1

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1-7/8 x 2-1/8 class 6

2шт.

78

343906R1

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1-5/16 x 1-9/16 class 6

2шт.

79

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube class 6

7шт.

80

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

4шт.

81

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

4шт.

82

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, oil cooler hose

4шт.

83

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP, no. 24 shoe type F hose

6шт.

84

279027R91

CLAMP,#28, 1.31/2.25 Type F Worm

header pump suction hose

4шт.

85

9410309

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

3/4 C-Z hyd fld tube swivel

2шт.

587577R1

CONNECTION,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, C-Z hyd fld 3/4 to 1/2 sht

2шт.

86

1324370C1

TUBE

ASSY, reel drive lower

1шт.

87

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, C-Z hyd fld 5/8 to 1/2 sht

1шт.

THE SOLENOIDS A AND B HAVE BEEN SET UP AS PART NO. 493410 for 1304243c91 valve assy, djo 9/5/97

1шт.
