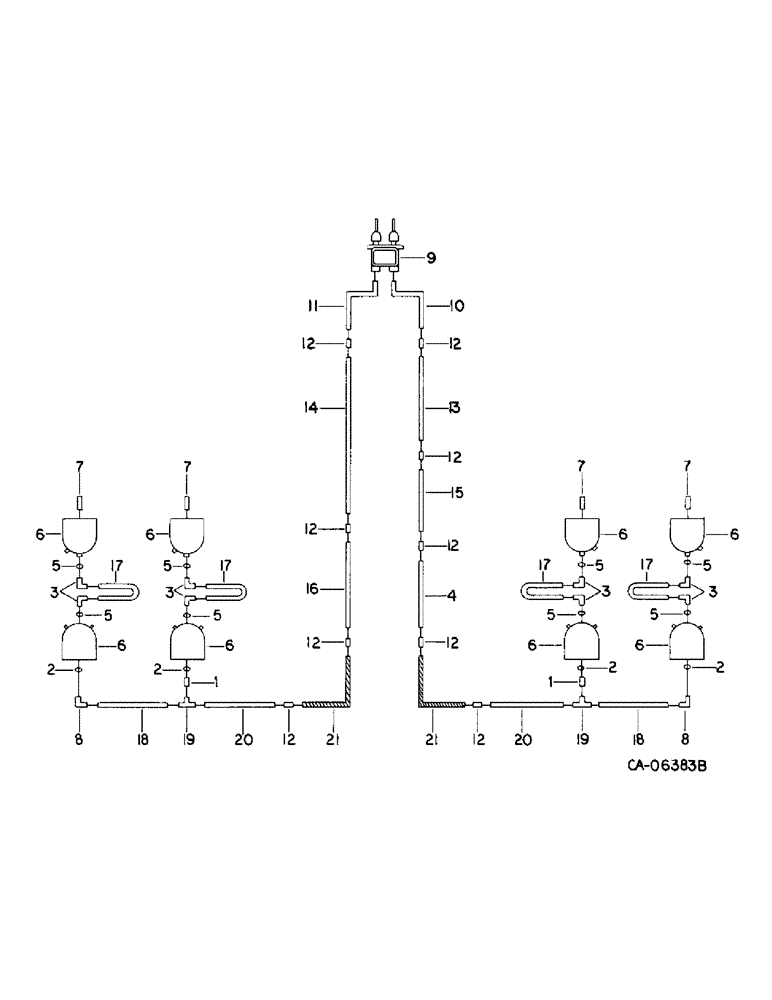

Запчасти Case IH 1470 (10-26) - HYDRAULICS, HYDRAULIC DIAGRAM, MAIN FRONT DISC BRAKES (07) - HYDRAULICS

1

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR, 1/4 C-Z hyd fld short swivel

2шт.

2

895644C1

O-RING,0.351" ID x 0.495" OD x 0.072"

O-RING, for 1/4 OD

4шт.

3

9410973

ELBOW,90 Degree, 3/8"-24, 37 Degree x 3/8"-24, O-Ring

3/16 C-Z hyd fld adj 90D

8шт.

9410355

PLUG,Hex Hd, 3/8"-24 ORB

3/16 C-Z str thd o-ring boss

16шт.

4

1304919C1

TUBE ASSY.

TUBE ASSY, RH still front brake

1шт.

5

1304938C1

OIL SEAL

O-RING, for 3/16 OD

8шт.

6

1304295C92

BRAKE

CALIPER ASSY, front disc brake

4шт.

1304286C2

SEAL

caliper brake

8шт.

26715R1

BOLT (SPREADER),Hex, 7/8"-9 x 6 1/2", G8

BOLT, 7/8 x 6-1/2 phc type 8

1шт.

23831R1

NUT,7/8"-9, G8

7/8 type 8

1шт.

131168

LOCK WASHER,7/8"

7/8"

1шт.

1304666C1

WASHER

brake caliper

8шт.

7

1304939C1

TUBE

VALVE ASSY, bleeder

4шт.

8

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

1/4 C-Z hyd fld adj 90D

2шт.

9

MASTER CYLINDER, refer to group 4 under master brake controls

1шт.

10

187728C1

TUBE

ASSY, RH brake, Serial Range: upper-cylinder

1шт.

11

187726C1

TUBE

ASSY, LH brake, Serial Range: upper-cylinder

1шт.

12

442336

SUPPORT TUBE

UNION, 1/4 pln inv fld tube

1шт.

13

187729C1

TUBE

ASSY, RH brake center

1шт.

14

1304813C1

TUBE ASSY.

TUBE ASSY, LH still front brake

1шт.

15

176807C1

BAT

TUBE ASSY, RH brake, Serial Range: lower-cylinder

1шт.

16

1304811C1

TUBE ASSY.

TUBE ASSY, LH still front brake

1шт.

17

1317158C1

HYD TUBE,0.1875" OD, 95, 38 mm Length

TUBE ASSY, upper front brake

1шт.

18

1304807C1

TUBE ASSY.,0.25" OD, 4.7, 2.8" Length

TUBE ASSY, lower front

2шт.

19

9410304

TEE,37 Degree, 7/16"-20 x 7/16"-20, Fem Sw Br

1/4 C-Z hyd fld tube swivel

2шт.

20

1304810C1

HYD TUBE

TUBE ASSY, front brake pivot arm

2шт.

21

1304296C2

HOSE

ASSY, front brake pivot

2шт.

1304298C3

BRAKE

KIT, caliper brake

4шт.

1314034C91

KIT

ASSY, caliper brake, for updating combines, Serial Range: -5500

2шт.

9410973

ELBOW,90 Degree, 3/8"-24, 37 Degree x 3/8"-24, O-Ring

2шт.

895644C1

O-RING,0.351" ID x 0.495" OD x 0.072"

O-RING

2шт.

1304938C1

OIL SEAL

O-RING

12шт.

9410355

PLUG,Hex Hd, 3/8"-24 ORB

2шт.

27339R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 5/8"

SCREW

8шт.

1317158C1

HYD TUBE,0.1875" OD, 95, 38 mm Length

TUBE, instruction (NSS)

2шт.
