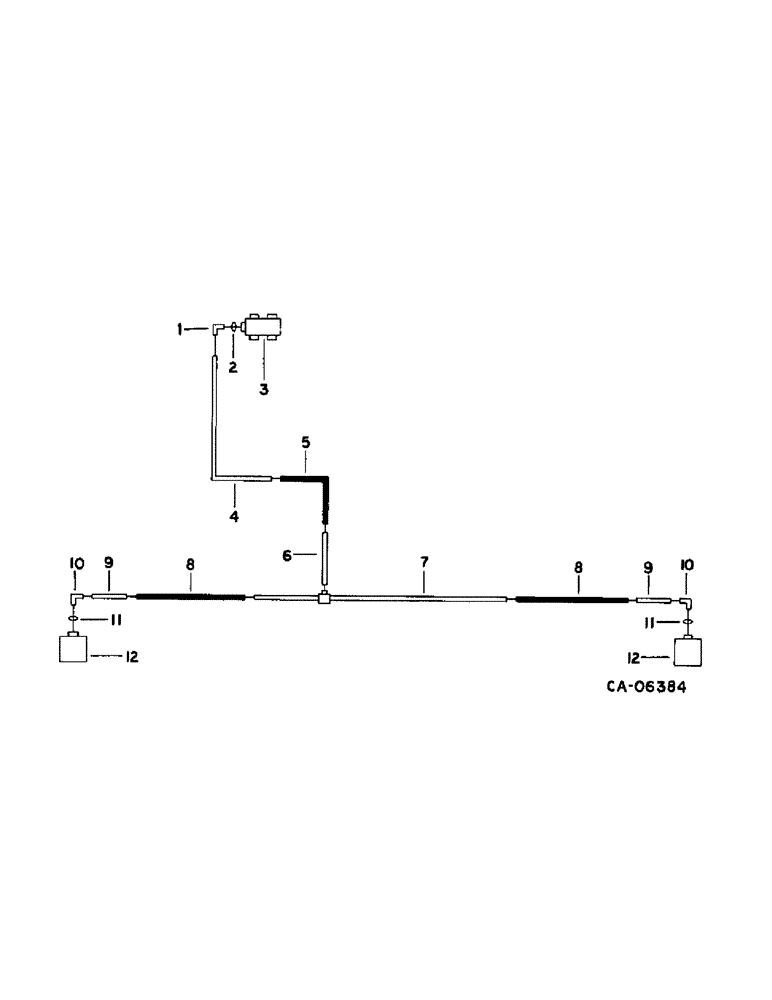

Запчасти Case IH 1470 (10-25) - HYDRAULICS, HYDRAULIC DIAGRAM, FAILSAFE BRAKE (07) - HYDRAULICS

1

935036R91

ELBOW

C-Z hyd fld adj 1/2 to 3/8 90D

1шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

3

VALVE ASSY, rear brake, refer to this group under rear wheel drive

1шт.

4

1304869C1

HYD TUBE,0.375" OD, 24.4, 5.8" Length

TUBE ASSY, rear brake pressure

1шт.

5

1317157C1

HOSE ASSY.

HOSE ASSY, rear brake pressure

1шт.

6

1304870C1

HYD TUBE,0.375" OD, 14.5, 5.3" Length

TUBE ASSY, rear brake pressure

1шт.

7

1304880C1

HYD TUBE

TUBE ASSY, rear brake pressure

1шт.

8

1310708C1

HOSE ASSY.

HOSE ASSY, rear brake pressure

1шт.

9

1304894C1

HYD TUBE,0.25" OD, 11.4, 8.25" Length

TUBE ASSY, rear brake pressure

1шт.

10

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

7/16-20 37 deg flared 90 deg

2шт.

11

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

2шт.

12

1304148C91

BRAKE ASSY.

BRAKE ASSY, rear failsafe, consists of

2шт.

1304275C1

SEAL KIT

ASSY, seal

1шт.

1304276C1

KIT

ASSY, stack

1шт.

1304277C1

KIT

ASSY, bearing

1шт.

1304278C1

GASKET

KIT ASSY, gasket

1шт.
