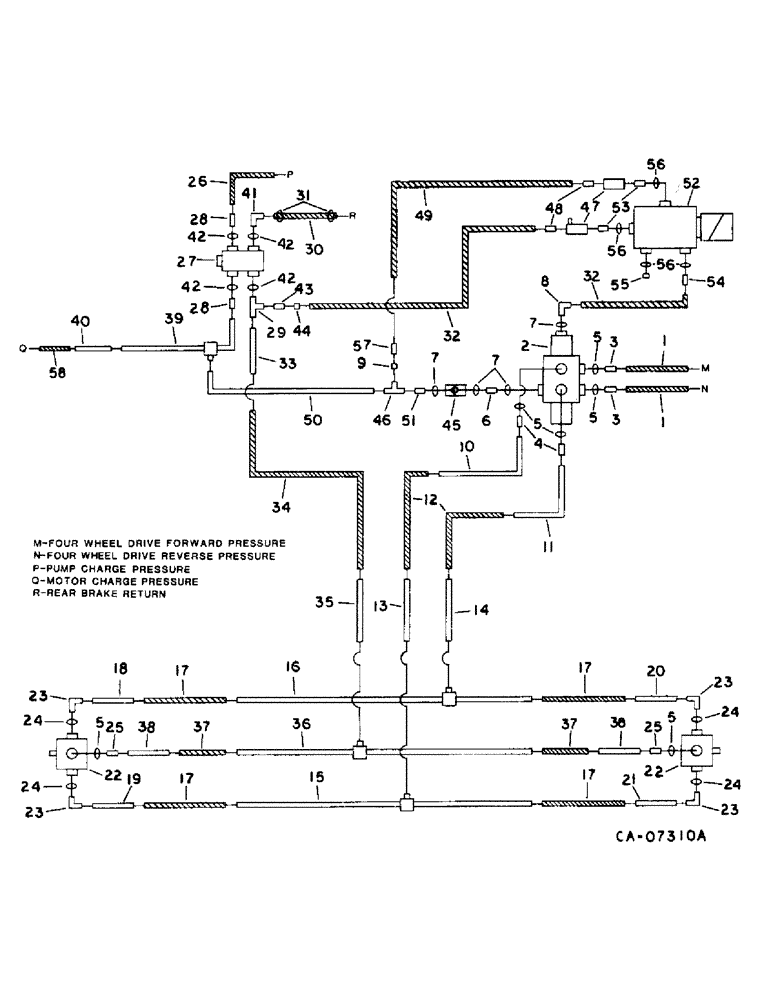

Запчасти Case IH 1470 (10-23) - HYDRAULICS, HYDRAULIC DIAGRAM, REAR WHEEL DRIVE, SERIAL NO. 10001 AND ABOVE (07) - HYDRAULICS

1

1304931C1

HOSE,19.05mm ID x 762mm L

ASSY, drive valve pressure

2шт.

2

1255430C92

VALVE

ASSY, drive

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

1255431C2

SEAL KIT

seal, see note

1шт.

3

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 1-1/16-12 37 deg flared

2шт.

4

574018R1

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 1-1/16-12 x 1-5/16-12 37 deg flared

2шт.

5

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 in. OD tube

6шт.

6

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR, 7/16-20 37 deg flared

1шт.

7

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

4шт.

8

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

7/16-20 37 deg flared 90 deg

1шт.

9

9403527

TUBE NUT,37 Degree, 9/16"-18, Type B

NUT, 9/16-18 37 deg tube

1шт.

10

1304862C1

TUBE ASSY.,1" OD, 24.95, 6" Length

TUBE ASSY, drive forward

11шт.

11

1304863C1

TUBE ASSY.

TUBE ASSY, drive reverse

1шт.

12

1304281C2

HOSE

ASSY, drive intermediate pressure

2шт.

13

1304864C1

HYD TUBE,1" OD, 19, 7" Length

TUBE ASSY, drive forward pressure

1шт.

14

1304865C1

HYD TUBE,1" OD, 17.5, 7" Length

TUBE ASSY, drive reverse pressure

1шт.

15

1304881C1

HYD TUBE,1" OD, 1447.8, 184.1 mm Length

TUBE ASSY, drive forward pressure

1шт.

16

1304882C1

HYD TUBE,1" OD, 1518.9, 174 mm Length

TUBE ASSY, drive reverse pressure

1шт.

17

1304283C3

HOSE ASSY.,19.05mm ID x 1016mm L, SAE 100R10

HOSE ASSY, , CLASS 12, Drive Motor Pressure 0.75" ID x 40.00", SAE 100R10

4шт.

18

1304879C1

TUBE ASSY.

TUBE ASSY, drive motor

1шт.

19

1304877C1

HYD TUBE

TUBE ASSY, drive motor

1шт.

20

1304878C1

HYD TUBE

TUBE ASSY, drive motor

1шт.

21

1304876C1

HYD TUBE

TUBE ASSY, drive motor

1шт.

22

MOTOR ASSY, rear wheel drive, refer to this group under hydrostatic motor, single speed

2шт.

23

1304629C2

ELBOW

1 x 1-1/16-12 37 deg

4шт.

877949C2

CLAMP

FLANGE, split

8шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

24

343906R1

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1-5/16 x 1-9/16 class 6

4шт.

25

380632R1

HYD CONNECTOR,3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, C-Z hyd fld 3/4 to 1/2 short

2шт.

26

632454R91

HYDRAULIC HOSE,0.31" ID x 30.00", SAE 100R1 Class B

HOSE ASSY, charge pressure

1шт.

27

1304238C91

VALVE

ASSY, rear brake

1шт.

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

5/16 x 2-1/2 type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

28

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR, 3/4-16 x 9/16-18 37 deg

2шт.

29

9411131

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

3/4-16 37 deg flared

1шт.

30

1202977C1

HOSE,0.38" ID x 33.50"

- Brake valve return 0.38" ID x 33.50"

1шт.

31

244713R1

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP, rear brake valve return

2шт.

32

66880C1

HOSE,6.35mm ID x 508mm L, SAE 100R1

4 Wheel Drive Valve Return 0.25" ID x 20.00", SAE 100R1

2шт.

33

1304875C1

HYD TUBE

TUBE ASSY, case drain

1шт.

34

1301966C2

HYDRAULIC HOSE

HOSE ASSY, case drain, replaces 1304282C1

1шт.

35

1304874C1

TUBE,0.5" OD, 14.5, 5.1" Length

ASSY, case drain

1шт.

36

1304873C1

HYD TUBE,0.5" OD, 48.3, 3.34" Length

TUBE ASSY, case drain

1шт.

37

1310709C1

HOSE

ASSY, wheel motor case drain

2шт.

38

1304872C1

HYD TUBE,0.5" OD, 3.56, 1.2" Length

TUBE ASSY, wheel motor case drain

2шт.

39

1304858C1

HYD TUBE

TUBE ASSY, charge pressure upper

1шт.

40

1317167C1

HYD TUBE

TUBE ASSY, charge pressure lower

1шт.

41

1304632C1

ELBOW

3/4-16 x 3/8 OD tube 90 deg

1шт.

42

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 in. OD tube class 6

5шт.

43

9403399

REDUCER,37 Degree, 1/2" x 1/4" Tube

FITTING, 1/2 tube x 7/16-20 37 deg flared

1шт.

44

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, 1/2 OD tube reducer

1шт.

45

1304237C1

VALVE

ASSY, check

1шт.

46

9410332

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

9/16-18 deg flared

1шт.

47

1304962C1

VALVE

ASSY, flow control

2шт.

48

9402706

HYD CONNECTOR,7/16"-20, 37 Degree x 1/8"-27, NPTF

CONNECTOR, 1/4 C-Z hyd flared tube

2шт.

49

183531C1

HOSE,6.35 mm ID x 686.00, SAE 100R1 CLASS 7

ASSY, charge pressure

1шт.

50

1310705C1

HYD TUBE

TUBE ASSY, charge pressure

1шт.

51

394955R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR, 7/16-20 x 9/16-18 37 deg flared

1шт.

52

VALVE ASSY, 4 wheel drive, refer to this group under 4 wheel drive, feeder and separater clutch valve

1шт.

53

610082C1

HYD CONNECTOR,9/16"-18, 37 Degree x 1/8"-27, NPTF

CONNECTOR, 3/8 x 1/8 C-Z hyd fld

2шт.

54

157519C1

HYD CONNECTOR,7/16"-20, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 x 1/4 C-Z hyd fld

1шт.

55

9410358

PLUG

3/8 C-Z str thd o-ring boss

1шт.

56

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

4шт.

57

9403398

REDUCER,37 Degree, 3/8" x 1/4" Tube

FITTING, 3/8 x 1/4 C-Z hyd fld tube

1шт.

9403371

CAP,37 Degree, 9/16"-18

3/8 C-Z hyd flared tube

1шт.

58

183708C1

HOSE,0.31" ID x 34.00", SAE 100R1

charge pressure lower

1шт.
