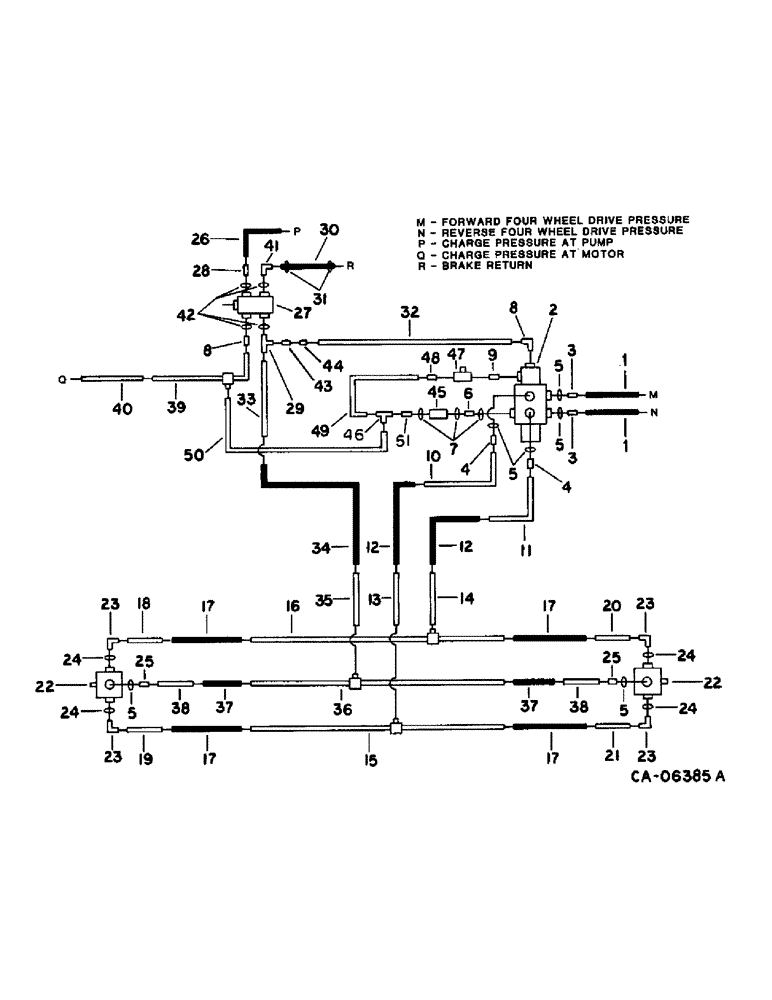

Запчасти Case IH 1470 (10-21) - HYDRAULICS, HYDRAULIC DIAGRAM, REAR WHEEL DRIVE, SERIAL NO. 10000 AND BELOW (07) - HYDRAULICS

1

1304931C1

HOSE,19.05mm ID x 762mm L

ASSY, drive valve pressure

2шт.

2

224506C91

VALVE

ASSY, drive

1шт.

79089C1

SEAL

KIT, seal

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

3

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4 C-Z hyd fld short swivel

1шт.

4

574018R1

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, C-Z hyd fld 1 to 3/4 sht

2шт.

5

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

6шт.

6

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR, 1/4 C-Z hyd fld short swivel

1шт.

7

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

3шт.

8

585694R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

C-Z hyd fld 3/8 to 1/8 90D

1шт.

9

443977

UNION

NIPPLE, 1/8-27 znp auto pipe

1шт.

10

1304862C1

TUBE ASSY.,1" OD, 24.95, 6" Length

TUBE ASSY, drive forward

1шт.

11

1304863C1

TUBE ASSY.

TUBE ASSY, drive reverse

1шт.

12

1304281C2

HOSE

ASSY, drive intermediate pressure

2шт.

13

1304864C1

HYD TUBE,1" OD, 19, 7" Length

TUBE ASSY, drive forward pressure

1шт.

14

1304865C1

HYD TUBE,1" OD, 17.5, 7" Length

TUBE ASSY, drive reverse pressure

1шт.

15

1304881C1

HYD TUBE,1" OD, 1447.8, 184.1 mm Length

TUBE ASSY, drive forward pressure

1шт.

16

1304882C1

HYD TUBE,1" OD, 1518.9, 174 mm Length

TUBE ASSY, drive reverse pressure

1шт.

17

1304283C3

HOSE ASSY.,19.05mm ID x 1016mm L, SAE 100R10

HOSE ASSY, , CLASS 12, Drive Motor Pressure 0.75" ID x 40.00", SAE 100R10

4шт.

18

1304879C1

TUBE ASSY.

TUBE ASSY, drive motor

1шт.

19

1304879C1

TUBE ASSY.

TUBE ASSY, drive motor

1шт.

20

1304878C1

HYD TUBE

TUBE ASSY, drive motor

1шт.

21

1304876C1

HYD TUBE

TUBE ASSY, drive motor

1шт.

22

MOTOR ASSY, rear wheel drive, refer to this group under hydrostatic motor, single speed

2шт.

23

1304629C2

ELBOW

1 in. flange x 1-1/16-12 37 deg

4шт.

1304630C1

CLAMP

FLANGE, split clamp

8шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

24

343906R1

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1-5/16 x 1-9/16 class 6

4шт.

25

380632R1

HYD CONNECTOR,3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, C-Z hyd fld 3/4 to 1/2 sht

2шт.

26

632454R91

HYDRAULIC HOSE,0.31" ID x 30.00", SAE 100R1 Class B

HOSE ASSY, charge pressure

1шт.

27

1304238C91

VALVE

ASSY, rear brake

1шт.

180091

SPRING

5/16 x 2-1/2 type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

28

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR, 3/4-16 x 9/16-18 37 deg

2шт.

29

9411131

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

3/4-16 37 deg

1шт.

30

1202977C1

HOSE,0.38" ID x 33.50"

- Brake valve return 0.38" ID x 33.50"

1шт.

31

244713C1

CLAMP, rear brake valve return

2шт.

32

1304860C1

TUBE

ASSY, drive valve return

1шт.

33

1304875C1

HYD TUBE

TUBE ASSY, case drain

1шт.

34

1301966C2

HYDRAULIC HOSE

HOSE ASSY, case drain, replaces 1304282C1

1шт.

35

1304874C1

TUBE,0.5" OD, 14.5, 5.1" Length

ASSY, case drain

1шт.

36

1304873C1

HYD TUBE,0.5" OD, 48.3, 3.34" Length

TUBE ASSY, case drain

1шт.

37

196858C1

HOSE ASSY.

HOSE ASSY, motor case drain

2шт.

38

1304872C1

HYD TUBE,0.5" OD, 3.56, 1.2" Length

TUBE ASSY, motor case drain

2шт.

39

1304858C1

HYD TUBE

TUBE ASSY, charge pressure upper

1шт.

40

1304257C1

TUBE

ASSY, charge pressure lower

1шт.

41

1304632C1

ELBOW

3/4-16 x 3/8 90 deg

1шт.

42

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

4шт.

43

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

FITTING, 1/2 x 3/8 C-Z hyd fld tube redr

1шт.

44

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, 1/2 C-Z hyd fld tube style B

1шт.

45

1304237C1

VALVE

ASSY, check

1шт.

46

9410332

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

3/8 C-Z hyd fld tube swivel

1шт.

47

1304962C1

VALVE

ASSY, flow control

1шт.

48

610082C1

HYD CONNECTOR,9/16"-18, 37 Degree x 1/8"-27, NPTF

CONNECTOR, C-Z hyd fld 3/8 to 1/8

1шт.

19

1304636C1

TUBE ASSY.

TUBE ASSY, charge pressure

1шт.

50

1304637C2

TUBE ASSY, charge pressure

1шт.

51

394955R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR, 7/16-20 9/16-18 37 deg

1шт.
