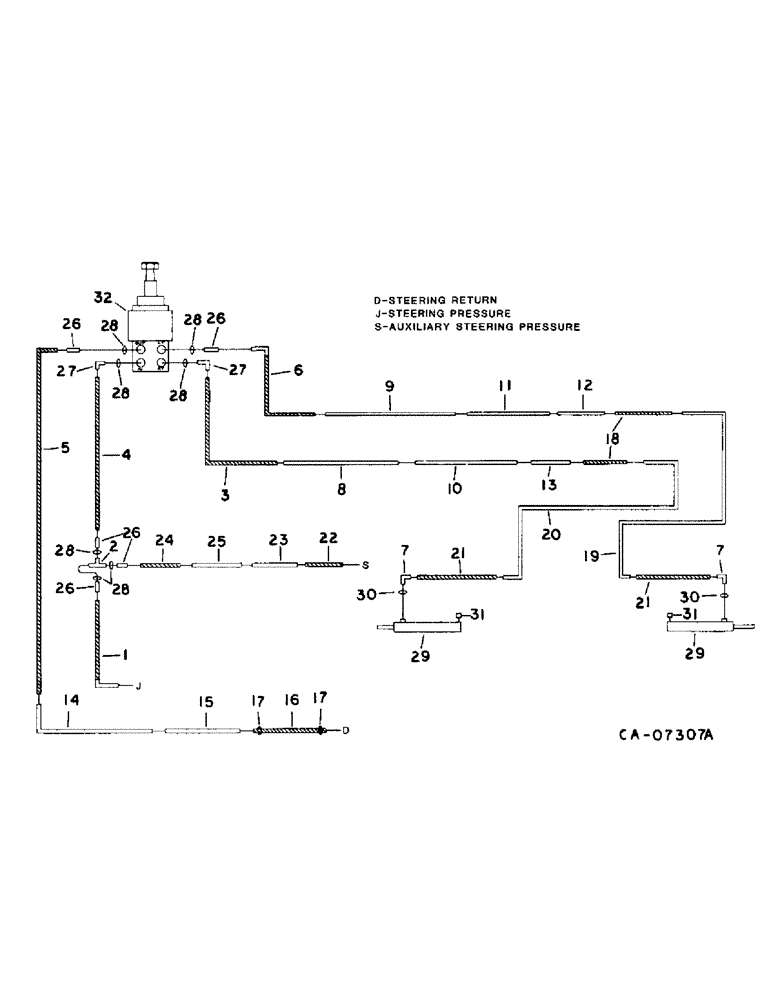

Запчасти Case IH 1470 (10-13) - HYDRAULICS, HYDRAULIC DIAGRAM, STEERING SYSTEM, SERIAL NO. 10001 AND ABOVE (07) - HYDRAULICS

1

1301967C1

HOSE

ASSY, steering pressure

1шт.

2

1310866C1

VALVE

ASSY, steering shuttle

1шт.

3

1301966C2

HYDRAULIC HOSE

HOSE ASSY, steering RH

1шт.

4

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

HOSE ASSY, steering, 50 in., 1270 mm

1шт.

5

1301965C1

HOSE

ASSY, steering, 39.3 in., 998.2 mm

1шт.

6

1301964C1

HOSE

ASSY, steering LH

1шт.

7

615667C1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

9/16 x 3/4 37 deg

2шт.

8

1304070C1

TUBE

ASSY, upper inter. inner

1шт.

9

1304071C1

TUBE

ASSY, upper inter. outer

1шт.

10

1310509C1

HYD TUBE,0.5" OD, 78.8, 7.6" Length

TUBE ASSY, lower inter. inner

1шт.

11

1310510C1

HYD TUBE,0.5" OD, 77.5, 6.6" Length

TUBE ASSY, lower inter. outer

1шт.

12

1304844C1

TUBE ASSY.,0.5" OD, 36.3, 9, 2.5" Length

TUBE ASSY, steering

1шт.

13

1304845C1

TUBE ASSY.

TUBE ASSY, steering

1шт.

14

1310507C1

HYD TUBE,0.625" OD, 57.6, 7, 4.9" Length

TUBE ASSY, return forward

1шт.

15

196746C1

HYD TUBE

TUBE ASSY, return rearward

1шт.

16

HOSE, steering return, use 18 in. of 3/4 ID hose from 25 ft. roll marked 180720C2

1шт.

17

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, return hose

2шт.

18

1304251C2

HYDRAULIC HOSE

HOSE ASSY, 1/2 x 41 in. hydraulic

2шт.

19

1304770C2

HYD TUBE

TUBE ASSY, RH

1шт.

20

1304769C2

HYD TUBE,0.5" OD, 539.8, 484.2 mm Length

TUBE ASSY, steering, LH

1шт.

21

1310709C1

HOSE

ASSY, steering, replaces 196822C1

2шт.

22

1304245C2

HYDRAULIC HOSE

HOSE ASSY, pressure

1шт.

23

1304836C1

TUBE ASSY.

TUBE ASSY, pressure rear

1шт.

24

1317160C1

HOSE ASSY.

HOSE ASSY, pressure

1шт.

25

1304839C1

TUBE ASSY.

TUBE ASSY, pressure front

1шт.

26

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 1/2 C-Z hyd fld short swivel

5шт.

27

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1/2 C-Z hyd fld adj 90D

2шт.

28

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

7шт.

29

1304773C92

CYLINDER

ASSY, steering

2шт.

30

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD

2шт.

31

1304785C1

BREATHER

cylinder port

2шт.

32

1304074C91

HYDRAULIC STEERING

PUMP ASSY, steering hand

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

17009R1

BALL

9/32 grade 25 metal

1шт.

1301869C1

WASHER

KIT ASSY, washer

1шт.

224712C1

SEAL KIT

PACKAGE, seal

1шт.

1301867C91

PIN ASSY.

PIN ASSY, hydra guide

1шт.

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube class 6

1шт.

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, 3/16 OD tube class 6

1шт.

392382R1

O-RING,0.551" ID x 0.07" Width

9/16 x 11/16 class 6

1шт.

383878R1

SNAP RING,1.25, Int, #125

RING, 1.388 int ret

1шт.

1301870C1

O-RING,2.86" ID x 2.989" OD x 0.066"

2.86 ID x 2.989 OD x .66 class 6

1шт.

1304776C1

SEAL KIT

ASSY, steering cylinder seal, consists of, (4) o-rings (NSS), (4) back up rings (NSS), snap ring (NSS), rod wiper (NSS), (4) bolts (NSS), (4) lockwashers (NSS)

1шт.
