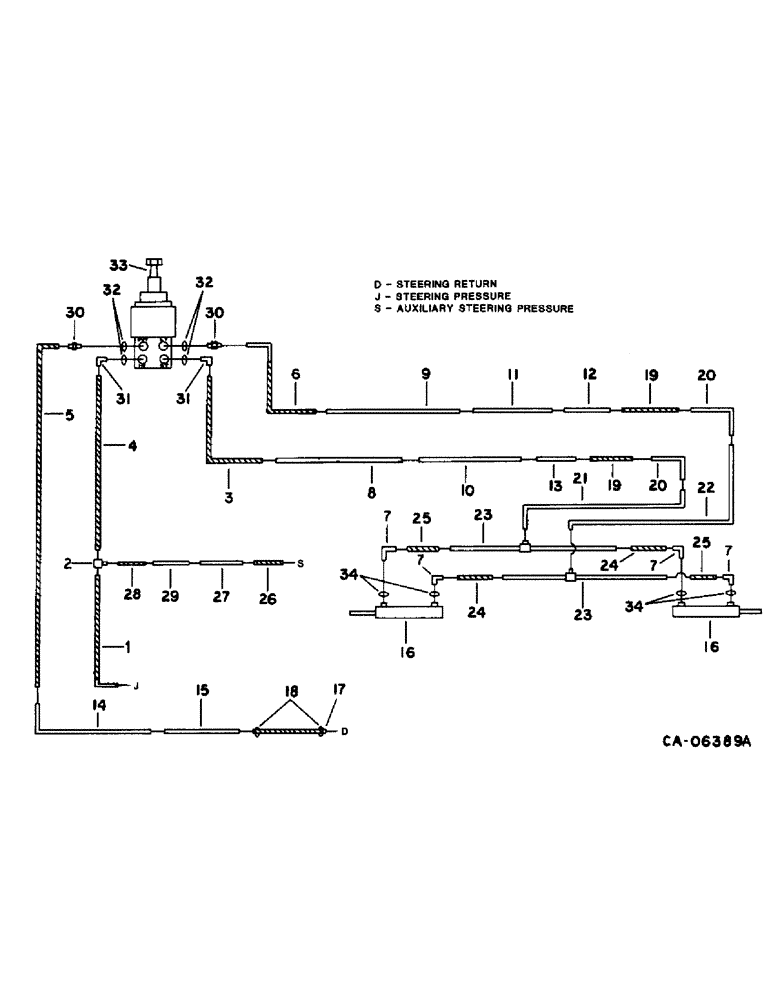

Запчасти Case IH 1470 (10-11) - HYDRAULICS, HYDRAULIC DIAGRAM, STEERING SYSTEM, SERIAL NO. 10000 AND BELOW (07) - HYDRAULICS

1

1301967C1

HOSE

ASSY, steering pressure

1шт.

2

9402982

TEE,3/4"-16, 37 Degree

3/4-16 36 deg

1шт.

3

1304064C1

HOSE

ASSY, steering

1шт.

4

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

HOSE ASSY, steering, 50 in., 1270 mm

1шт.

5

1301965C1

HOSE

ASSY, steering, 39.3 in., 998.2 mm

1шт.

6

1304065C1

HOSE

ASSY, steering

1шт.

7

615667C1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

9/16 x 3/4 37 deg

4шт.

8

1304070C1

TUBE

ASSY, upper inter. inner

1шт.

9

1304071C1

TUBE

ASSY, upper inter. outer

1шт.

10

1310509C1

HYD TUBE,0.5" OD, 78.8, 7.6" Length

TUBE ASSY, lower inter. inner

1шт.

11

1310510C1

HYD TUBE,0.5" OD, 77.5, 6.6" Length

TUBE ASSY, lower inter. outer

1шт.

12

1304844C1

TUBE ASSY.,0.5" OD, 36.3, 9, 2.5" Length

TUBE ASSY, steering

1шт.

13

1304845C1

TUBE ASSY.

TUBE ASSY, steering

1шт.

14

1304087C1

TUBE

ASSY, return forward

1шт.

15

196746C1

HYD TUBE

TUBE ASSY, return forward

1шт.

16

1304225C91

CYLINDER

ASSY, steering, Serial Range: -5500

2шт.

16

1304773C92

CYLINDER

ASSY, steering w/yoke, Start Serial: 5501

2шт.

1304195C1

PIN

clevis

1шт.

1304197C1

PIN

retainer spring

1шт.

17

HOSE, return, use 18 in. of 3/4 ID from 25 ft. roll marked 180720C2

1шт.

18

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, return hose

2шт.

19

1304251C2

HYDRAULIC HOSE

HOSE ASSY, 1/2 x 41 in. hydraulic

2шт.

20

1304903C1

HYD TUBE,0.5" OD, 8.2, 4" Length

TUBE ASSY

2шт.

21

1304848C1

TUBE ASSY.,0.5" OD, 14.6, 10.4" Length

TUBE ASSY

1шт.

22

1304850C1

TUBE ASSY.

TUBE ASSY

1шт.

23

1304852C1

TUBE ASSY.,0.5" OD, 20.2" Length

TUBE ASSY

2шт.

24

1304250C1

HOSE

ASSY

2шт.

25

144140C1

HOSE,9.53mm ID x 787.4mm L, SAE 100R1

ASSY, steering, replaces 587582R91, Serial Range: -5500

2шт.

25

1310709C1

HOSE

ASSY, steering, replaces 196822C1, Start Serial: 5501

2шт.

26

1304245C1

HOSE ASSY.

HOSE ASSY, pressure

1шт.

27

1304836C1

TUBE ASSY.

TUBE ASSY, pressure rear

1шт.

28

1304933C1

HOSE

ASSY, pressure

1шт.

29

1304839C1

TUBE ASSY.

TUBE ASSY, pressure front

1шт.

30

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 1/2 C-Z hyd fld short swivel

2шт.

31

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1/2 C-Z hyd fld adj 90D

2шт.

32

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

for 1/2 OD tube

4шт.

33

1304074C91

HYDRAULIC STEERING

PUMP ASSY, steering hand

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

1301867C91

PIN ASSY.

PIN ASSY

1шт.

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, 3/16 OD tube class 6

1шт.

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube class 6

1шт.

392382R1

O-RING,0.551" ID x 0.07" Width

9/16 x 11/16 class 6

1шт.

1301870C1

O-RING,2.86" ID x 2.989" OD x 0.066"

1шт.

383878R1

SNAP RING,1.25, Int, #125

RING, 1.388 int ret

1шт.

17009R1

BALL

9/32 grade 25 metal

1шт.

224712C1

SEAL KIT

PACKAGE, seal

1шт.

1301869C1

WASHER

KIT ASSY, washer

1шт.

34

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

4шт.

Ref #34 - SB 053-87 Seal Kit Pkg for counter balance Valve 93282C1 10/19/95

1шт.

1304223C1

KIT

ASSY, steering cylinder seal, Serial Range: -5500

1шт.

1304776C1

SEAL KIT

ASSY, steering cylinder seal, consists of (4) o-rings (NSS), (4) back up rings (NSS), snap ring (NSS), rod wiper (NSS), (4) bolts (NSS), (4) lock washers (NSS), Start Serial: 5501

1шт.
