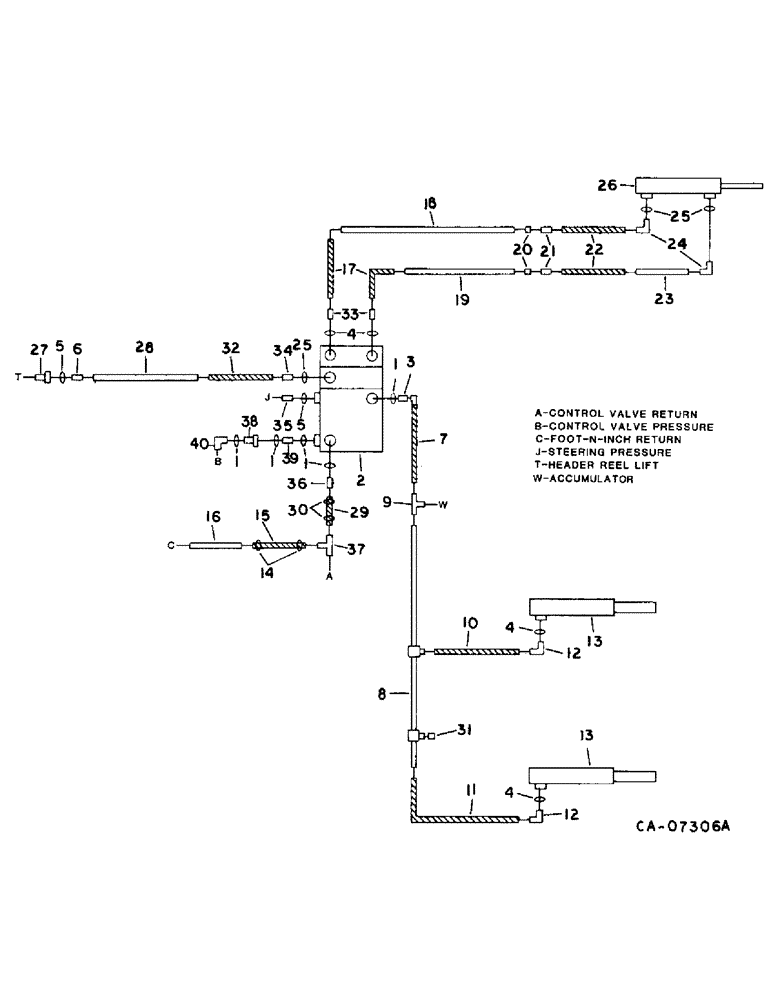

Запчасти Case IH 1470 (10-09) - HYDRAULICS, HYDRAULIC DIAGRAM, HEADER LIFT AND UNLOADER SWING CYLINDER, S.N. 10001 AND ABOVE (07) - HYDRAULICS

1

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

3шт.

2

CONTROL VALVE ASSY, refer to this group under header, unload/ single BI, directional and double piloted valves

1шт.

3

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 5/8 C-Z hyd fld short

1шт.

4

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

4шт.

5

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD

2шт.

6

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short

1шт.

7

1310862C1

HOSE

ASSY, header lift, 29 in., 736.6 mm

1шт.

8

1310832C1

TUBE

ASSY, header lift cylinder

1шт.

9

TEE, 7/8-14 37 deg, refer to this group under accumulator

1шт.

10

144140C1

HOSE,9.53mm ID x 787.4mm L, SAE 100R1

ASSY, header lift cylinder, 31 in., 787 mm, replaces 587582R91

1шт.

11

1310709C1

HOSE

ASSY, header lift cylinder, 45 in., 1143 mm, replaces 196822C1

1шт.

12

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1/2 C-Z hyd fld adj 90D

2шт.

13

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSY, header lift, refer to this group under header lift cylinder and CYL-1 section A

1шт.

13

127779C94R

REMAN-HYD CYLINDER

1470 INTERNATIONAL HARVESTER HILLSIDE COMBINE, S.N. 10001 AND ABOVE, Assy, header lift

1шт.

13

127779C94C

CORE-HYD CYLINDER

Return Number

1шт.

224718C92

SEAL KIT

KIT, cylinder service

1шт.

14

244713R1

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP, hose

2шт.

15

HOSE, feeder clutch return, use 12.5 in. of 3/8 ID hose from 25 ft. roll marked S118400

1шт.

16

1310833C1

HYD TUBE

TUBE ASSY, foot-n-inch return

1шт.

17

183883C1

HOSE ASSY.

HOSE, unloader swing, Serial Range: 10001-12000

2шт.

17

66880C1

HOSE,6.35mm ID x 508mm L, SAE 100R1

Unloader Swing 0.25" ID x 20.00", SAE 100R1, Start Serial: 12001

2шт.

18

196751C1

UNLOADING TUBE

TUBE ASSY, unloader swing lower

1шт.

19

196751C1

UNLOADING TUBE

TUBE ASSY, unloader swing upper, replaces 196799C1

1шт.

20

9403291

BHD LOCK NUT,Blkhd, 7/16"-20

NUT, 1/4 bulkhead union

2шт.

21

9403252

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

7/16-20 hyd 37 deg flared

2шт.

22

195604C1

HOSE ASSY.

HOSE ASSY, unloader, 15 in., 381.0 mm

2шт.

23

196800C1

HYD TUBE

TUBE ASSY, unloader swing cylinder

1шт.

24

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

1/4 C-Z hyd fld adj 90D

2шт.

25

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

3шт.

26

113960C93

CYLINDER ASSY.,Double Acting, 19.05mm Rod, 381mm Stroke

CYLINDER ASSY, unloader swing, for service parts refer to CYL-1 section B

1шт.

1304776C1

SEAL KIT

cylinder service

1шт.

22754R1

CLEVIS PIN,5/8" x 1.844"

PIN, CLEVIS, 5/8" x 1.844"

1шт.

28196R1

SPLIT PIN/SAFETY PIN

PIN, 5/8 x 2.250 clevis

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

27

187562C1

QUICK MALE COUPLING

COUPLING ASSY, reel lift self-sealing male

1шт.

28

1310839C1

HYD TUBE

TUBE ASSY, reel lift

1шт.

29

HOSE, header lift return, use 5 in. of 3/4 ID hose from 25 ft. roll marked 180720C2

1шт.

30

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, return

2шт.

31

9403372

CAP,37 Degree, 3/4"-16

1/2 C-Z hyd flared tube

1шт.

32

155309C91

HYDRAULIC HOSE,0.31" ID x 20.00", SAE 100R1

Reel Lift 0.31" ID x 20.00", SAE 100R1

1шт.

33

629349R1

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, C-Z hyd fld 1/2 to 1/4 sht

2шт.

34

394955R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR, C-Z hyd fld 3/8 to 1/4 sht

1шт.

35

324273R1

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, C-Z hyd fld 1/2 to 3/8 sht

1шт.

36

387488R1

CONNECTOR, ELEC

CONNECTOR, 7/8-14 & 3/4 beaded hyd flared tube reducing

1шт.

37

196709C1

TEE

header lift

1шт.

38

1267150C91

FILTER ASSY

FILTER, pressure line

1шт.

39

1267158C1

CONNECTOR, ELEC

UNION, 7/8-14

1шт.

40

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

5/8 C-Z hyd fld adj 90D

1шт.

1272043C1

KIT

pressure line filter service, consists of element (NSS), spring (NSS), o-ring (NSS), gasket (NSS)

1шт.
