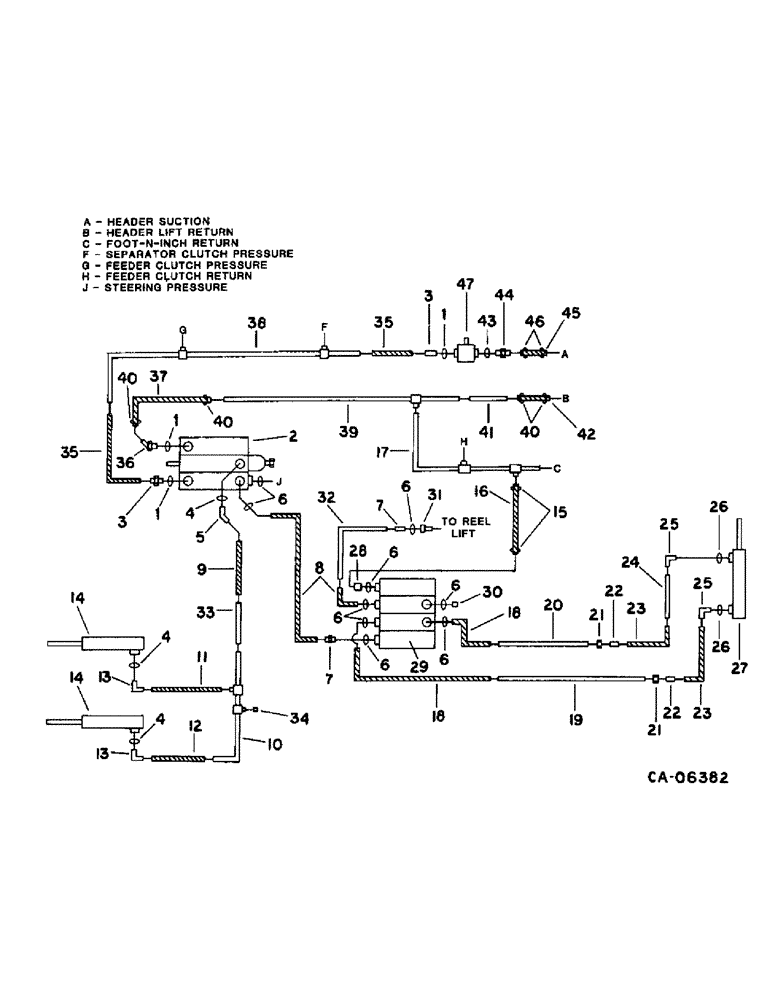

Запчасти Case IH 1470 (10-07) - HYDRAULICS, HYDRAULIC DIAGRAM, HEADER LIFT AND UNLOADER SWING CYLINDER, S.N. 10000 AND BELOW (07) - HYDRAULICS

1

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

3шт.

2

VALVE, header lift, refer to this group under header lift valve

1шт.

3

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8 37 deg hyd flared

2шт.

4

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

3шт.

5

9411105

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 45 deg hyd 37 deg flared

2шт.

6

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 tube

9шт.

7

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg flared

2шт.

8

548745R1

HYDRAULIC HOSE,0.38" ID x 12.00", SAE 100R1

0.38" ID x 12.00", Reel Lift Unloader Swing Valve

2шт.

9

574230R91

HOSE ASSY.

HOSE ASSY, header lift, 29 in. 736.6 mm

1шт.

10

1304803C1

TUBE ASSY.

TUBE ASSY, header lift cylinder

1шт.

11

144140C1

HOSE,9.53mm ID x 787.4mm L, SAE 100R1

ASSY, header lift cylinder, replaces 587582R91

1шт.

12

1310709C1

HOSE

ASSY, header lift cylinder, 45 in., 1143 mm

1шт.

13

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg hyd tube 90 deg

2шт.

14

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSY, header lift, refer to this group under header lift cylinder and to CYL-1 section A

1шт.

14

127779C94R

REMAN-HYD CYLINDER

1470 INTERNATIONAL HARVESTER HILLSIDE COMBINE, S.N. 10000 AND BELOW, Assy, header lift

1шт.

14

127779C94C

CORE-HYD CYLINDER

Return Number

1шт.

224718C92

SEAL KIT

KIT, cylinder service

1шт.

15

244713R1

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP, hose

2шт.

16

HOSE, feeder clutch and unloader swing valve return, use 12.5 in. of 3/8 ID hyd hose from 25 ft roll marked S118400

1шт.

17

1304086C1

HYD TUBE

TUBE ASSY, foot-n-inch return

1шт.

18

939480R91

HOSE

ASSY, unloader swing valve, 20 in., 508.0 mm

2шт.

19

196751C1

UNLOADING TUBE

TUBE ASSY, unloader tube swing lower

1шт.

20

196751C1

UNLOADING TUBE

TUBE ASSY, unloader tube swing upper, replaces 196799C1

1шт.

21

9403291

BHD LOCK NUT,Blkhd, 7/16"-20

NUT, 1/4 znd bulkhead union

2шт.

22

9403252

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

UNION, 1/4 znd bulkhead

2шт.

23

195604C1

HOSE ASSY.

HOSE ASSY, unloader swing cylinder, 15 in., 381.0 mm

2шт.

24

196800C1

HYD TUBE

TUBE ASSY, unloader swing cylinder

1шт.

25

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

7/16-20 37 deg hyd tube

2шт.

26

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

2шт.

27

113960C93

CYLINDER ASSY.,Double Acting, 19.05mm Rod, 381mm Stroke

CYLINDER ASSY, unloader swing, for service parts refer to CYL-1 section B

1шт.

1304776C1

SEAL KIT

cylinder service

1шт.

22754R1

CLEVIS PIN,5/8" x 1.844"

PIN, CLEVIS, 5/8" x 1.844"

1шт.

28196R1

SPLIT PIN/SAFETY PIN

PIN, 5/8 x 2.250 clevis

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

28

178036C1

CONNECTOR, ELEC

CONNECTOR, unloader swing return

1шт.

29

VALVE, unloader swing, refer to this group under unloader swing valve

1шт.

30

9410358

PLUG

9/16

1шт.

31

187562C1

QUICK MALE COUPLING

COUPLING ASSY, reel lift hose self-sealing male

1шт.

32

196752C1

HYD TUBE

TUBE ASSY, reel lift

1шт.

33

1304936C1

HYD TUBE

TUBE ASSY, header lift upper

1шт.

34

9403373

CAP,37 Degree, 7/8"-14

5/8 C-Z hyd flared tube

1шт.

35

381173R91

HOSE,12.7mm ID x 209.55mm L, SAE 100R1

ASSY, header lift pressure

2шт.

36

67114C1

ELBOW

UNION, 7/8-14 x 3/4 45 deg reducer

1шт.

37

HOSE, header lift return, use 15 in. of 3/4 ID hose from 25 ft. roll marked 180720C2

1шт.

38

196747C1

HYD TUBE

TUBE ASSY, header lift pressure

1шт.

39

196744C1

HYD TUBE

TUBE ASSY, header lift return front

1шт.

40

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, return hose

4шт.

41

196743C1

TUBE ASSY.

TUBE ASSY, header lift return rear

1шт.

42

HOSE, header lift return, use 18 in. of 3/4 ID hose from 25 ft. roll marked 180720C2

1шт.

43

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube class 6, use w/187746C91 pump

1шт.

44

180182C1

FITTING

CONNECTOR, 1-5/16-12 x 1, use w/187746C91 pump

1шт.

45

187618C2

HOSE

header lift suction, 17 in., 431.8 mm

1шт.

46

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP, header lift suction

2шт.

47

PUMP ASSY, auxiliary, refer to this group under auxiliary hydraulic pump

1шт.
