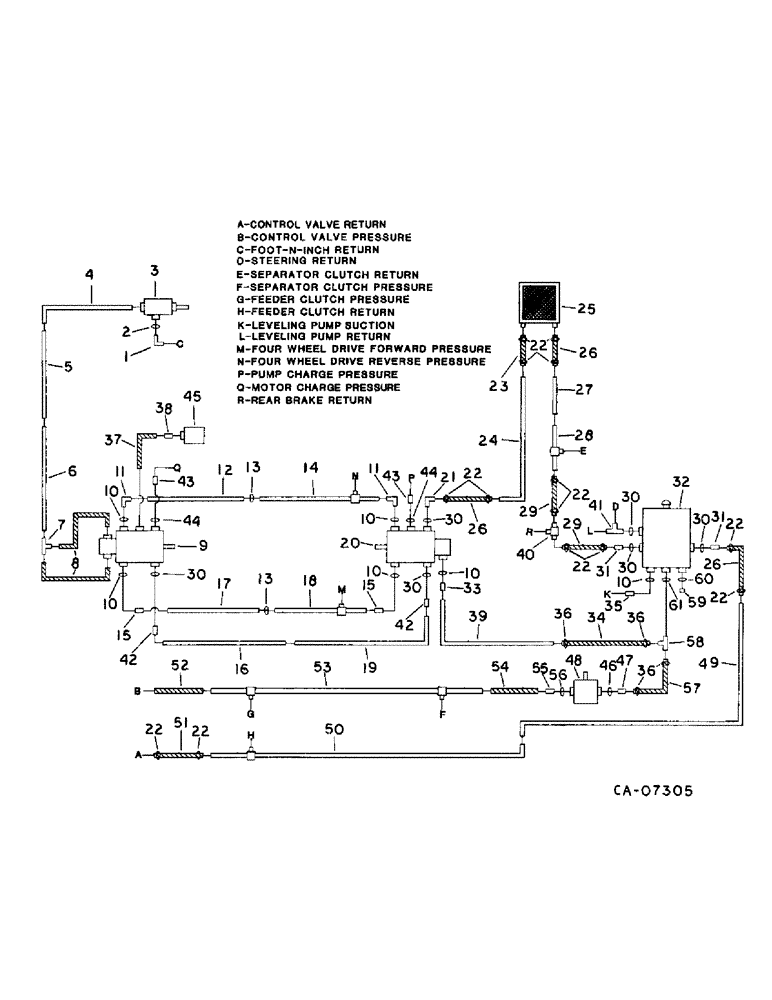

Запчасти Case IH 1470 (10-05) - HYDRAULICS, HYDRAULIC DIAGRAM, HYDROSTATIC MOTOR AND PUMP SYSTEM, S.N. 10001 AND ABOVE (07) - HYDRAULICS

1

164596C1

ELBOW

9/16-18 37 deg flared 90 deg

1шт.

2

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube, class 6

1шт.

3

VALVE ASSY, foot-n-inch, refer to this group under foot-n-inch valve

1шт.

4

187730C1

HYD TUBE

TUBE ASSY, foot-n-inch upper

1шт.

5

1304077C1

HYD TUBE

TUBE ASSY, foot-n-inch center

1шт.

6

1304918C1

HYD TUBE

TUBE ASSY, foot-n-inch lower

1шт.

7

9402979

TEE,7/16"-20, 37 Degree

1/4 C-Z hyd flared three way

1шт.

8

175760C1

HOSE ASSY.

HOSE ASSY, foot-n-inch, 10 in., 254.0 mm

2шт.

9

MOTOR ASSY, hydrostatic, refer to this group under hydrostatic motor, 2 speed

1шт.

10

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 in. OD

6шт.

11

595408R1

90 ELBOW

1-5/16-12 x 1 in. OD 90 deg

2шт.

12

1301351C2

TUBE

ASSY, drive reverse lower pressure

1шт.

165722C1

SLEEVE

tube nut rubber

1шт.

20153R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 1-1/2 type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

13

343906R1

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1-5/16 x 1-9/16 x 1/8

2шт.

14

1301423C2

TUBE

ASSY, drive reverse upper pressure

1шт.

165722C1

SLEEVE

tube nut rubber

1шт.

20153R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 1-1/2 type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

15

163915C1

FITTING

CONNECTOR, 1-5/16-12 37 deg

2шт.

16

1304917C1

HYD TUBE

TUBE ASSY, hydrostatic bleed lower

1шт.

17

1301352C2

TUBE

ASSY, drive forward lower pressure

1шт.

165722C1

SLEEVE

tube nut rubber

1шт.

20153R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 1-1/2 type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

18

1301422C2

TUBE

ASSY, drive forward upper pressure

1шт.

165722C1

SLEEVE

tube nut rubber

2шт.

20153R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 1-1/2 type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

19

1304937C1

HYD TUBE

TUBE ASSY, hydrostatic bleed upper

1шт.

20

PUMP, hydrostatic, refer to this group under hydrostatic pump

1шт.

21

387006R91

ELBOW

1-1/16-12 x 3/4 OD

1шт.

22

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, hose

18шт.

23

HOSE, pump to oil cooler, use 18 in. of 5/8 ID hose from 25 ft. roll marked S118576

1шт.

24

183831C1

HYD TUBE

TUBE ASSY, pump to oil cooler

1шт.

25

OIL COOLER, refer to this group under oil cooler, 131041C92

1шт.

26

HOSE, pump to oil cooler, oil cooler to reservoir and header lift return, use 18 in. of 3/4 ID hose from 25 ft. roll marked 180720C2

1шт.

27

183830C1

HYD TUBE

TUBE ASSY, reservoir to oil cooler

1шт.

28

196762C1

HYD TUBE

TUBE ASSY, reservoir to oil cooler

1шт.

29

HOSE, reservoir to oil cooler, use 18 in. of 3/4 ID hose from 25 ft. roll marked 180720C2

1шт.

30

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/8 in. OD

6шт.

31

470420R11

FITTING

return and cooler

2шт.

32

RESERVOIR, LH hydraulic oil, refer to this group under hydraulic oil reservoir, LH side

1шт.

33

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR, 1 C-Z hyd fld short

1шт.

34

183601C1

HOSE,25.4 mm ID x 355.60 mm, SAE 100R4 CLASS 4, SAE 100R3 CLASS 5

charge suction, 14 in., 355.9 mm

1шт.

35

180182C1

FITTING

1 in. port pump suction

1шт.

36

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP, header lift suction hose

4шт.

37

1304984C1

HOSE ASSY.,0.25" ID x 24.00", SAE 100R2

HOSE ASSY, , Type A, Pressure Switch to Motor 0.25" ID x 24.00", SAE 100R2

1шт.

38

1304974C1

SUPPORT

CONNECTOR

1шт.

39

183593C1

HYD TUBE

TUBE ASSY, charge suction

1шт.

40

196709C1

TEE

rear brake return

1шт.

41

172059C1

TEE

steering and leveling return

1шт.

42

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4 C-Z hyd fld short swivel

2шт.

43

394955R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR, 7/16-20 x 9/16-18 37 deg

2шт.

44

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

2шт.

45

SWITCH ASSY, front motor pressure, refer to group 8 under wiring diagram, 4 wheel drive and leveling

1шт.

46

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube class 6

1шт.

47

180182C1

FITTING

1 in.

1шт.

48

PUMP ASSY, hydraulic, refer to this group under auxiliary hydraulic pump

1шт.

49

196743C1

TUBE ASSY.

TUBE ASSY, header lift return rear

1шт.

50

196744C1

HYD TUBE

TUBE ASSY, header lift return front

1шт.

51

HOSE, header lift return, use 15 in. of 3/4 ID hose from 25 ft. roll marked 180720C2

1шт.

52

156436H1

HYDRAULIC HOSE,0.50" ID x 20.00", SAE 100R1 Class 7

Header Lift Pressure 0.50" ID x 20.00", SAE 100R1 Class 7

1шт.

53

196747C1

HYD TUBE

TUBE ASSY, header lift pressure

1шт.

54

381173R91

HOSE,12.7mm ID x 209.55mm L, SAE 100R1

ASSY, header lift pressure

1шт.

55

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 5/8 C-Z hyd fld short

1шт.

56

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

57

1310703C1

HOSE

header lift suction, 13 in., 330.2 mm

1шт.

58

1301506C1

TEE

1-7/8-12 x 1.0 beaded

1шт.

59

9410359

PLUG

1/2 C-Z str thd o-ring boss

1шт.

60

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

61

301016R1

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1-1/2 in. OD

1шт.
