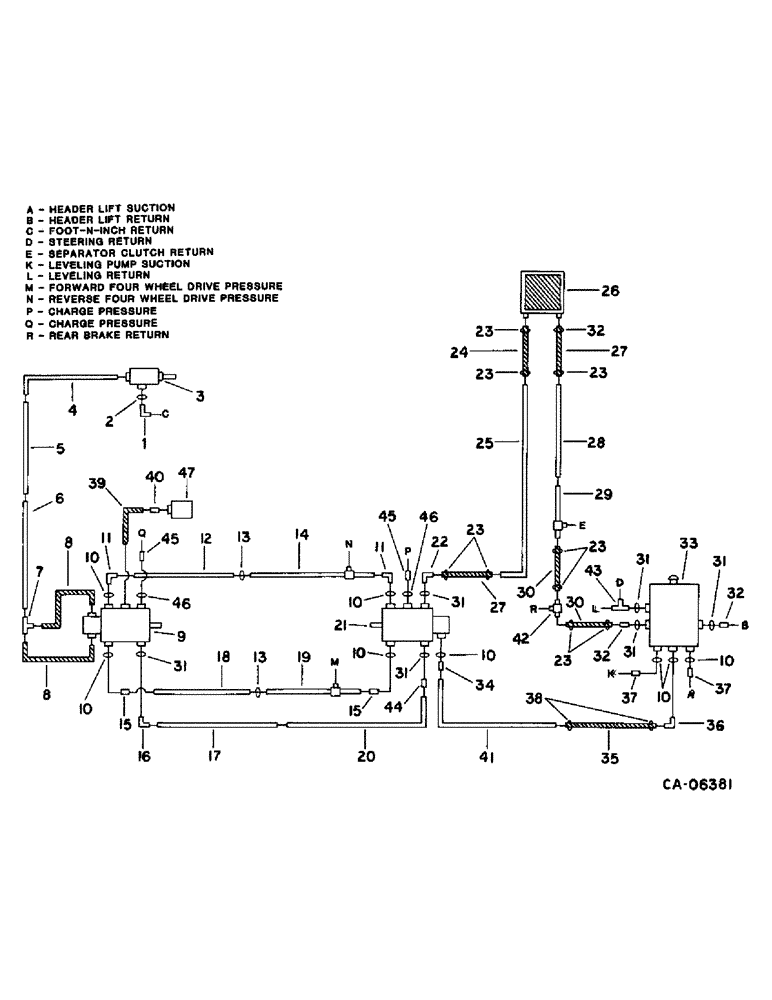

Запчасти Case IH 1470 (10-03) - HYDRAULICS, HYDRAULIC DIAGRAM, HYDROSTATIC MOTOR, PUMP SYSTEM, S.N. 10000 AND BELOW (07) - HYDRAULICS

1

164596C1

ELBOW

9/16-18 37 deg flared 90 deg

1шт.

2

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

1шт.

3

VALVE, foot-n-inch, refer to this group under foot-n-inch valve

1шт.

4

187730C1

HYD TUBE

TUBE ASSY, foot-n-inch upper

1шт.

5

1304077C1

HYD TUBE

TUBE ASSY, foot-n-inch center

1шт.

6

1304918C1

HYD TUBE

TUBE ASSY, foot-n-inch lower

1шт.

7

9402979

TEE,7/16"-20, 37 Degree

7/16-20 37 deg flared tube

1шт.

8

175760C1

HOSE ASSY.

HOSE ASSY, foot-n-inch

2шт.

9

MOTOR, hydrostatic, refer to this group under hydrostatic motor, 2 speed

1шт.

10

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

for 1 in. OD tube

8шт.

11

595408R1

90 ELBOW

1-5/16-12 x 1 in. OD tube end 90 deg

2шт.

12

1301351C2

TUBE

ASSY, hydrostatic drive reverse lower pressure

1шт.

13

343906R1

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1-5/16 x 1-9/16 x 1/8

2шт.

14

1301423C2

TUBE

ASSY, hydrostatic drive reverse upper pressure

1шт.

15

163915C1

FITTING

CONNECTOR, 1-5/16-12 37 deg hyd flared

2шт.

16

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

1-1/16-12 37 deg hyd flared

1шт.

17

1304971C1

TUBE ASSY, hydrostatic bleed lower

1шт.

18

1301352C2

TUBE

ASSY, hydrostatic drive forward lower pressure

1шт.

19

1301422C2

TUBE

ASSY, hydrostatic drive forward upper pressure

1шт.

20

1304937C1

HYD TUBE

TUBE ASSY, hydrostatic bleed upper

1шт.

21

PUMP, hydrostatic, refer to this group under hydrostatic pump

1шт.

22

387006R91

ELBOW

1-1/16-12 x 3/4 OD tube end

1шт.

23

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, hose

10шт.

24

HOSE, hydrostatic pump to oil cooler, use 18 in. of 5/8 ID hyd hose from 25 ft. roll marked 180719C1

1шт.

25

183831C1

HYD TUBE

TUBE ASSY, hyd pump to oil cooler

1шт.

26

OIL COOLER, refer to this group under oil cooler

1шт.

27

HOSE, pump to oil cooler and oil cooler to reservoir, use 18 in. of 3/4 ID hyd hose from 25 ft. roll marked 180720C1

2шт.

28

183830C1

HYD TUBE

TUBE ASSY, reservoir to oil cooler

1шт.

29

196762C1

HYD TUBE

TUBE ASSY, reservoir to oil cooler

1шт.

30

HOSE, reservoir to oil cooler, use 18 in. 3/4 ID hyd hose from 25 ft. roll marked 180720C1

2шт.

31

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/8 in. OD

6шт.

32

470420R11

FITTING

return and cooler

2шт.

33

RESERVOIR, LH hydraulic, refer to this group under hydraulic reservoir

1шт.

34

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR, 1-5/16-12 37 deg hyd flared

1шт.

35

183601C1

HOSE,25.4 mm ID x 355.60 mm, SAE 100R4 CLASS 4, SAE 100R3 CLASS 5

ELBOW, charge suction

1шт.

36

179379C1

ELBOW

charge suction

1шт.

37

180182C1

FITTING

1 in. port pump suction

2шт.

38

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP. header lift suction hose

2шт.

39

1304984C1

HOSE ASSY.,0.25" ID x 24.00", SAE 100R2

HOSE ASSY, , Type A, Pressure Switch to Motor 0.25" ID x 24.00", SAE 100R2

1шт.

40

1304974C1

SUPPORT

CONNECTOR

1шт.

41

183593C1

HYD TUBE

TUBE ASSY, charge suction

1шт.

42

196709C1

TEE

rear brake return

1шт.

43

172059C1

TEE

steering and leveling return

1шт.

44

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

UNION, 1-1/16-12 37 deg swivel

1шт.

45

394955R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR, 7/16-20 x 9/16-18 37 deg

2шт.

46

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

2шт.

47

SWITCH ASSY, front motor pressure, refer to group 8 under wiring diagram, 4 wheel drive and leveling

1шт.

165722C1

SLEEVE

rubber, not illustrated

5шт.
