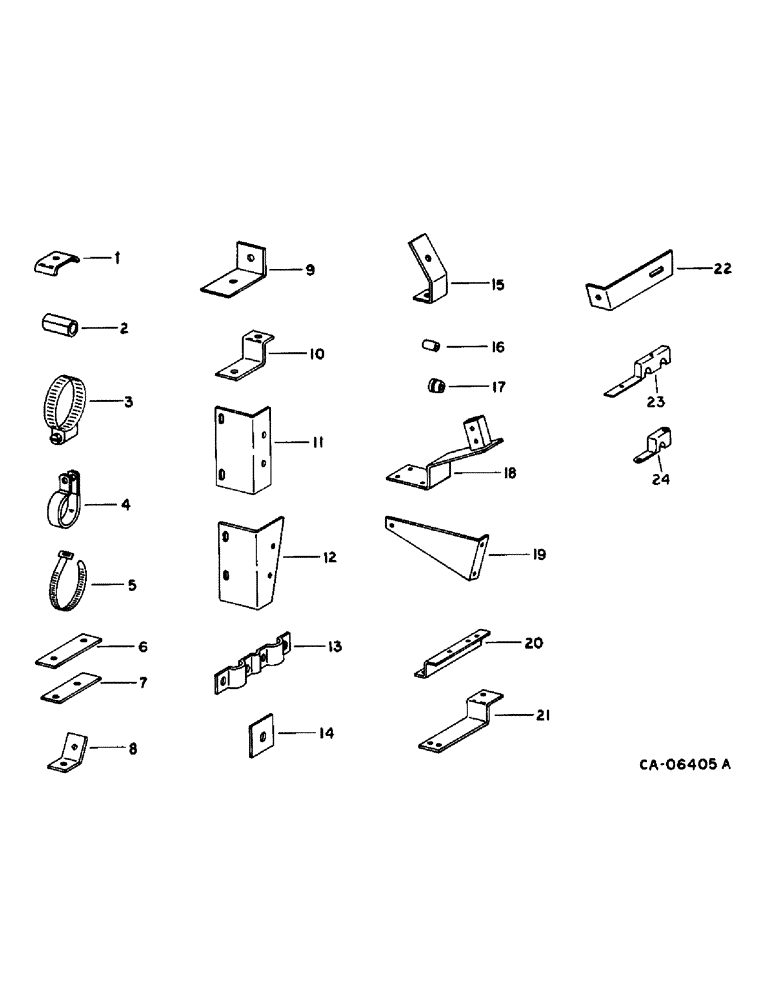

Запчасти Case IH 1470 (10-01) - HYDRAULICS, HYDRAULIC CLAMPS, STRIPS AND SUPPORTS (07) - HYDRAULICS

1

165601C1

CLAMP

.406 dia. hole, for use with, automatic header lower, (3) pressure, (2) four wheel drive, (6) header lift, (7) leveling pump, (5) pump to cooler, (2) reef drive, (3) reservoir to cooler, reservoir drain, reservoir to relief valve, (6) steering

1шт.

1

165602C1

CLAMP

.344 dia. hole, for use with, (7) feeder clutch and steering tubes, (2) foot-n-inch, (2) reel lift, unloader swing

1шт.

1

1304932C1

CLAMP

for use with (3) header drive, manifold

1шт.

2

163489C1

STRIP

for 1/4 in. OD tube, for use with, (2) foot-n-inch, (11) leveling pump, (5) unloader swing

1шт.

2

163490C1

RUBBER INSULATOR

STRIP, 3/8 in. OD tube, for use with, (14) feeder clutch and steering, (4) rear brake, (3) reel lift, (3) steering

1шт.

2

163491C1

RUBBER INSULATOR

STRIP, for 1/2 in. OD tube, for use with, automatic header control, case drain, (10) leveling, (5) rear brake, (14) steering header and (4) reel drive

1шт.

2

163492C1

RUBBER INSULATOR

STRIP, for 5/8 in. OD tube, for use with automatic header control lower, (16) brakes, (5) pressure, (6) header lift, (3) pump to cooler reel drive, reel drive, reservoir to cooler, reservoir drain, steering

1шт.

2

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

for 3/4 in. OD tube, for use with brakes, (5) four wheel drive, (3) header lift, (2) hydrostatic bleed tube, (2) leveling pump, manifold, pump to cooler, (2) reservoir to cooler, reservoir to relief valve, (2) steering

1шт.

2

187935C1

STRIP

hyd tube, for use with (8) four wheel drive, (6) header drive, (4) hydrostatic tube, manifold

1шт.

2

183827C1

STRIP

hyd tube, for use with (8) four wheel drive, (6) header drive, (4) hydrostatic tube, manifold

1шт.

2

183827C1

STRIP

5/8 hyd tube, for use with 4 wheel drive

8шт.

3

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

CLAMP, no. 32 unloader swing

1шт.

4

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

steering, insulated

1шт.

4

515-2863

CLAMP,1/4", 3/8" Bolt

CLIP, brake, uninsulated

16шт.

4

129083R1

CLAMP

reservoir to relief valve, insulated

1шт.

4

573674R1

CLIP

foot-n-inch, uninsulated

3шт.

4

299407C1

CLAMP

steering, insulated

7шт.

4

589980R2

CLIP

CLAMP, uninsulated, for use with (2) 4 wheel drive, (4) rear brake

1шт.

4

892033C1

CLAMP

insulated, for use with header lift, (2) leveling pump

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

5

702093C1

CABLE TIE

STRAP, for use with feeder clutch, separator clutch

1шт.

5

291207C1

CLAMP

STRAP, steering pump hose

1шт.

5

306132C1

CABLE TIE,14.5" L

STRAP, for use with (4) four wheel drive, (2) steering

1шт.

5

1317166C1

STRAP

tie, steering hose

1шт.

6

187509C1

BAR

header lift and steering return

1шт.

6

187510C2

BAR

header lift tubes

1шт.

6

188169C1

BAR

brake tubes, RH

1шт.

7

196868C1

BAR

for use with brake, reel drive, reservoir to cooler, steering return

1шт.

7

195703C1

BAR

header drive pressure, Serial Range: reservoir-manifold

1шт.

8

178960C1

BRACKET

ANGLE, steering rearward tubes

1шт.

9

176394C1

ANGLE

header lift and steering return

1шт.

9

187833C1

SUPPORT

ANGLE, steering, leveling

3шт.

9

187834C1

ANGLE

BRACKET, steering pressure

1шт.

9

365265C1

EXTENSION

BRACKET, steering

1шт.

9

1310796C1

BRACKET

ANGLE, leveling

2шт.

9

183899C1

ANGLE

steering

2шт.

10

196517C1

SUPPORT TUBE

SUPPORT, for use with feeder clutch, (2) header lift, hydrostatic pump to cooler, reservoir to relief valve, (AR) steering

1шт.

10

1304622C1

SUPPORT

leveling pump suction

1шт.

10

1304633C1

SUPPORT

CLAMP, for use with (2) brake and case drain tubes, (2) rear axle tubes

1шт.

10

1304634C1

SUPPORT

BRACKET, for use with (2) four wheel drive tubes, (2) rear axle tubes

1шт.

10

1314136C1

SUPPORT

BRACKET, reel drive tube support, also required when mounting rock trap, Serial Range: -12000

1шт.

11

187936C2

BRACKET

ANGLE, hydrostatic tube support rear

1шт.

12

187937C2

BRACKET

ANGLE, hydrostatic tube support front

1шт.

13

187934C1

CLAMP

(4) hydrostatic tube, (2) four wheel drive

1шт.

14

156715C1

BAR

tube clamp

1шт.

14

573186R1

PLATE

BAR, tube clamp, for use with automatic header control

1шт.

14

198462C1

PLATE

BAR, steering, leveling pump

3шт.

15

183829C1

BRACKET

hyd tube, reservoir to cooler tube

1шт.

16

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

.407 x .625 x 1.0

8шт.

17

167955C2

SEAL

GROMMET, steering hose

2шт.

17

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

oil cooler hose

2шт.

18

1304668C2

SUPPORT TUBE

BRACKET, rear axle steering

1шт.

19

1304623C1

SUPPORT

BRACKET, four wheel drive

1шт.

20

1304493C1

SUPPORT

BRACKET, 4 wheel drive

2шт.

21

1304664C1

SUPPORT TUBE,5.25, 2, 1.75" Length

SUPPORT, leveling pump suction

1шт.

22

1304973C2

SUPPORT

BRACKET, header lift

1шт.

22

196872C1

ANGLE

BRACKET, steering

1шт.

23

121714C1

CLAMP

header lift

3шт.

23

183824C1

CLAMP

unloader swing

2шт.

23

183825C1

CLAMP

feeder clutch

2шт.

23

183826C1

CLAMP

, Serial Range: pump-cooler

2шт.

23

1301178C1

CLAMP

steering

5шт.

24

183820C1

CLAMP

for use with foot-n-inch

2шт.

24

183821C1

CLAMP

for use with (2) foot-n-inch, header lift

1шт.

24

183822C1

CLAMP

for use with (2) foot-n-inch, (3) steering return

1шт.

24

183823C1

CLAMP

for use with, Serial Range: cooler-reservoir

1шт.
