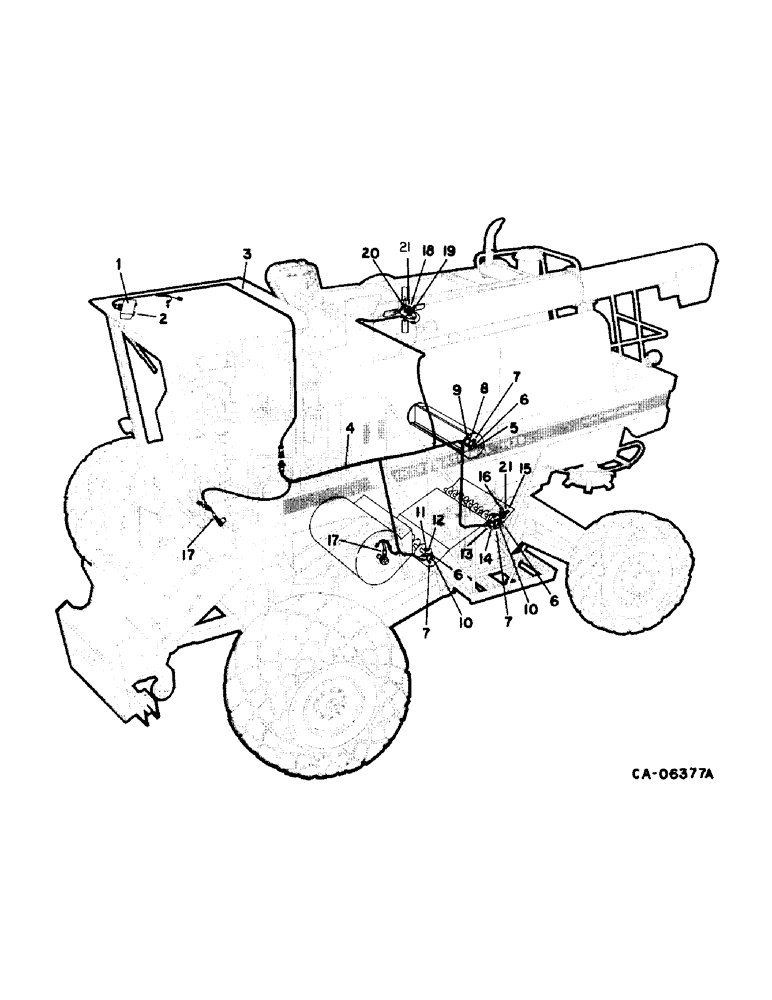

Запчасти Case IH 1470 (08-31) - ELECTRICAL, SHAFT SPEED MONITOR CONTROL (06) - ELECTRICAL

1

1265667C1

INDICATOR

PANEL ASSY, shaft speed monitor, renewed 7 channel, replaces 1301266C2

1шт.

2

178876C1

SUPPRESSOR

audible alarm

1шт.

3

1301064C2

HARNESS

ASSY, cab section

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

86511922

SCREW,Pan, #10 - 24 x 3/4"

no. 10 x 3/4 znp P/HDCR mach

1шт.

4

1301065C1

HARNESS

ASSY, machine section

1шт.

5

178802C1

COLLAR CLAMP

COLLAR, beater

1шт.

6

178800C1

CLAMP

ASSY, sensor (1) for beater, (1) for clean grain elevator, (1) for tailings elevator

3шт.

6

178799C1

CLAMP,44.45mm - 63.5mm

MAGNET ASSY, straw chopper

1шт.

7

196984C1

SWITCH

ASSY, shaft speed monitor (1) for beater, (1) for clean grain elevator, (1) for tailings elevator

3шт.

7

1301577C1

SWITCH

ASSY, straw chopper

1шт.

8

187629C1

SUPPORT

beater shaft sensor

1шт.

9

187630C1

SUPPORT

beater shaft

1шт.

23896R1

DOWEL,5/8" x 3"

PIN, 5/8 x 3.000 pln hdn dowel

1шт.

10

178801C1

COLLAR

clean grain and tailings sensor

2шт.

11

178794C1

BRACKET

clean grain cover

1шт.

12

187642C2

COVER

ASSY, clean grain auger sensor

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

13

187615C2

BRACKET

tailings sensor support

1шт.

14

187616C1

SUPPORT

tailings sensor cover

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

15

187998C1

SUPPORT

shoe sensor

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 crg type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

16

187996C1

MAGNET

ASSY, shoe

1шт.

17

GAGE, reluctance pick-up, refer to group 21 under rotor, refer to group 24 under cleaning fan and shields

1шт.

18

1301561C1

SUPPORT

rotary screen sensor

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

179454C1

RUBBER WASHER

rubber

1шт.

19

1301560C1

SUPPORT

ANGLE, rotary screen sensor adjustment

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

20

196987C1

MAGNET

ASSY, rotary screen

1шт.

125932

SELF-TAP SCREW,Sl Pan Hd, #8 x 1/2"

SCREW, SELF TAPPING, Slotted Pan Hd, #8 x 1/2"

1шт.

21

187997C1

SWITCH

ASSY, shaft speed monitor (1) for rotary air screen, (1) for shoe

2шт.
