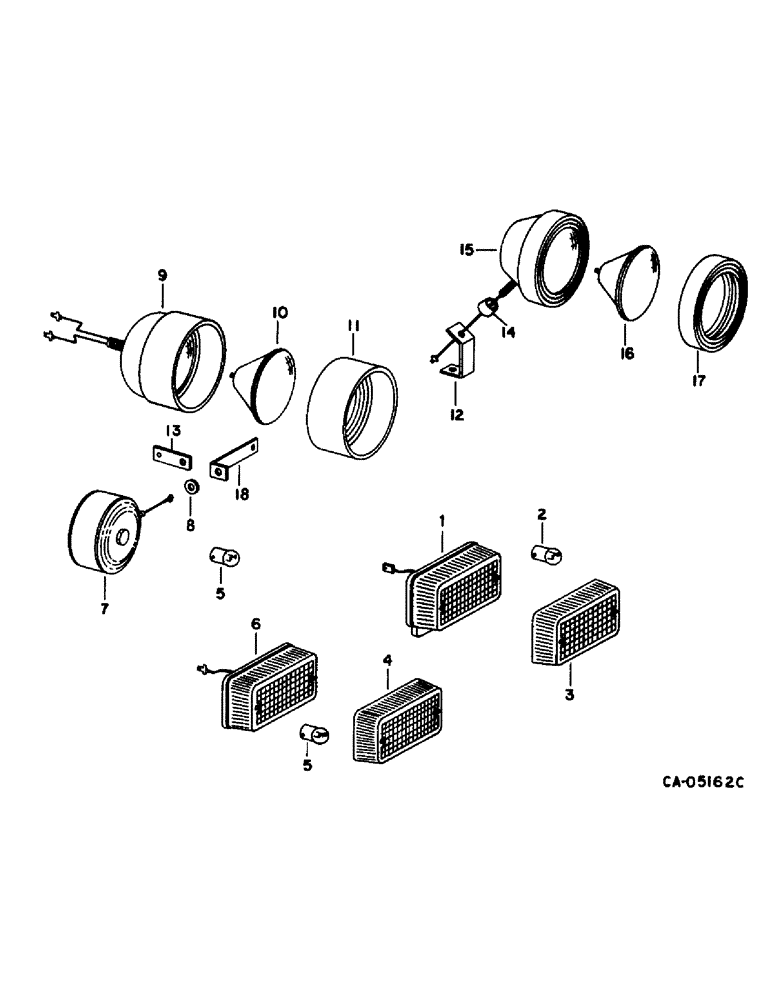

Запчасти Case IH 1470 (08-29) - ELECTRICAL, LIGHTS AND MOUNTING (06) - ELECTRICAL

1

216044C92

LAMP

TAIL LAMP, includes ref. nos. 2 and 3

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

1шт.

28151R1

SCREW

#10 x 2-1/4 phc P/HDCR mach

1шт.

2

9417867

BULB,C6, #1157, 12.8V

no. 1157

2шт.

3

216045C1

LENS

tail lamp

2шт.

4

130883C1

LENS

warning lamp

2шт.

5

9417866

BULB,C6, #1156, 12.8V

no. 1156

1шт.

6

130882C91

LAMP

LAMP ASSY, rear warning, includes ref. nos. 4 and 5

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 flange lock

1шт.

28151R1

SCREW

#10 x 2-1/4 phc P/HDCR mach

1шт.

7

196978C91

LIGHT

LAMP ASSY, flasher front, includes ref no. 5

2шт.

120371

NUT,1/2"-20, G5

1шт.

8

394262R1

WASHER

rubber

2шт.

9

388945R91

HEADLIGHT

LAMP ASSY, flood and tail, includes ref. nos. 10 and 11, replaces 175569C91 and 1310871C91

2шт.

10

373662R91

LAMP

UNIT, no. 4411, or

2шт.

10

131508C1

LAMP BASE

LAMP UNIT, no. H7610

2шт.

11

175570C1

SEAL RETAINER

lamp, use w/1755699C91 lamp assy

2шт.

11

676078R1

RETAINER

lamp, used with lamp 388945R91

2шт.

11

1310872C1

SEAL

lamp, use w/1310871C91 lamp assy

2шт.

12

561915R1

BRACKET

lamp mounting

8шт.

28015R1

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 h/whd tap

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

13

(Not used this application)

1шт.

14

1267358C2

SEAT

lamp mounting

8шт.

15

391005R91

HEADLIGHT

LAMP ASSY, includes ref. nos. 16 & 17, (2) feeder pivot, (1) grain tank, (1) LH headlight, (1) LH rear nightlight, (1) RH front nightlight, (1) RH headlight, (1) unloader

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

530029R91

CONNECTOR, ELEC

CONNECTOR ASSY, head light, for use with hobbs light assy

1шт.

16

373662R91

LAMP

UNIT, no. 4411, or

1шт.

16

131508C1

LAMP BASE

LAMP UNIT, no. H7610

1шт.

17

676078R1

RETAINER

light, for use with Hobbs light assy

1шт.

17

1252609C1

RETAINER

light, for use with Mid-West light assy

1шт.

18

183720C2

BAR

SUPPORT, RH front flasher mounting

1шт.
