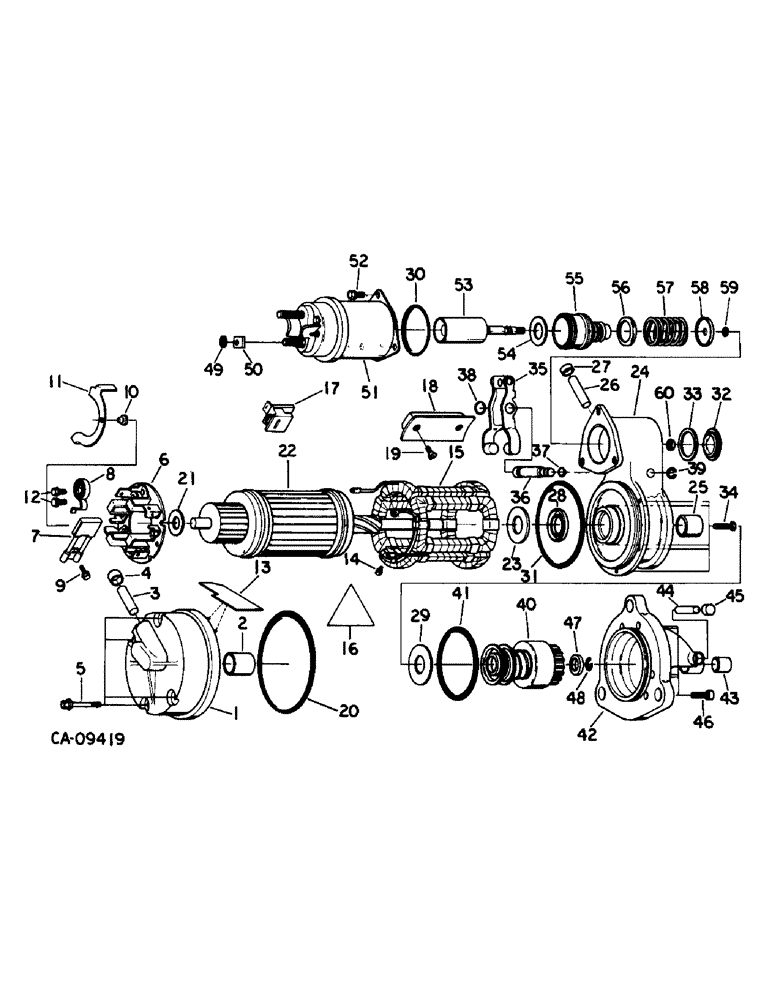

Запчасти Case IH 1470 (08-27) - ELECTRICAL, CRANKING MOTOR, DELCO REMY, HEAVY DUTY SEALED (06) - ELECTRICAL

1990321

STARTING MOTOR

MOTOR ASSY, cranking, 245153C91, replaces 1113444

1шт.

104211A1GV

STARTER MOTOR

Value

1шт.

104211A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104211A1C

CORE-STARTER

Return Number

1шт.

189295

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

BOLT, 3/8 x 4-1/2 znd type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

180358

LOCK WASHER,Int Tooth, 3/8", Hvy

WASHER, 3/8 hvy-int tooth lock

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

1985315

FRAME

FRAME, commutator end, consists of

1шт.

1

HOUSING (NSS)

1шт.

2

1955994

BUSHING

BUSHING

1шт.

3

1985247

WICK

WICK-OIL RESERVOIR

1шт.

4

1985246

CUP

CUP-OIL RESERVOIR

1шт.

5

1985333

SCREW

SCREW & WASHER, commutator frame

4шт.

1985303

PLATE

BRUSH PLATE ASSY, consist of

1шт.

6

PLATE (NSS)

1шт.

7

1852889

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

8

1985314

SPRING

SPRING, brush

4шт.

9

1985712

SCREW

SCREW, brush att

4шт.

10

1985713

INSULATOR

INSULATOR, conductor

1шт.

11

1985714

CABLE

CONDUCTOR

1шт.

12

453661

SCREW

SCREW, brush plate

2шт.

13

1985248

INSULATOR

INSULATOR, brush plate

2шт.

14

1968998

SCREW

SCREW, field coil lead to brush holder

2шт.

15

1985324

COIL

FIELD COIL ASSY (4 coils)

1шт.

16

1914873

INSULATOR

INSULATOR, field coil

2шт.

17

1985318

GROMMET

GROMMET, field coil

1шт.

18

1985319

PLATE

POLE SHOE

4шт.

19

1968396

SCREW

SCREW, pole shoe

8шт.

20

1985320

RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

O-RING, on motor frame

1шт.

21

1985617

WASHER

WASHER, thrust

1шт.

22

1085249

ARMATURE

ARMATURE

1шт.

23

1965947

SPACER

SPACER, between armature & lever hsg

1шт.

1985335

HOUSING

LEVER HOUSING ASSY, consists of

1шт.

24

HOUSING (NSS)

1шт.

25

1985234

BUSHING

BUSHING, lever hsg

1шт.

26

1985247

WICK

WICK, oil reservoir

1шт.

27

1985246

CUP

CUP, oil reservoir

1шт.

28

1937718

SEAL

SEAL, oil

1шт.

29

1985235

WASHER

WASHER, brake

1шт.

30

1985304

O-RING

O-RING, between housing & lever

1шт.

31

1916272

O-RING

O-RING, between lever hsg & frame

1шт.

32

1945356

PLUG

PLUG, inspection, lever hsg

1шт.

33

1964857

GASKET

GASKET, inspection plug, lever hsg.

1шт.

34

1914869

SCREW

SCREW, lever housing

5шт.

35

1985237

LEVER

LEVER ASSY, shift

1шт.

36

1948529

SHAFT

SHAFT, shift lever

1шт.

37

1894642

RING

O-RING, shift lever shaft (3/8 OD)

1шт.

38

1894643

O-RING

O-RING, shift lever shaft (1/2 OD)

1шт.

39

9416374

RING

RING, retaining, shift lever shaft

1шт.

40

1985262

MOTOR, ELECTRIC

DRIVE ASSY, motor

1шт.

41

1851960

O-RING

O-RING, between dr hsg & lever hsg.

1шт.

1986351

HOUSING

HOUSING ASSY, drive end, consists of

1шт.

42

HOUSING (NSS)

1шт.

43

1955994

BUSHING

BUSHING

1шт.

44

1985247

WICK

WICK, oil reservoir

1шт.

45

1985246

CUP

CUP, oil reservoir

1шт.

46

1948537

SCREW

SCREW, drive housing

6шт.

47

1985982

STOP

STOP, pinion

1шт.

48

1986928

RING

RING, retainer, pinion stop

1шт.

49

280136

NUT,3/8"-16, G8

NUT, , Field coil connect to switch 3/8"-16, G8

1шт.

50

1987678

CLIP

CLIP, field coil, Serial Range: connect-switch

1шт.

51

1115589

SOLENOID SWITCH

SWITCH ASSY, solenoid

1шт.

52

1985332

SCREW

SCREW & WASHER, switch

3шт.

53

1985240

PLUNGER

PLUNGER, solenoid

1шт.

54

1948519

WASHER

WASHER, plunger assy

1шт.

55

1985243

BOOT

BOOT, plunger

1шт.

56

1948520

RETAINER

RETAINER, plunger spring

1шт.

57

1948521

SPRING

SPRING, plunger

1шт.

58

1948526

RETAINER

RETAINER, plunger spring

1шт.

59

9416374

RING

RING, retaining, plunger assy

1шт.

60

9412305

NUT

NUT, plunger rod guide adjusting

1шт.
