Запчасти Case IH 1470 (08-23) - ELECTRICAL, ALTERNATOR-GENERATOR, 90 AMPERE MOTOROLA (06) - ELECTRICAL

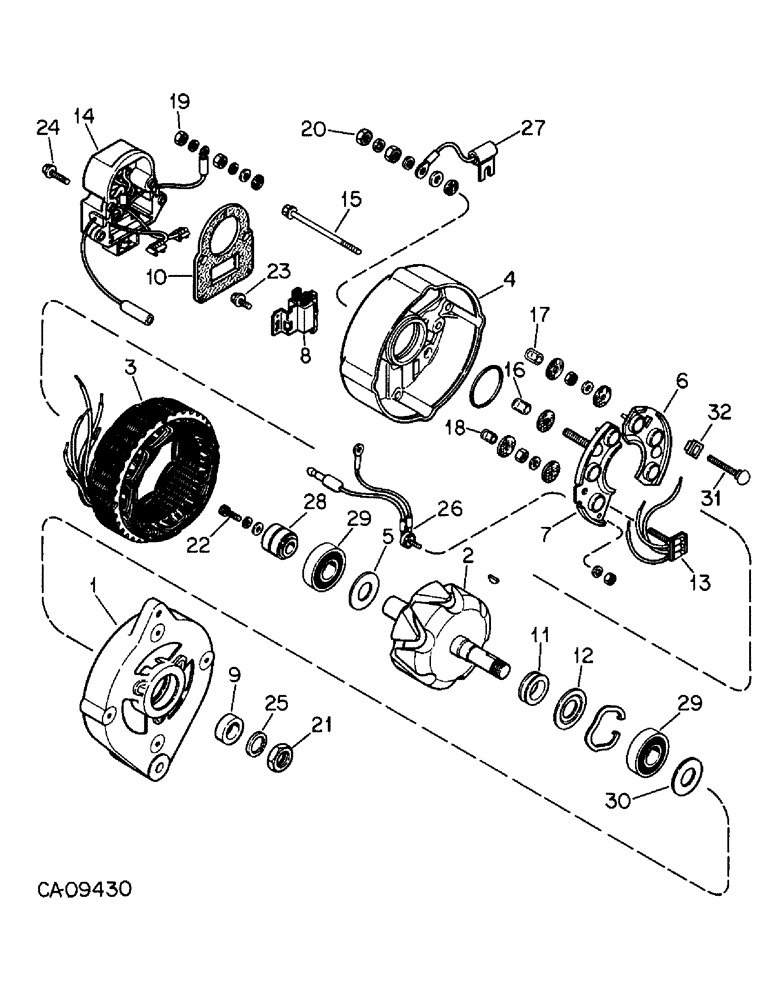

Схема запчастей Case IH 1470 - (08-23) - ELECTRICAL, ALTERNATOR-GENERATOR, 90 AMPERE MOTOROLA (06) - ELECTRICAL

Артикул

Название

Примечание

Количество

245713C92

ALTERNATOR

ALTERNATOR-GENERATOR ASSY, 90 amp, replaces 146466C91

1шт.

87297294

REMAN-ALTERNATOR

Reman for New PN 245713C92

1шт.

87297295

CORE-ALTERNATOR

Return Part Number

1шт.

146466C91

ALTERNATOR

Alternator, 12 VOLT, 80 AMP

1шт.

104023A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 80 AMP Alternator

1шт.

104023A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 80 AMP Alternator

1шт.

146472C91

GENERATOR

ALTERNATOR-GENERATOR, Niefoff, metric, 100 ampere

1шт.

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator

1шт.

104024A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 100 AMP Alternator

1шт.

125849A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 135 ampere

1шт.

125849A1C

CORE-ALTERNATOR

Return Part Number

1шт.

125849A1GV

ALTERNATOR

Value, 12 Volt, 100 Amp

1шт.

91448C2

ALTERNATOR

ALTERNATOR N114V-40/110A SEE FZG20075

1шт.

91448C2R

REMAN-ALTERNATOR

Reman for New PN 91448C2

1шт.

91448C2C

CORE-ALTERNATOR

Return Part Number

1шт.

91448C2GV

ALTERNATOR

Value, 14V, 110A

1шт.

1

91533C1

HOUSING

HOUSING, front

1шт.

2

91534C1

ROTOR

ROTOR ASSY

1шт.

3

91535C1

STATOR

STATOR ASSY

1шт.

4

91536C1

HOUSING

HOUSING, rear

1шт.

5

91537C1

RETAINER

RETAINER, rear bearing

1шт.

6

91538C1

RECTIFIER

RECTIFIER, diode negative

1шт.

7

91539C1

RECTIFIER

RECTIFIER, diode positive

1шт.

8

91540C1

BRACKET

BRUSH ASSY

1шт.

9

91541C2

SPACER

SPACER, fan

1шт.

10

91542C1

GASKET

GASKET, cvr

1шт.

11

91543C1

RING

RING -V-

1шт.

91544C1

SPACER

SPACER (not shown)

1шт.

12

91545C1

SEALING RING

SEAL RING

1шт.

13

91546C1

RECTIFIER

RECTIFIER, diode field

1шт.

14

91547C1

REGULATOR

REGULATOR, voltage

1шт.

15

91548C1

BOLT

BOLT, thru

2шт.

91549C1

WASHER

WASHER, 1/4 x 3/4 OD

1шт.

91550C1

SLEEVE

SLEEVE, plastic no. 10 x 19/32

1шт.

450145C1

WASHER

WASHER, 10 x 3/4 OD

1шт.

16

91551C1

INSULATOR

INSULATOR, sleeve 1/4 x 1/2

1шт.

17

91552C1

INSULATOR

INSULATOR, sleeve no. 10 x 1/2

1шт.

18

91553C1

INSULATOR

INSULATOR, .75 x .06 x .265

1шт.

19

91554C1

NUT

NUT, no. 10 x 24 hex cad

1шт.

91555C1

NUT

NUT, no. 10 x 24 hex lock

1шт.

20

91556C1

NUT

NUT, 1/4 hex

1шт.

21

91557C1

NUT

NUT, 5/8 hex

1шт.

91558C1

NUT

NUT, hex

1шт.

91559C1

NUT

NUT, no. 10-32 sq.

1шт.

453284

NUT,#10-32

NUT, no. 10-32 hex

1шт.

22

91561C1

SCREW,Hex, 5/8" - 10 x 32"

SCREW, no. 10-32 x 5/8 hex

1шт.

23

91562C1

SELF-TAP SCREW,Hex, 8"-20 x 1/2"

SCREW, no. 8 x 1/2 hex tapping

1шт.

24

91563C1

SELF-TAP SCREW,8" x 3/4"

SCREW, no. 8 x 3/4 hex tapping

1шт.

91564C1

WASHER

WASHER, no. 10 x 7/16

1шт.

91565C1

WASHER

WASHER, no. 10 x 5/16

1шт.

91566C1

LOCK WASHER

WASHER, lock

1шт.

91567C1

LOCK WASHER

WASHER, 1/4 lock

1шт.

25

91568C1

LOCK WASHER

WASHER, 5/8 lock

1шт.

26

91569C1

SWITCH

SWITCH, thermal

1шт.

27

91574C1

CAPACITOR

CAPACITOR

1шт.

28

463599C1

RING

RING ASSY, slip

1шт.

29

76675C91

BALL BEARING,0.6693" ID x 1.5748" OD x 1.724"

BEARING, front and rear

2шт.

30

452688C1

RETAINER

RETAINER, front bearing

1шт.

31

91935C1

BOLT

BOLT, 10-24 x 2-1/2 carriage

1шт.

32

91936C1

INSULATOR

INSULATOR, molded square

1шт.

91570C1

BRACKET

BRACKET, indentification

1шт.

91571C1

INSULATOR

INSULATOR, armite

1шт.

869707C1

STRAP,368.3mm L

STRAP, nylon

1шт.

91573C1

CONNECTOR, ELEC

CONNECTOR CONNECTOR, sleeve

1шт.

Выбрано товаров: 64
