Запчасти Case IH 1470 (08-22) - ELECTRICAL, ALTERNATOR-GENERATOR, W/INTEGRAL SOLID-STATE (06) - ELECTRICAL

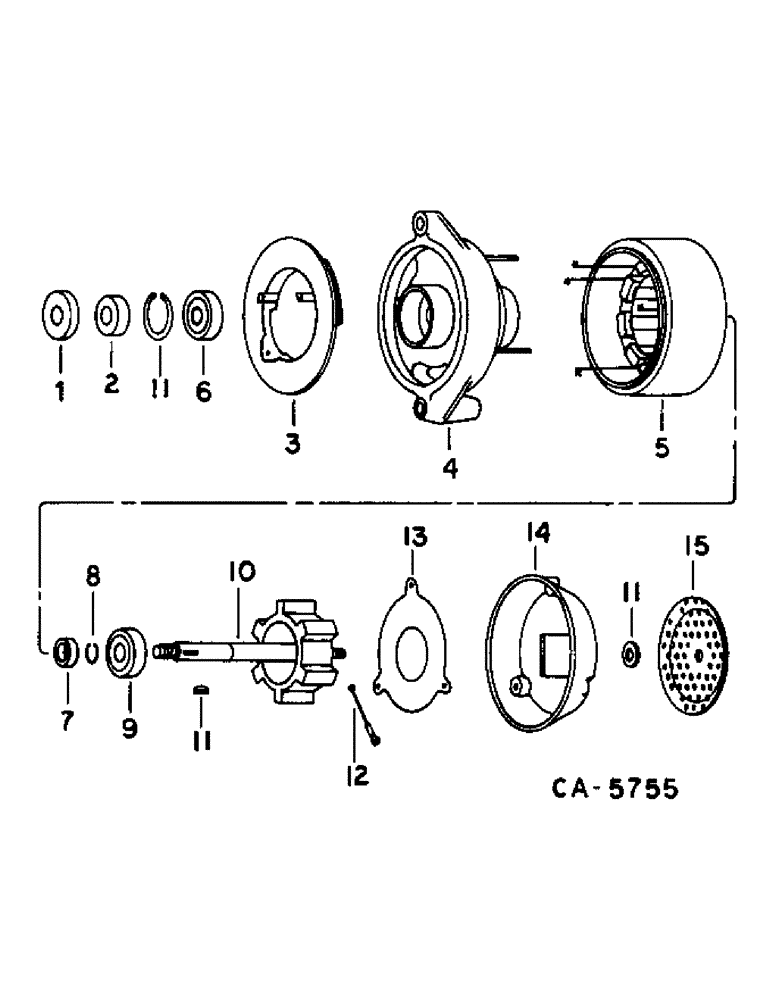

Схема запчастей Case IH 1470 - (08-22) - ELECTRICAL, ALTERNATOR-GENERATOR, W/INTEGRAL SOLID-STATE (06) - ELECTRICAL

Артикул

Название

Примечание

Количество

ALTERNATOR GENERATOR ASSY, 90 ampere, for service replacement of alt-gen 146466C91 furnish alt-gen 245713C91 and package, 91906C91 the following parts are for 146466C91

1шт.

931715R1

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

M10 x 90 pln class 8.8

1шт.

905262R1

NUT,M10 x 1.5, Cl 10

NUT, M10 phc P/T class 10

1шт.

30281R1

NUT,M6, Cl 10

M6 class 10

1шт.

933833R1

LOCK WASHER,M6

1шт.

384396R1

SPADE TERMINAL,Male

TERMINALS, blade Male

1шт.

1

130991C1

CUP WASHER

front spring and bearing cover

1шт.

2

130992C1

SPACER

front

1шт.

3

130994C1

AMPLIFIER ASSY.

AMPLIFIER ASSY, rectifier and heat sink

1шт.

4

130995C2

FRAME ASSY

field winding and end

1шт.

5

130997C2

SHELL

AND STATOR ASSY

1шт.

6

131097C91

BALL BEARING,0.6693" ID x 1.8504" OD x 0.5512"

front

1шт.

7

130998C1

CUP WASHER

retainer cup

1шт.

8

130993C1

RING

retainer

1шт.

9

131098C91

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

rear

1шт.

10

131000C1

ROTOR ASSY.

ROTOR ASSY

1шт.

11

131005C2

KIT

PACKAGE, miscellaneous hardware service

1шт.

12

131003C1

CABLE ASSY.

CABLE ASSY, ground

1шт.

13

131001C1

REGULATOR

ASSY, voltage

1шт.

14

131002C1

COVER

voltage regulator

1шт.

15

131004C1

SCREEN

1шт.

91906C91

KIT

PACKAGE, heavy duty 90 ampere alternator completing, alternator 245713C91 must also be ordered, consists of

1шт.

91884C1

HARNESS

adapter for alternator, 1 wire

1шт.

91904C1

HARNESS

adapter for alternator, 2 wire

1шт.

402314C1

CONNECTION

CONNECTOR

1шт.

30476R1

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

M10 x 100 pln class 8.8

1шт.

30327R1

WASHER,M10 x 21.5 x 2.5, HT

10.8 x 21 x 2.5 mm

1шт.

702093C1

CABLE TIE

STRAP, tie

45шт.

631800C1

TERMINAL CONNECTOR,Female, 1 - 2 mm2

TERMINAL

1шт.

19351R1

GROMMET,1" ID x 1 5/8" x .125", Diag Cut

1 x 1-3/4 x 7/16 d/c rub

1шт.

245952C1

HARNESS

ADAPTER

1шт.

245165C1

SHIELD

alternator cover

1шт.

245163C1

STRAP

shield

1шт.

930294R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

M8 x 30 pln class 8.8

1шт.

30183R1

WASHER,M8 x 21.5 x 2.5, HT

9.9 x 21 x 2.5 mm phc

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Instructions, installing (NSS) 1/4"

1шт.

Выбрано товаров: 37
