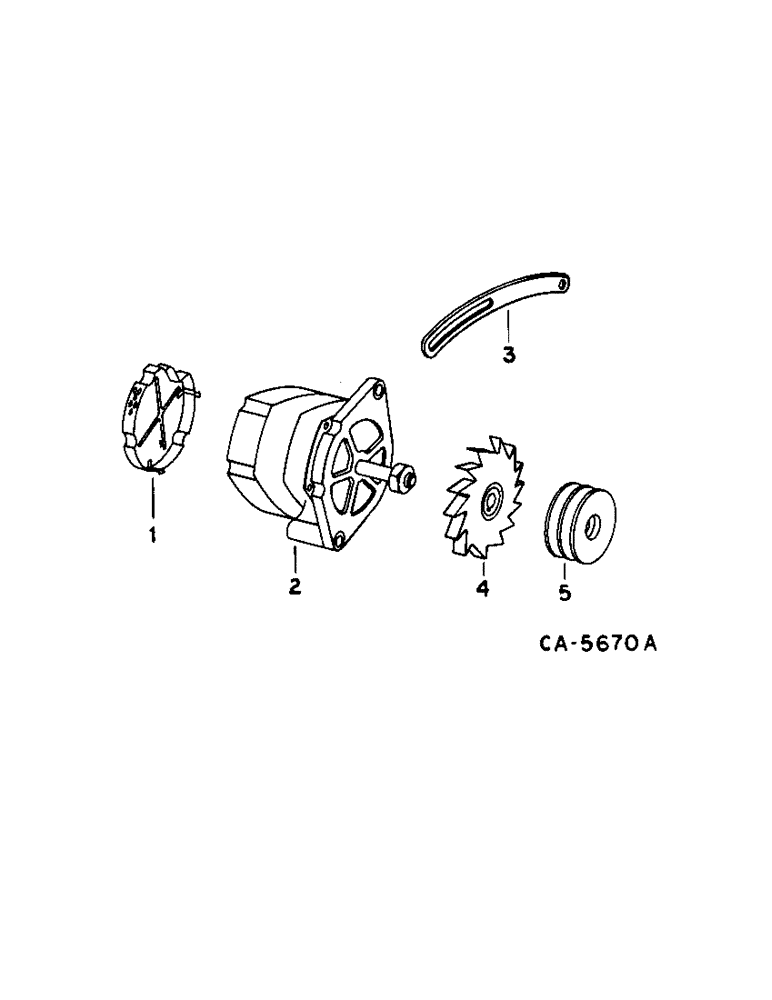

Запчасти Case IH 1470 (08-21) - ELECTRICAL, ALTERNATROR-GENERATOR AND MOUNTINGS, ALL EXCEPT 90 AMP MOROROLA ALTERNATOR (06) - ELECTRICAL

1

1851153

SHIELD

cover

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

5/16 x 1-1/8 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

ALTERNATOR-GENERATOR, refer to this group under alternator generator

1шт.

3

532418R1

BRACE

adjusting, replaces 532418R1

1шт.

930294R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

M8 x 30 pln class 8.8

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

21496R1

WASHER

.344 x .750 x .105

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

221425R1

FAN

alternator-generator

1шт.

5

537070R1

PULLEY

alternator-generator, 4.35 in. diameter, for alternator 1102922 and 1103160

1шт.

5

107686C1

PULLEY

alternator, 4.35 in. diameter, for use on machines with alternator 146466C91

1шт.
