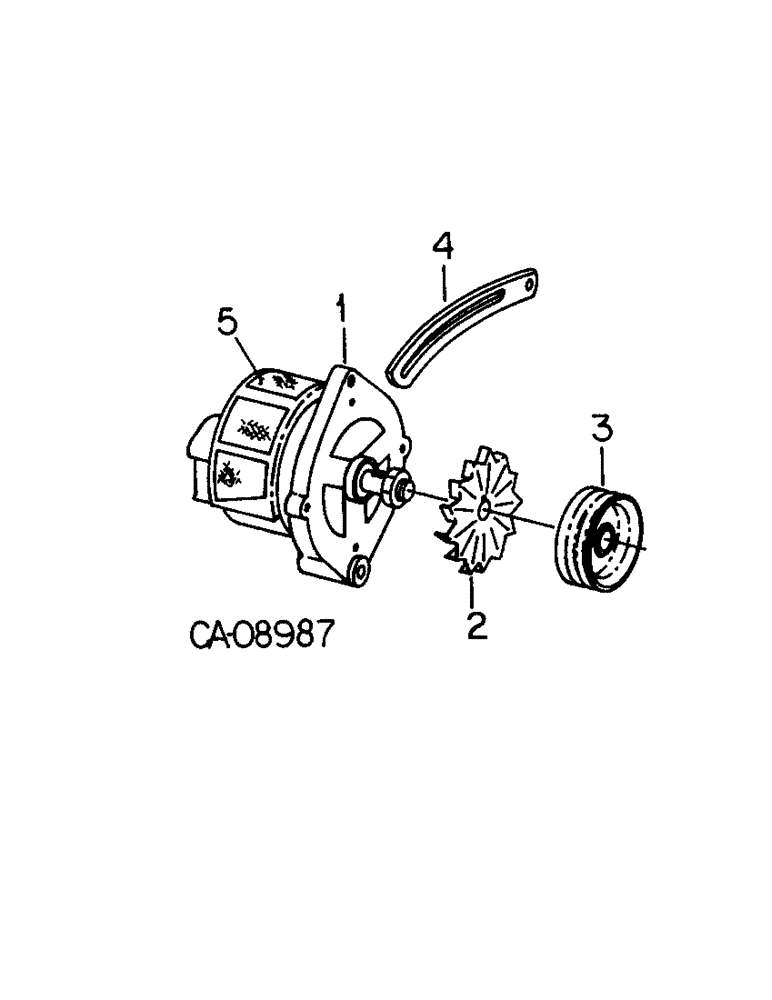

Запчасти Case IH 1470 (08-21[1]) - ALTERNATOR-GENERATOR MOUNTING MOTOROLA 90 AMP ALTERNATOR (06) - ELECTRICAL

1

245713C92

ALTERNATOR

ALTERNATOR-GENERATOR, replaces 146466C91

1шт.

1

87297294

REMAN-ALTERNATOR

Reman for New P/N 245713C92

1шт.

1

87297295

CORE-ALTERNATOR

Return Part Number

1шт.

1

146466C91

ALTERNATOR

Alternator, 12 VOLT, 80 AMP

1шт.

1

104023A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 80 AMP Alternator

1шт.

1

104023A1C

CORE-ALTERNATOR

Return Part Number\r\n, 12 VOLT, 80 AMP Alternator

1шт.

1

146472C91

GENERATOR

ALTERNATOR-GENERATOR, Niefoff, metric, 100 ampere

1шт.

1

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator

1шт.

1

104024A1C

CORE-ALTERNATOR

Return Part Number\r\n, 12 VOLT, 100 AMP Alternator

1шт.

1

125849A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 135 ampere

1шт.

1

125849A1C

CORE-ALTERNATOR

Return Part Number

1шт.

931715R1

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

BOLT, M10 x 90 pln class 8.8

1шт.

905262R1

NUT,M10 x 1.5, Cl 10

NUT, M10 phc P/T class 10

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

NUT, 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

2

221425R1

FAN

FAN, alternator-generator

1шт.

3

1252602C1

X

PULLEY, alternator-generator, or

1шт.

3

131042C1

PULLEY

PULLEY, alternator-generator

1шт.

4

532418R1

BRACE

BRACE, adjusting

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, 3/8 x 1 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

930294R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, M8 x 30 pln class 8.8

1шт.

21496R1

WASHER

WASHER, .344 x .750 x .105

1шт.

5

245165C1

SHIELD

SHIELD, alternator-generator cover

1шт.

245163C1

STRAP

STRAP, cover shield retaining

1шт.
