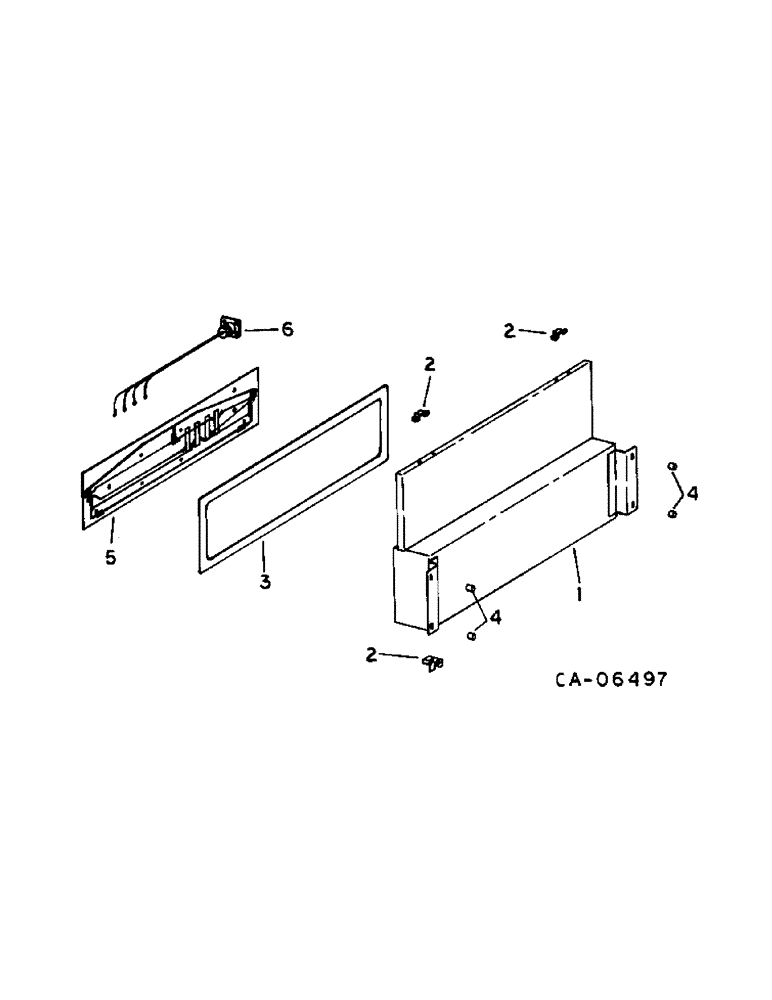

Запчасти Case IH 1470 (08-20) - ELECTRICAL, LEVELING SYSTEM CONTROL BOX (06) - ELECTRICAL

1

1304228C92

BOX

ASSY, leveling system control switch, includes ref. nos. 2 and 3

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16 x 2 type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

1304645C1

LATCH

ASSY, control box

2шт.

3

1304249C1

SEAL

1шт.

4

86224H

SPACER,1/4" Pipe x 3/8"

4шт.

5

1304226C1

SWITCH

ASSY, mercury

1шт.

231-4144

NUT,1/4"-20, GB

NUT, 1/4 cad P/T lock type 5

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

611352R1

WASHER

5/16 x 7/8 x 5/32 rubber

1шт.

6

1304789C1

HARNESS

ASSY, leveling

1шт.

107361H

LOCK NUT,#6-32, GB

NUT, no. 6 cad P/T lock type 5

1шт.

132705

GEARBOX

no. 6 x 1/2 znp r/hds mach

1шт.
