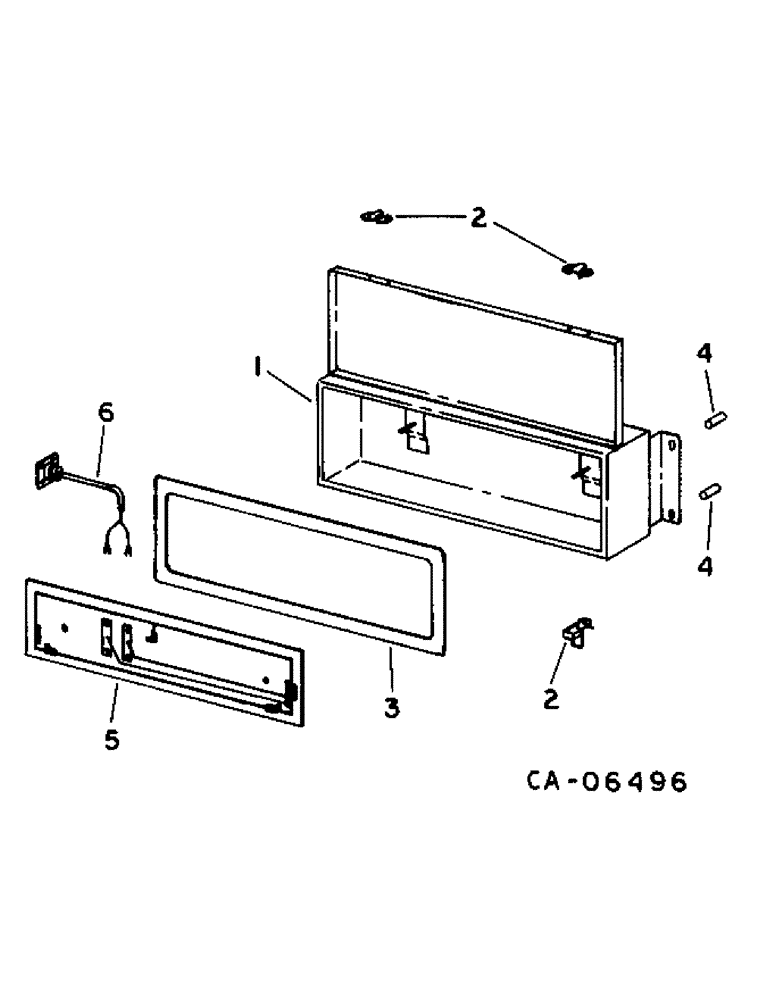

Запчасти Case IH 1470 (08-19) - ELECTRICAL, FORE-AFT TILT SWITCH BOX (06) - ELECTRICAL

1

1304228C92

BOX

ASSY, fore-aft tilt switch, includes ref. nos. 2 and 3

1шт.

180087

SPRING

5/16 x 2 type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

1304645C1

LATCH

ASSY, box

2шт.

3

1304249C1

SEAL

1шт.

4

U13039

SPACER

1/4 x 1.000 std pipe

4шт.

5

1304688C1

SWITCH

ASSY, mercury

1шт.

273924

SNAP RING

NUT, 1/4 cad P/T lock type 5

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

611352R1

WASHER

5/16 x 7/8 x 5/32 rubber

1шт.

6

1304687C1

HARNESS

ASSY, fore-aft tilt

1шт.

107361H

LOCK NUT,#6-32, GB

NUT, no. 6 cad P/T lock type 5

1шт.

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

no. 6 x 1/2 znp r/hds mach

1шт.
