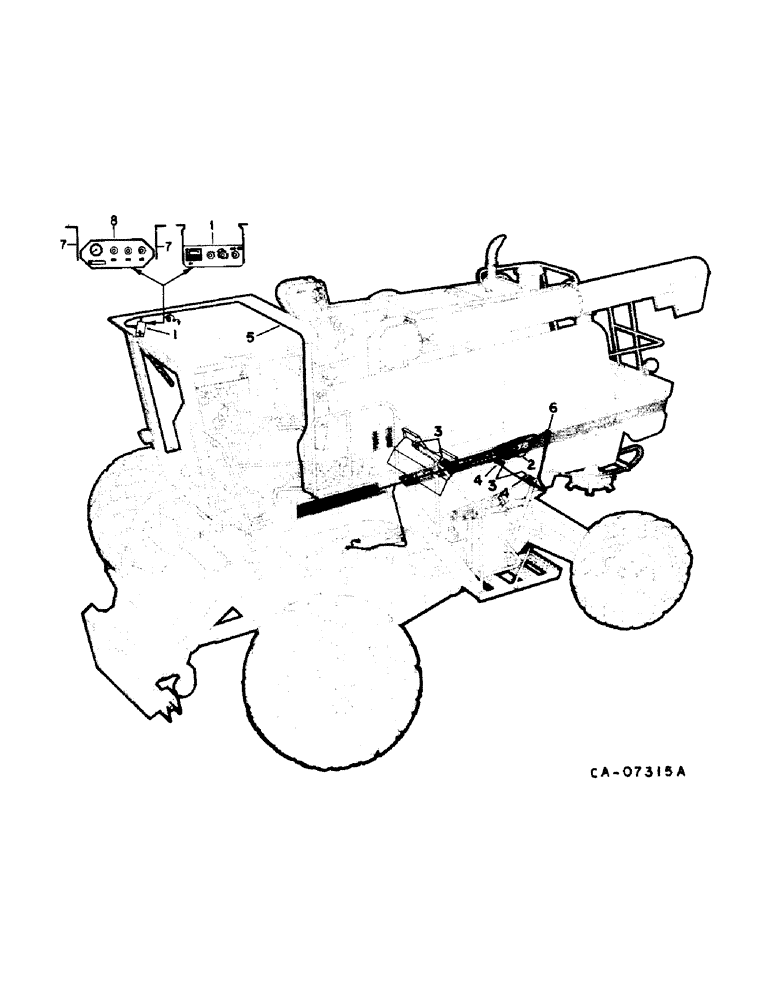

Запчасти Case IH 1470 (08-17) - ELECTRICAL, WIRING DIAGRAM, GRAIN LOSS MONITOR (06) - ELECTRICAL

1

1310676C2

CONTROL

grain loss monitor, SED

1шт.

2

245736C1

BLOCK

monitor control junction, replaces 1310677C1 and 245069C2, SED

1шт.

2

245306C1

HARNESS

ASSY, Y-connector, Dickey John

1шт.

Ref #2a - Should be changed to Ref #9. This is a short Y-Patch Connector Harness used with Dickey-John system. It is located off the end of the distance harness and connects to the transmission distance sensor. 10/19/95

1шт.

3

1301700C1

TRANSMITTER

SENSOR, monitor control, SED

4шт.

3

245283C1

SENSOR

AND BRACKET, sieve, Dickey John

2шт.

3

245285C1

SENSOR

AND BRACKET, rotor, Dickey John

2шт.

4

1310680C1

SUPPORT

sensor mounting, SED

2шт.

5

245067C1

HARNESS

ASSY, main, replaces 1310678C1, SED

1шт.

Ref #5 - Is as shown for SED. 10/19/95

1шт.

5

245304C1

HARNESS

ASSY, main, Dickey John

1шт.

Ref #5a - Is the main harness for Dickey-John system. It goes the full length of the machine. It does not send a lead to the transmission distance sensor. it goes directly to the sensors without going through a monitor control block ike SED uses. 10/19/95

1шт.

6

245737C1

HARNESS

ASSY, distance cable, replaces 1310679C1 and 245068C1, SED

1шт.

Ref #6 - Is actually the rear sensor harness for SED, not the Distance Harness.

1шт.

6

245305C1

HARNESS

ASSY, distance cable, Dickey John

1шт.

Ref #6a - Should be changed to Ref #10. This is the Distance Cable for the Dickey-John System. It hooks to the Y-Patch Cable at the transmission sensor and parallels all the way to the monitor in the cab roof 10/19/95

1шт.

7

1319499C1

SUPPORT

BRACKET, monitor control mounting, Dickey John

2шт.

8

245757C1

INSTRUMENT CLUSTER

CONTROL, grain loss monitor, renewed, replaces 245250C1, Dickey John

1шт.

145510

FUSE,1 Amp, Type 3AG

3AG 1 ampres

1шт.

245328C1

EXTENSION

battery cable, not illustrated, used with Dickey John monitor 245250C1 only, connects monitor to 12 volt power supply

1шт.
