Запчасти Case IH 1470 (08-15) - ELECTRICAL, WIRING DIAGRAM, 4 WHEEL DRIVE AND LEVELING, S.N. 10001 AND ABOVE (06) - ELECTRICAL

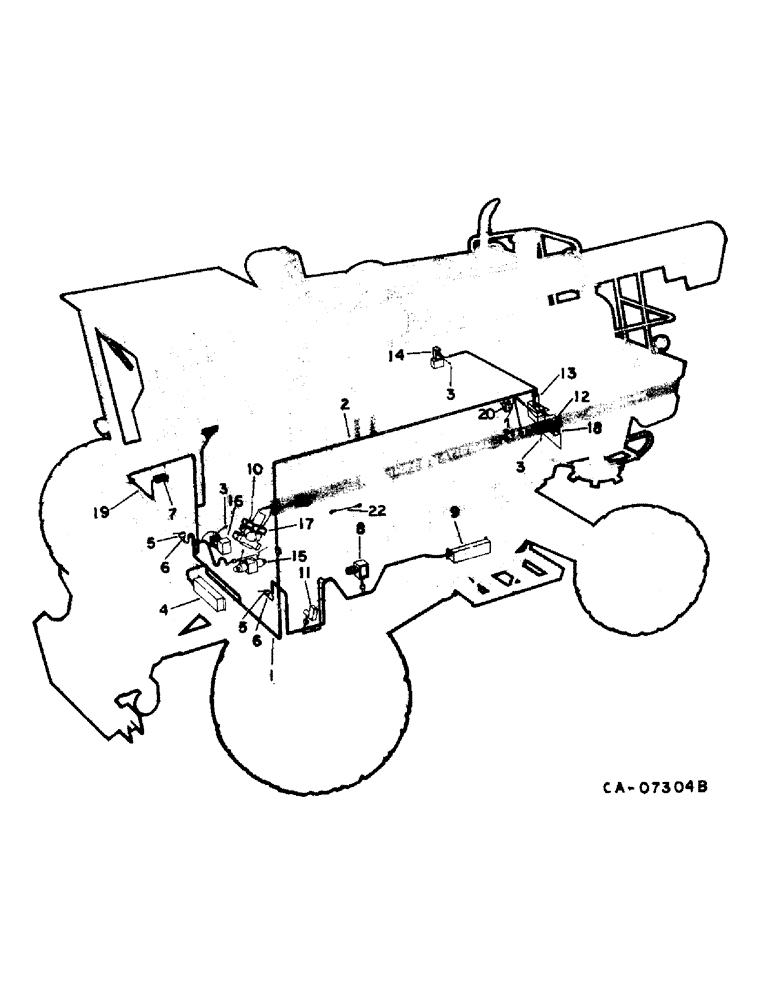

Схема запчастей Case IH 1470 - (08-15) - ELECTRICAL, WIRING DIAGRAM, 4 WHEEL DRIVE AND LEVELING, S.N. 10001 AND ABOVE (06) - ELECTRICAL
22
15
9
6
16
13
11
6
17
8
18
19
2
7
5
10
4
5
3
12
3
14
3
20

Артикул

Название

Примечание

Количество

1

1304787C2

HARNESS

ASSY, 4 wheel drive and levelings, Serial Range: 10001-10075

1шт.

1

1265669C1

HARNESS

ASSY, 4 wheel drive and leveling, Start Serial: 10076

1шт.

2

1304788C2

HARNESS

ASSY, 4 wheel drive and leveling, Serial Range: 10001-10075

1шт.

2

1265670C1

HARNESS

ASSY, 4 wheel drive and leveling, Start Serial: 10076

1шт.

3

1304695C1

CABLE

ASSY, high speed leveling, reel start valve and rear motor valve

3шт.

4

BOX ASSY, leveling control switch, refer to this group under leveling system control box

1шт.

5

1310827C1

SWITCH

ASSY, leveling limit, Serial Range: 10001-10075

2шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

1шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no. 6 x 1-1/4 znp p/hds mach

1шт.

138526

LOCK WASHER

no. 6 int. tooth lock

1шт.

5

1265622C2

SWITCH

ASSY, leveling limit, Start Serial: 1076

1шт.

1265634C1

ARM

leveling switch, used with switch 1265622C2 only

2шт.

159967

SCREW,Cross Pan Hd, #10 - 24 x 1 1/2"

#10 x 1-1/2 znp P/HDCR mach

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120391

WASHER,#10

.219 x .500 x .036

1шт.

6

631760R91

ELECTRICAL WIRE

CABLE ASSY, leveling limit ground

2шт.

7

1304684C1

SWITCH

ASSY, 4 wheel drive foot

1шт.

1304698C1

BAR

SUPPORT, switch assy

1шт.

132830

SPECIAL BOLT,Sl Rnd Hd, #10 - 24 x 3/8"

SCREW, no. 10 x 3/8 znp r/hds mach

1шт.

8

1304983C91

SWITCH

ASSY, front motor pressure, Serial Range: 10001-10075

1шт.

8

1265668C91

SWITCH

ASSY, front motor pressure, Start Serial: 10076

1шт.

1304239C1

SWITCH

see note

1шт.

1304644C1

CONNECTOR, ELEC

CONNECTOR, see note

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

231-4144

NUT,1/4"-20, GB

NUT, 1/4 cad P/T lock type 5

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

9

BOX ASSY, fore-aft tilt switch, refer to this group under fore-aft tilt switch box

1шт.

10

1304693C1

CABLE

ASSY, header drive valve

2шт.

11

145338C1

SWITCH

VALVE ASSY, solenoid

1шт.

12

VALVE ASSY, four wheel drive, refer to group 10 under rear wheel drive, hydra diagram

1шт.

13

VALVE ASSY, rear brake, refer to group 10 under rear wheel drive, hydra diagram

1шт.

14

VALVE ASSY, leveling by pass, refer to group 10 under leveling system, hydra diagram

1шт.

15

VALVE ASSY, leveling, refer to group 10 under leveling system, hydra diagram

1шт.

16

VALVE ASSY, reel by pass, refer to group 10 under header and reel drive, hydra diagram

1шт.

17

VALVE ASSY, selector, refer to group 10 under header and reel drive, hydra diagram

1шт.

18

186057C1

SWITCH

4 wheel drive valve

1шт.

1310689C1

SWITCH

SUPPORT, switch

1шт.

19

1304650C1

HARNESS

ASSY, reverse lockout

1шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

1шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no. 6 x 1-1/4 znp p/hd mach

1шт.

138526

LOCK WASHER

no. 6 int. tooth lock

1шт.

131014

WASHER

.156 x .375 x .036

1шт.

21

631760R91

ELECTRICAL WIRE

CABLE ASSY, ground

1шт.

22

138842C1

CABLE

ASSY, reel speed solenoid ground

1шт.

Выбрано товаров: 45
