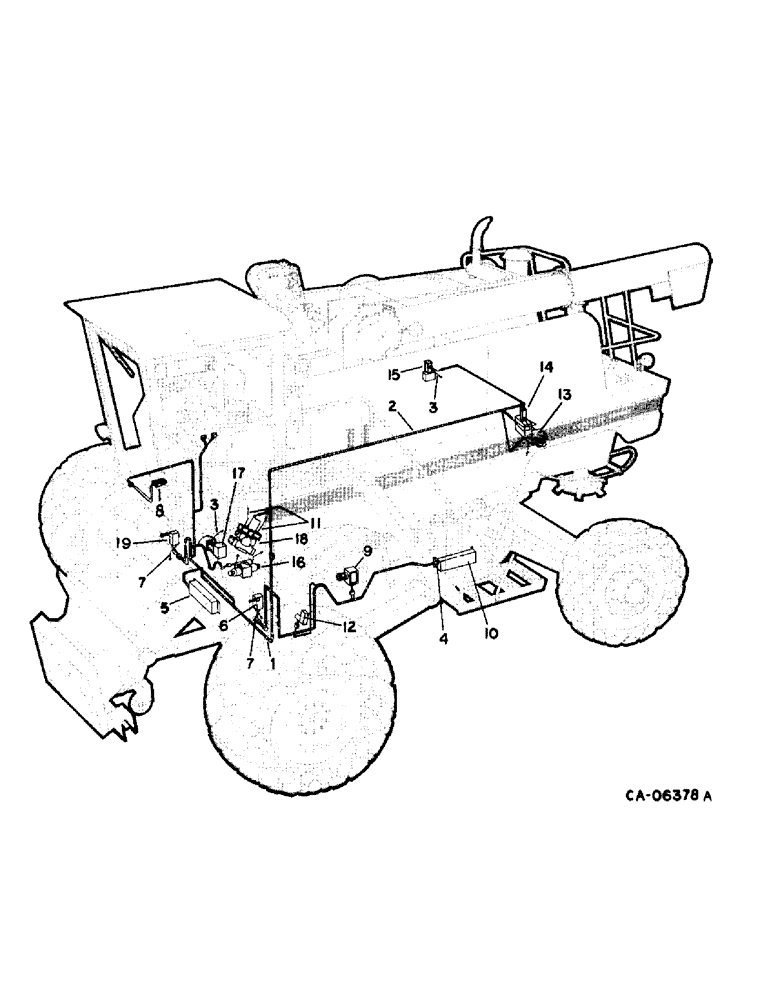

Запчасти Case IH 1470 (08-13) - ELECTRICAL, WIRING DIAGRAM, 4 WHEEL DRIVE AND LEVELING, S.N. 10000 AND BELOW (06) - ELECTRICAL

1

1304689C2

HARNESS

ASSY, leveling and wheel drive control

1шт.

2

1304692C2

HARNESS

ASSY, leveling and wheel drive control

1шт.

3

1304695C1

CABLE

ASSY, high speed leveling and reel start valve

2шт.

4

1304687C1

HARNESS

ASSY, fore-aft tilt

1шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

1шт.

132705

GEARBOX

no. 6 x 1/2 znp r/hds mach

1шт.

5

BOX ASSY, leveling control switch, refer to this group under leveling system control box

1шт.

6

1304681C91

SWITCH

ASSY, LH level limit, includes ref. no. 7

1шт.

1304640C1

SWITCH

ASSY, level limit

1шт.

1304641C1

ARM

1шт.

1304682C1

CONNECTOR, ELEC

CONNECTOR

1шт.

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

no. 10 x 5/8 znp p/hds mach

1шт.

436737

SCREW,Slotted Pan Hd, #10-24 x 1 1/4"

no. 10 x 1-1/4 znp p/hds mach

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

7

1304683C1

HARNESS

ASSY, level limit switch

2шт.

8

1304684C1

SWITCH

ASSY, 4 wheel drive foot

1шт.

1304698C1

BAR

SUPPORT, switch assy

1шт.

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

no. 10 x 3/8 znp r/hds mach

1шт.

9

1304239C1

SWITCH

ASSY, front motor pressure

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

231-4144

NUT,1/4"-20, GB

NUT, 1/4 cad P/T lock type 5

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

10

BOX ASSY, fore-aft tilt switch, refer to this group under fore-aft tilt switch box

1шт.

11

1304693C1

CABLE

ASSY, header drive valve

2шт.

12

145338C1

SWITCH

VALVE ASSY, solenoid

1шт.

13

VALVE ASSY, four wheel drive, refer to group 10 under rear wheel drive

1шт.

14

VALVE ASSY, rear brake, refer to group 10 under rear wheel drive

1шт.

15

VALVE ASSY, leveling by pass, refer to group 10 under leveling system

1шт.

16

VALVE ASSY, leveling, refer to group 10 under leveling system

1шт.

17

VALVE ASSY, reel by pass, refer to group 10 under header and reel drive

1шт.

18

VALVE ASSY, selector, refer to group 10 under header and reel drive

1шт.

19

1304756C91

SWITCH

ASSY, RH level limit, includes ref. no. 7

1шт.

1304640C1

SWITCH

ASSY, level limit

1шт.

1304641C1

ARM

1шт.

1304682C1

CONNECTOR, ELEC

CONNECTOR

1шт.

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

no. 10 x 5/8 znp p/hds mach

1шт.

436737

SCREW,Slotted Pan Hd, #10-24 x 1 1/4"

no. 10 x 1-1/4 znp p/hds mach

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.
