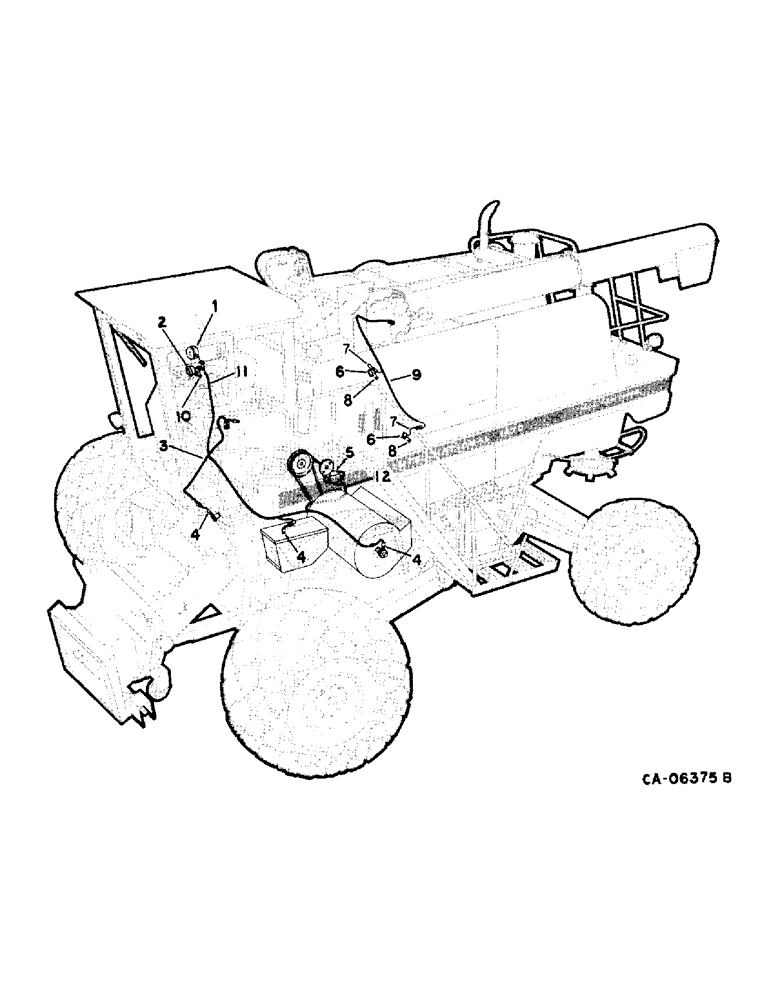

Запчасти Case IH 1470 (08-12) - ELECTRICAL, WIRING DIAGRAM, RIGHT TURN SIGNAL, HEAD LIGHT, DIGITAL READOUT & SLIP CLUTCH (06) - ELECTRICAL

1

LAMP ASSY, flasher, refer to this group under lights and mountings

1шт.

2

LAMP ASSY, RH head light, refer to this group under lights and mountings

1шт.

3

187796C3

HARNESS

ASSY, tachometer and front lights, Serial Range: -10000

1шт.

3

1301533C1

HARNESS

ASSY, tachometer and front lights, Start Serial: 10001

1шт.

632227C1

SCREW, 5/16 x 3/4 zn slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

4

GAGE, reluctance pickup, refer to group 7 under power take off drive, refer to group 21 under rotor, refer to group 24 under cleaning fans and shields

3шт.

5

MOTOR, fan speed control, refer to group 24 under fan drive

1шт.

6

SWTICH ASSY, elevator and shaker shaft alarm, refer to group 23 under shaker and auger drive, refer to group 25 under grain and tailings elevator drive

2шт.

7

187736C1

CABLE

ASSY, slip clutch

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

175008C1

CABLE ASSY.

CABLE ASSY, warning switch ground

2шт.

9

183586C1

HARNESS

ASSY, slip clutch

1шт.

10

178890C1

CABLE

ASSY, head light ground

1шт.

11

1301536C2

HARNESS

ASSY, RH lights, Start Serial: 10001

1шт.

12

1301537C1

HARNESS

ASSY, fan motor, Start Serial: 10001

1шт.
