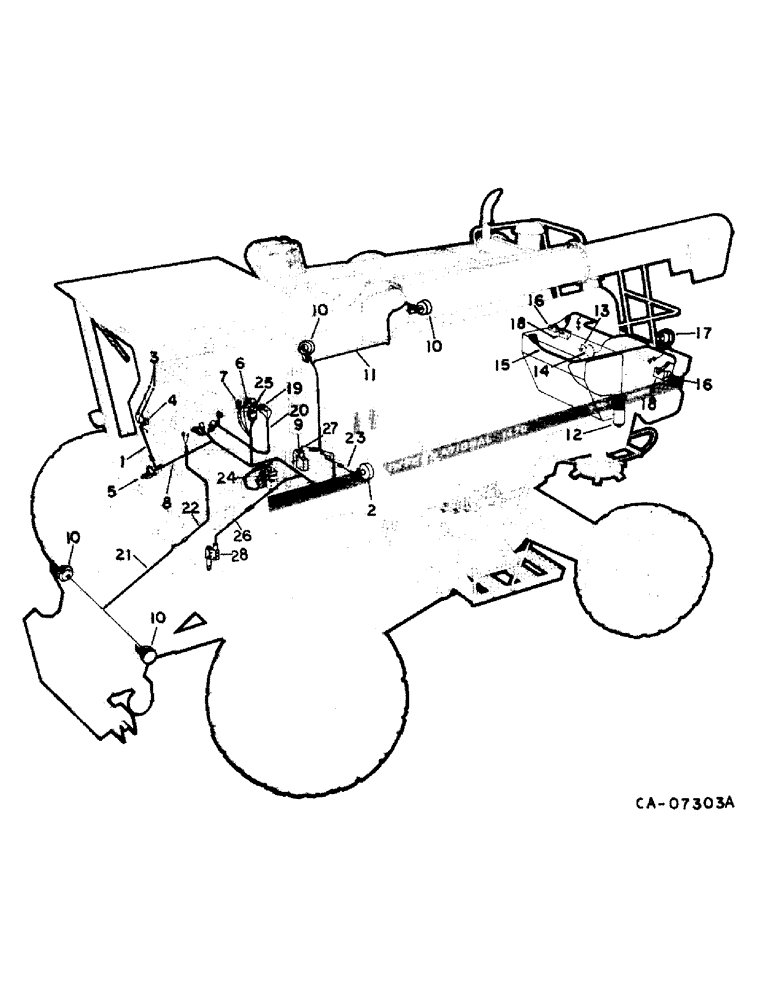

Запчасти Case IH 1470 (08-10) - ELEC., WIRING DIAGRAM, LEFT TURN, GRAIN TANK UNLOADER, REAR LIGHTS & FUEL PUMP, S.N. 10000 & ABOVE (06) - ELECTRICAL

1

1301532C1

HARNESS

ASSY, steering column

1шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10 x 1/2 znp p/hds mach

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120391

WASHER,#10

.219 x .500 x .036

1шт.

2

LAMP ASSY, flasher front LH, refer to this group under lights and mountings

1шт.

3

121684C91

LIGHT ASSY.

INDICATOR, light

2шт.

71892C1

LENS

2шт.

200557H1

BULB,C2V, #1815, 14V

#1815

2шт.

4

131066C91

SWITCH

ASSY, turn signal, or

1шт.

4

131209C91

SWITCH

ASSY, turn signal

1шт.

5

196825C1

IGNITION SWITCH

SWITCH ASSY, safety start

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2NF jam type 5

1шт.

6

633643R91

SWITCH

ASSY, parking brake warning light

1шт.

68107H

LOCK NUT

1шт.

166817C1

WASHER

1шт.

469668R1

WASHER

.406 x .734 x .056

1шт.

7

195778C91

LIGHTER, CIGARETTE

LIGHTER ASSY, cigerette

1шт.

8

1301531C1

HARNESS

ASSY, main front

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

9

SOLENOID, feeder clutch valve, refer to group 10 under 4 wheel drive, feeder and separator clutch valve

1шт.

10

LAMP ASSY, grain tank, unloader and feeder pivot, refer to this group under lights and mountings

4шт.

11

187792C2

HARNESS

ASSY, grain tank and unloader lights

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

12

PUMP ASSY, fuel, refer to group 12 under fuel tank

1шт.

15

1301535C2

HARNESS

ASSY, main rear

1шт.

16

LAMP ASSY, rear warning, refer to this group under lights and mountings

2шт.

17

LAMP ASSY, RH night light, refer to this group under lights and mountings

1шт.

18

LAMP ASSY, tail, refer to this group under lights and mountings

2шт.

19

1310827C1

SWITCH

ASSY, third gear lockout

1шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

1шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no. 6 x 1-1/4 znp p/hds mach

1шт.

138526

LOCK WASHER

no. 6 int tooth lock

1шт.

131014

WASHER

.156 x .375 x .036

1шт.

20

1304691C2

HARNESS

ASSY, LH console and 4 wheel drive control

1шт.

21

1304980C2

HARNESS

ASSY, feeder light lower

1шт.

22

1304979C2

HARNESS

ASSY, feeder light upper

1шт.

23

1304981C1

HARNESS

ASSY, LH extension flasher light

1шт.

24

1301077C1

HARNESS

ASSY, hydraulic valve cluster

1шт.

112432

NUT,#10-32, Brass

Machine screw #10-32, Brass

1шт.

25

1301359C1

SWITCH

ASSY, unloader swing

1шт.

1301357C2

BAR

LH console switch

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

26

1310846C1

HARNESS

CABLE ASSY, reel drive, Serial Range: -20000

1шт.

27

1300707C1

KIT

CABLE KIT ASSY, feeder solenoid

1шт.

28

VALVE ASSY, flow divider and reel drive, refer to group 10 under hydrualic diagram, header and reel drive

1шт.

71485C1

PACKAGE

KIT, turn signal switch handle and hardware, for use with switch 131066C91 or 131209C91

1шт.
