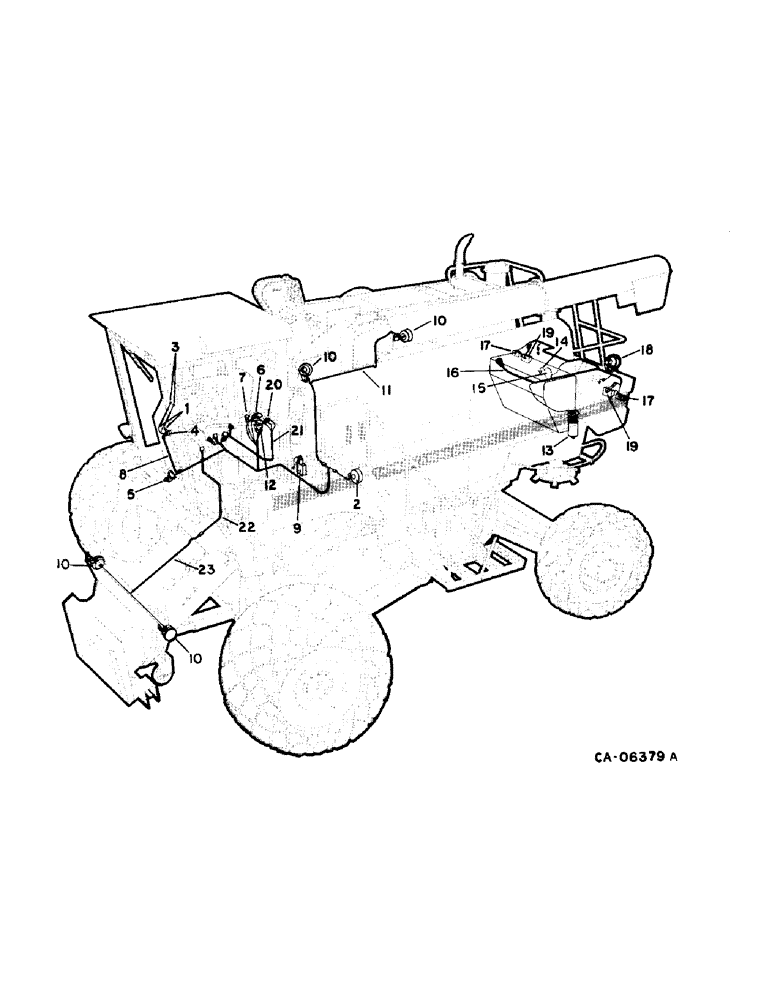

Запчасти Case IH 1470 (08-08) - ELEC., WIRING DIAGRAM, LEFT TURN, GRAIN TANK UNLOADER, REAR LIGHTS & FUEL PUMP, S.N. 10000 & BELOW (06) - ELECTRICAL

1

187532C1

CABLE

ASSY, indicator lights ground

2шт.

2

LAMP ASSY, flasher front LH, refer to this group under lights and mountings

1шт.

3

121684C91

LIGHT ASSY.

INDICATOR LIGHT

2шт.

71892C1

LENS

2шт.

200557H1

BULB,C2V, #1815, 14V

NO. 1815

2шт.

4

131066C91

SWITCH

ASSY, turn signal, or

1шт.

131209C91

SWITCH

ASSY, turn signal

1шт.

5

196825C1

IGNITION SWITCH

SWITCH ASSY, safety start

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2NF jam type 5

1шт.

6

633643R91

SWITCH

ASSY, parking brake warning light

1шт.

166817C1

WASHER

1шт.

68107H

LOCK NUT

parking brake warning light

1шт.

469668R1

WASHER

.406 x .734 x. 056

1шт.

7

195778C91

LIGHTER, CIGARETTE

LIGHTER ASSY, cigerette

1шт.

8

195782C2

CABLE

HARNESS ASSY, main front

1шт.

9

SOLENOID, feeder clutch valve, refer to group 10 under feeder and separator clutch valve

1шт.

10

LAMP ASSY, grain tank, unloader and feeder pivot, refer to group under lights and mountings

4шт.

11

187792C2

HARNESS

ASSY, grain tank and unloader lights

1шт.

12

131039C1

SWITCH

ASSY, fan speed control

1шт.

13

PUMP ASSY, fuel, refer to group 12 under fuel lines

1шт.

14

196262C2

CABLE ASSY.

CABLE ASSY, fuel gage ground

1шт.

15

GAGE ASSY, fuel tank, refer to group 12 under fuel tank

1шт.

16

198012C2

HARNESS

ASSY, main rear

1шт.

17

LAMP ASSY, rear warning, refer to this group under lights and mountings

2шт.

18

LAMP ASSY, RH night light, refer to this group under lights and mountings

1шт.

19

LAMP ASSY, refer to this group under lights and mountings

2шт.

20

1304685C1

SWITCH

ASSY, third gear lockout

1шт.

107361H

LOCK NUT,#6-32, GB

NUT, no. cad P/T lock type 5

1шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

SWITCH, no. 6 x 1-1/4 znp P/HDCR mach

1шт.

21

1304691C2

HARNESS

ASSY, wheel drive control

1шт.

22

1304980C2

HARNESS

ASSY, feeder light lower

1шт.

23

1304979C2

HARNESS

ASSY, feeder light upper

1шт.

71485C1

PACKAGE

KIT, turn signal switch handle and hardware, for use with switch 131066C91 or 131209C91

1шт.
