Запчасти Case IH 1470 (08-07) - ELECTRICAL, WIRING DIAGRAM, ENGINE AND AUTO HEADER CONTROL (06) - ELECTRICAL

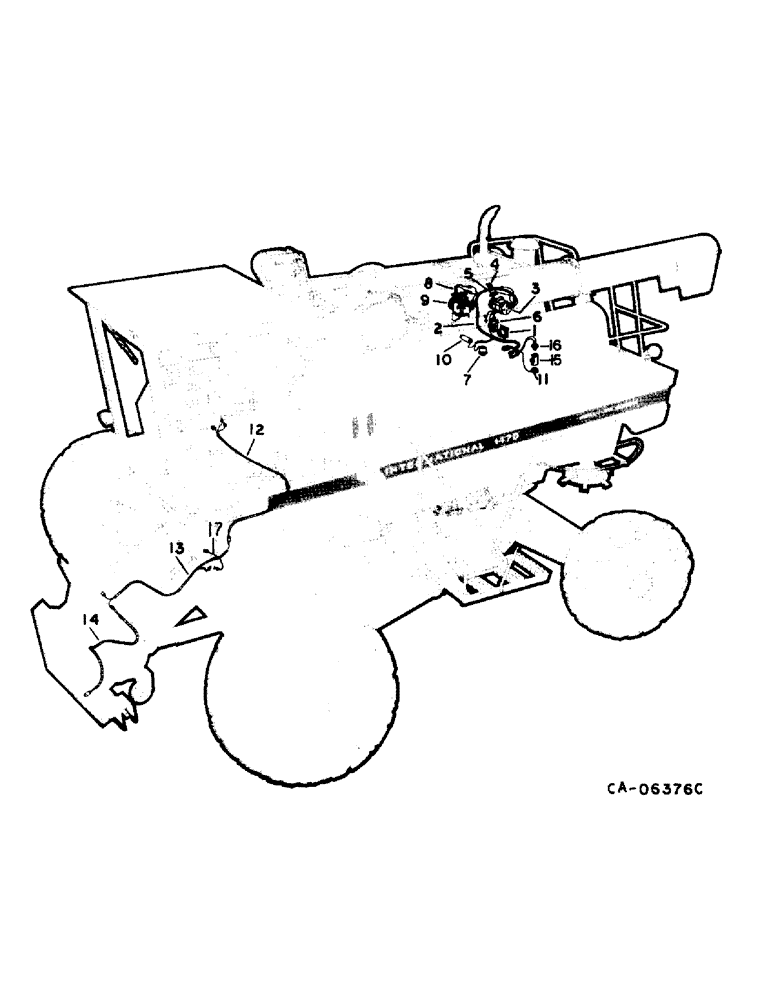

Схема запчастей Case IH 1470 - (08-07) - ELECTRICAL, WIRING DIAGRAM, ENGINE AND AUTO HEADER CONTROL (06) - ELECTRICAL
14
10
15
9
11
2
7
6
5
4
16
13
3
12
17
8

Артикул

Название

Примечание

Количество

1

RELAY, cranking motor solenoid, refer to this group under wiring diagram main harness, starter and battery

1шт.

2

107644C2

HARNESS

ASSY, engine, replaces 107642C1, for use with all alt-gen except 90 amp Motorola

1шт.

2

245950C1

HARNESS

ASSY, engine, for use with 90 amp Motorola alt-gen only

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 hex-hd flange

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

ALTERNATOR-GENERATOR, refer to this group under alt-gen only

1шт.

4

121756C2

SENSOR

SENDER, water temperature gage

1шт.

5

130861C1

SWITCH

water hi-temp light

1шт.

6

SOLENOID ASSY, ether injection, refer to group 12 under ether starting

1шт.

7

130707C3

SENDER UNIT

SENDER, oil pressure gage

1шт.

8

SWITCH, high pressure, refer to group 13 under air conditioner compressor and condenser

1шт.

9

CLUTCH ASSY, compressor, refer to group 13 under air conditioner compressor and condenser

1шт.

10

681494C92

RELAY

SOLENOID ASSY, injection pump

1шт.

11

392249R92

SWITCH

low oil pressure

1шт.

12

1301499C1

HARNESS

ASSY, AHC platform

1шт.

13

1301500C1

HARNESS

ASSY, AHC feeder

1шт.

14

1310874C1

CONTROL

HARNESS ASSY, AHC feeder extension

1шт.

15

9409939

TEE,1/8"-27 NPTF Fem Run x 1/8"-27 NPTF Male Br

1/8-27 pln

1шт.

443998

ADAPTER,1/8"-27 Fem NPTF x 1/8"-27 NPTF Male

1/8-27 pln

1шт.

16

131424C1

SWITCH

pressure

1шт.

17

1301419C1

HARNESS

ASSY, feeder transducer

1шт.

196262C2

CABLE ASSY.

CABLE ASSY, chassis ground, 15 in. 381.0 mm long

1шт.

631760R91

ELECTRICAL WIRE

CABLE ASSY, chassis ground, 4 in., 101.6 mm long

1шт.

Выбрано товаров: 23
