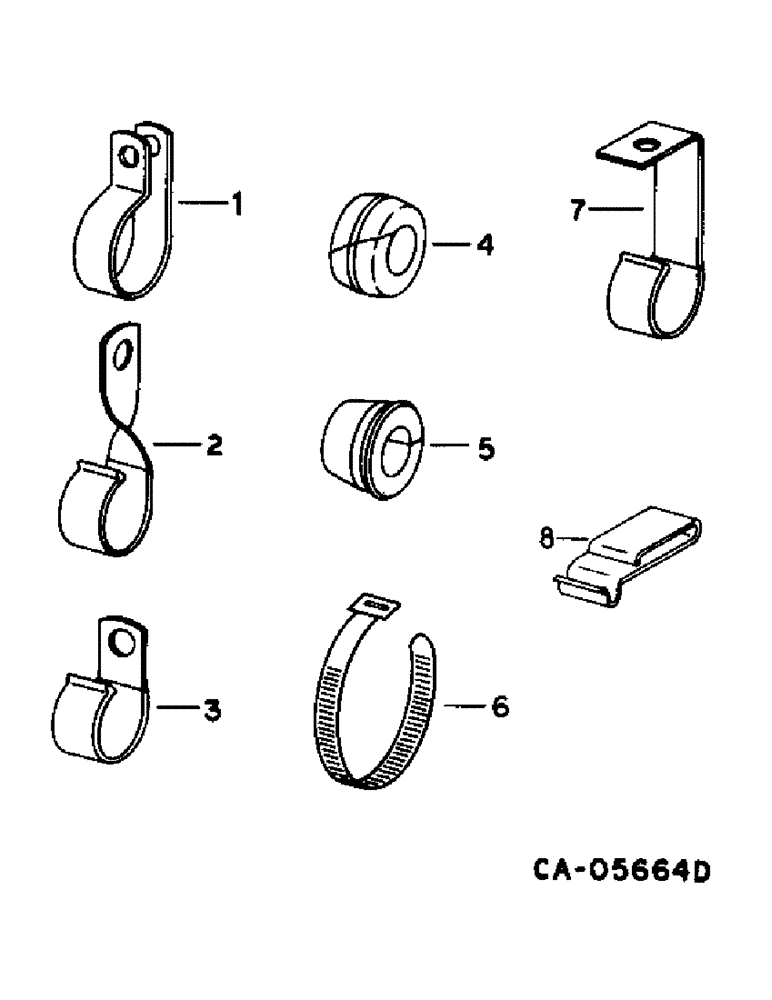

Запчасти Case IH 1470 (08-01) - ELECTRICAL, CLIPS, GROMMETS AND STRIPS (06) - ELECTRICAL

1

129355H1

NO LONGER SERVICED

CLIP, center harness

3шт.

Uninsulated

1шт.

1

299607C1

CLIP,1 3/16", Insul, 1/4" Bolt

console harness

3шт.

Insulated

1шт.

1

969866R1

CLIP

console harness

4шт.

Insulated

1шт.

1

573099R2

CLIP

battery cable

2шт.

Insulated

1шт.

1

1300542C1

CLAMP,1 3/8", 5/16" Bolt

CLIP, center harness, replaces 315411R1

1шт.

1

1300542C1

CLAMP,1 3/8", 5/16" Bolt

CLIP, center harness

3шт.

Uninsulated

1шт.

1

245738C2

CLAMP

CLIP PACKAGE, grain loss monitor harness, consists of (6) clamps (NSS), (6) nuts (NSS)

1шт.

Insulated

1шт.

2

363660R1

CLIP

used for, alternator, cranking motor, main front harness, shaft speed, feeder harness

1шт.

Insulated

1шт.

3

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, used for, throttle bracket, (5) fan motor lower, light switch, main front harness, (4) RH light harness, (19) shaft speed, (10) tachometer, pulley limit switch, for separator drive

1шт.

Insulated

1шт.

3

362126R1

CLIP

used for main center harness, long, shaft speed

1шт.

Insulated

1шт.

3

362127R1

CLIP

shaft speed monitor control

3шт.

Insulated

1шт.

3

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP

1шт.

Insulated

1шт.

Used for power unit, (4) feeder harness, (8) auto header controls, main center harness, (2) console harness, (6) main front harness, fuel filter, (13) main rear harness, (3) RH light harness, (2) shaft speed, steering column harness, (3) tachometer

1шт.

3

366460R1

CABLE CLIP

CLIP, used for (16) main front harness, (7) front work light harness

1шт.

Insulated

1шт.

3

362123R1

CLIP

crankcase and water pump

2шт.

Insulated

1шт.

3

362667R1

CLIP

ether start bracket

1шт.

Insulated

1шт.

3

362666R1

CLIP

monitor control

6шт.

Insulated

1шт.

3

263717R91

CLIP

feeder extension harness

1шт.

Insulated

1шт.

4

117959

GROMMET,5/16" ID x .719" x .062"

5/16 x 23/32 x 5/16 d/c rub, used for (3) center harness, shaft speed, tachometer and RH light harness

1шт.

4

117972

GROMMET,1/4" ID x 1" x .062", Diag Cut

5/16 x 1 x 3/8 d/c rub, used for main rear harness, RH light harness

1шт.

4

120408

GROMMET,1/2" ID x 1 1/16" x .188", Diag Cut

1/2 x 1-1/16 x 7/16 d/c rub, used for tachometer

1шт.

4

128449C1

GROMMET

feeder transducer harness

1шт.

4

109390

GROMMET,5/16" ID x 23/32" x .062", Diag Cut

5/16 x 23/32 x 7/16 d/c rub, used for (2) center harness, four wheel drive foot, switch harness, (2) LH flasher light

1шт.

4

117975

GROMMET,5/8" ID x 1 3/8" x .062", Diag Cut

5/8 x 1-3/8 x 1/2 d/c rub, RH light harness

1шт.

5

195803C1

GROMMET

RH light harness

1шт.

5

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

front harness

1шт.

5

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

shaft speed monitor

1шт.

5

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

auto header control

1шт.

6

702093C1

CABLE TIE

STRIP, tie

1шт.

Used for, (3) feeder harness, (8) auto header control, (3) fan motor lower, (4) main front harness, fuel tank ground cable, headlight ground cable, indicator lights ground cable, (10) main rear harness, (2) RH light harness, (2) tachometer, (11) shaft speed monitor control, (2) steering column, (8) console harness tie

1шт.

6

289862C1

CABLE TIE,3/16" x 7"

STRAP, tie, head light ground cable

1шт.

6

291207C1

CLAMP

STRAP, tie, used for, fan motor, reverse lockout, tachometer and front light

1шт.

7

(Not used this application)

1шт.

8

1304761C1

CLIP

main rear harness

1шт.
