Запчасти Case IH 1470 (13-31) - SUPERSTRUCTURE, MIRROR (05) - SUPERSTRUCTURE

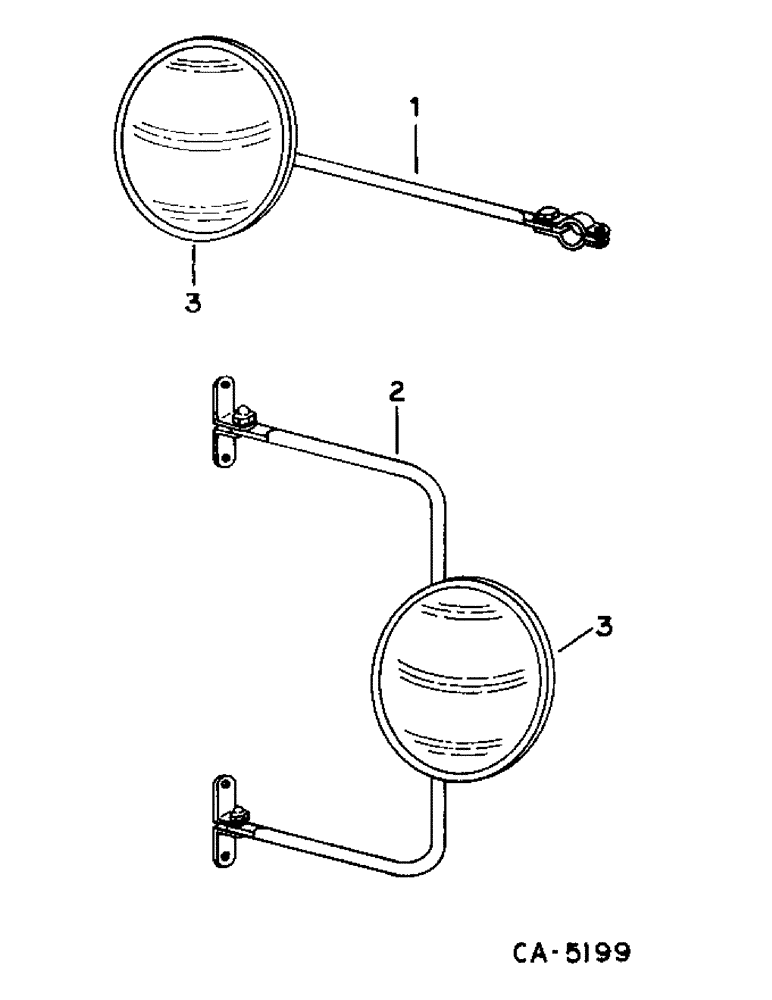

Схема запчастей Case IH 1470 - (13-31) - SUPERSTRUCTURE, MIRROR (05) - SUPERSTRUCTURE
3
3
1
2

Артикул

Название

Примечание

Количество

1

196661C91

MIRROR

ASSY, rear view LH, includes ref. no. 3

1шт.

2

196660C91

MIRROR

ASSY, rear view RH, includes ref. no. 3

1шт.

3

196879C1

MIRROR

HEAD, mirror

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

Выбрано товаров: 5
