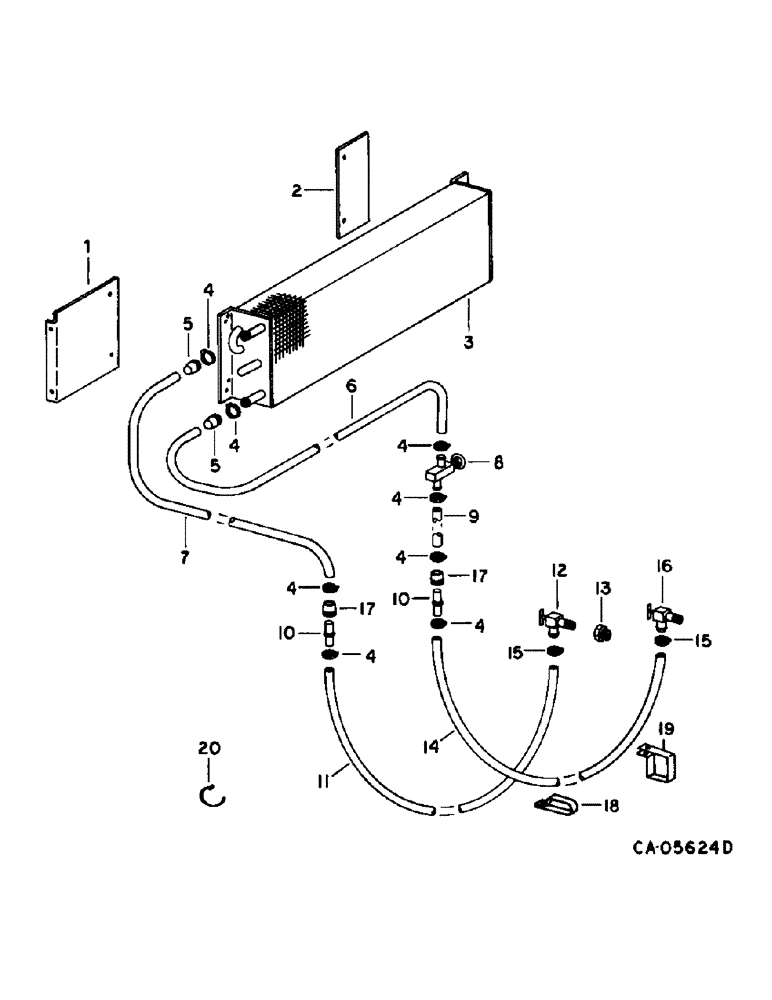

Запчасти Case IH 1470 (13-29) - SUPERSTRUCTURE, HEATER (05) - SUPERSTRUCTURE

1

1301248C1

SUPPORT

heater mounting LH

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

1шт.

2

1301320C1

SUPPORT

heater mounting RH

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

1шт.

3

539056R3

CORE

heater

1шт.

9414587

SCREW,#8 - 18 x 1/2"

no. 8 x 1/2 h/hds tap

1шт.

4

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, heater hose

1шт.

5

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

heater hose

2шт.

6

HOSE, heater inlet from valve, use 105 in. of 5/8 ID from bulk stock marked 117724C1

1шт.

7

HOSE, heater return, use 72 in. of 5/8 from bulk stock marked 117724C1

1шт.

8

173908C1

VALVE

water shut-off

1шт.

445444

NUT,U, #10-16

10-12 phc u-spr style II

1шт.

27959R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/2"

SCREW, #10-16 x 1-1/2 phc P/HDCR tap

1шт.

9

HOSE, heater inlet to valve, use 36 in. of 5/8 ID from bulk stock marked 117724C1

1шт.

10

1301342C1

FITTING

heater hose inlet

2шт.

11

HOSE, heater, use 156 in. of 5/8 ID from bulk stock marked 117724C1

1шт.

12

301803R1

SHUT-OFF VALVE

VALVE, heater hose rear shut-off

1шт.

13

175778H1

ADAPTER

1/2 to 3/8 reducing pipe

1шт.

14

HOSE, heater, use 183 in. of 5/8 ID from bulk stock marked 117724C1

1шт.

15

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, 1-1/16 hose

1шт.

16

301803R1

SHUT-OFF VALVE

VALVE, heater hose rear shut-off

1шт.

17

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

heater hose, 7/8 ID

2шт.

18

154695C2

CLAMP

hose

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

19

394271R1

CLIP

hose support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

20

291207C1

CLAMP

STRAP, hose tie

2шт.
