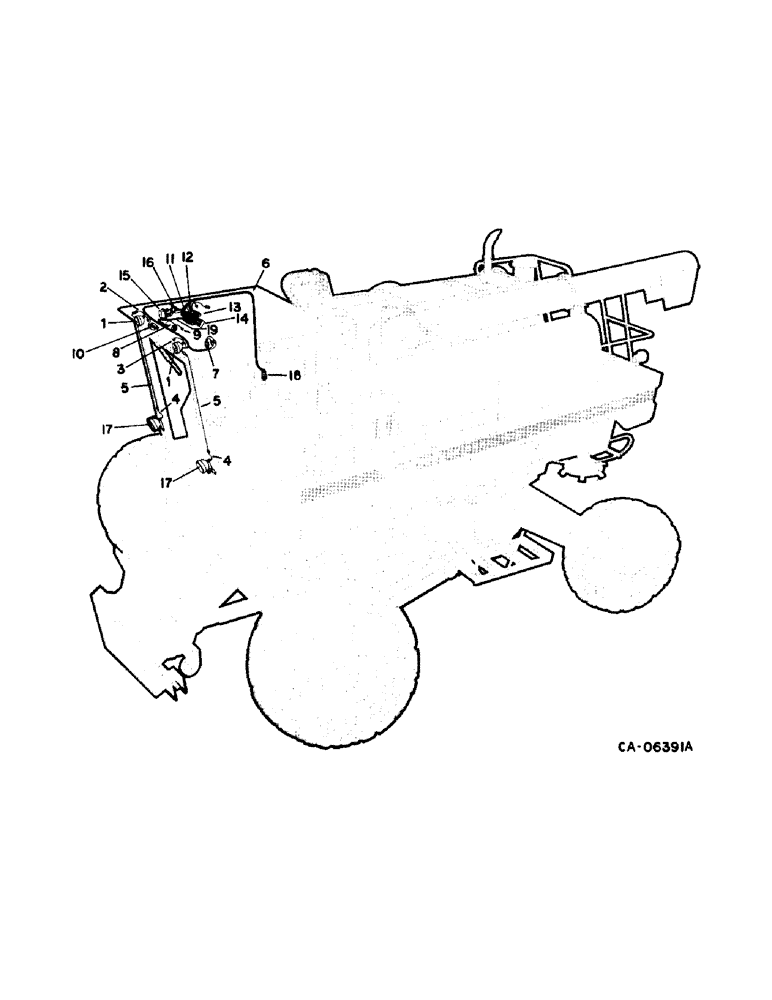

Запчасти Case IH 1470 (13-22) - SUPERSTRUCTURE, WIRING DIAGRAM, OPERATORS CAB (05) - SUPERSTRUCTURE

1

LAMP ASSY, flood and tail, refer to group 8 under lights and mountings

2шт.

2

188393R1

CONNECTOR, ELEC

CONNECTOR

7шт.

3

198162C1

CABLE

ASSY, upper light ground

2шт.

4

167412C1

CABLE

front lights, order cable assy, 245690C1

1шт.

5

196928C1

CABLE

ASSY, lower light bottom, order cable assy, 245690C1

1шт.

5

245690C1

CABLE

ASSY, lower light bottom, replaces 167412C1 & 196928C1

2шт.

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

3/8 x 27/32 x 5/16 D/C rub

2шт.

6

196808C3

HARNESS

ASSY, cab main

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

7

SWITCH, lower pressure, refer to this group under air conditioner evaporator

1шт.

8

BLOWER ASSY, cab, refer to this group under cab blower assy

1шт.

9

187671C1

CABLE

ASSY, blower ground

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

10

111397C2

LAMP

LIGHT ASSY, dome, service items are

1шт.

117940C1

LENS

dome lights

1шт.

NLS

NO LONGER SERVICED

LAMP, 1141 bulb

1шт.

24416R1

SCREW,Cross Oval Hd, #6 x 3/8"

no. 6-20 x 3/8 O/HDCR tap

1шт.

11

L70872

SWITCH

light

1шт.

111282C1

KNOB

1шт.

162214R1

NUT

jam

1шт.

12

109268C2

SWITCH

operators cab thermostat

1шт.

111282C1

KNOB

1шт.

162214R1

NUT

jam

1шт.

13

109369C91

LIGHT ASSY.

LAMP ASSY, air conditioner low pressure indicator light, serviceable items are

1шт.

71652C1

LENS

1шт.

200557H1

BULB,C2V, #1815, 14V

LAMP, no. 1815

1шт.

14

168822C2

SWITCH

blower

1шт.

111282C1

KNOB

1шт.

162214R1

NUT

jam

1шт.

15

437882C1

RELAY

air conditioner low pressure indicator light

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

1шт.

16

187526C1

BLOCK

ASSY, juntion

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

1шт.

17

LAMP ASSY, front, refer to group 8 under lights and mountings

1шт.

18

449797C1

CONTACT HOUSING,Male, 6 Pole

CONNECTOR, cab harness to combine

1шт.

19

83829C1

HARNESS

ASSY, blower motor, replaces 1255875C1, for use w/blower assy, 1255878C91

1шт.

25471R1

FUSE,20 Amp, Type 8AG

20 amp

1шт.

19

142988C1

HARNESS

ASSY, blower motor, for use w/blower assy, 143166C91 and 109246C94 assy

1шт.
