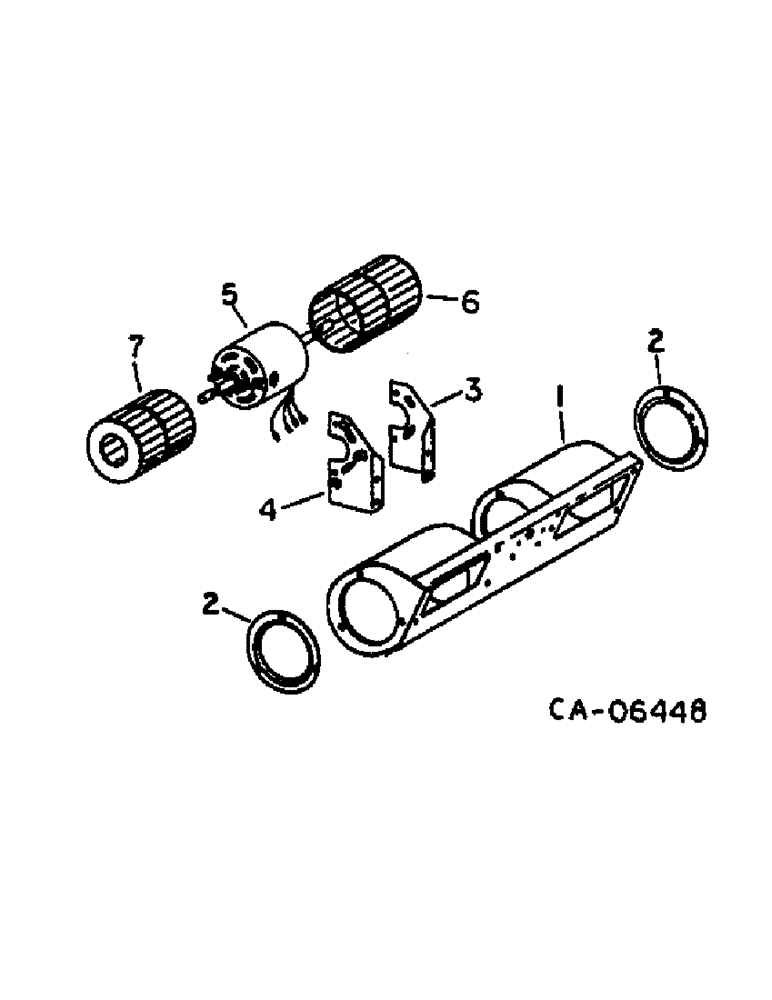

Запчасти Case IH 1470 (13-21) - SUPERSTRUCTURE, CAB BLOWER ASSY (05) - SUPERSTRUCTURE

109246C94

BLOWER

ASSY, sgm co. and torin corp, Serial Range: -10075

1шт.

143166C91

BLOWER

ASSY, permanent magnet, Serial Range: -10075

1шт.

1255878C91

BLOWER ASSY.

BLOWER ASSY, sgm co. and torin corp, includes ref. nos. 1 thru 7, Start Serial: 10076

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

1

117785C2

HOUSING ASSY.

HOUSING ASSY, blower

1шт.

2

65010C1

RETAINER

inlet

2шт.

24388R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 3/8"

1шт.

3

143167C1

SUPPORT ASSY.

SUPPORT ASSY, mounting RH

1шт.

66299C1

NUT

no. 10-32 hex.

1шт.

4

1262098C1

SUPPORT ASSY.

SUPPORT ASSY, resistor, for use w/1255878C91 blower assy

1шт.

66299C1

NUT

no. 10-32 hex.

1шт.

4

143168C1

SUPPORT ASSY.

SUPPORT ASSY, resistor, for use w/109246C94 and 143166C91 blower assy

1шт.

5

142990C2

MOTOR, ELECTRIC

MOTOR ASSY, for use with 143166C91 and 1255878C91 blower assys.

1шт.

190333A1R

REMAN-ELECTRIC MOTOR,12V

1470 IH, Reman For New P/N's 142990C2 & 190333A1,

1шт.

190333A1C

CORE-ELECTRIC MOTOR,12V

Return Number

1шт.

66299C1

NUT

no. 10-32 hex

1шт.

5

117784C5

MOTOR, ELECTRIC

MOTOR ASSY, for use with 109246C94 blower assembly

1шт.

1255876C1

RESISTOR

ASSY, for use w/blower assy, 1255878C91

1шт.

449603

SCREW

no. 6 x 3/8 P/HDCR tap

1шт.

143169C1

RESISTOR

ASSY, for use w/blower assy, 143166C91

1шт.

449603

SCREW

no. 6 x 3/8 P/HDCR tap

1шт.

6

539018R2

FAN

wheel LH C.W.

1шт.

7

539077R2

FAN

wheel RH C.C.W.

1шт.
