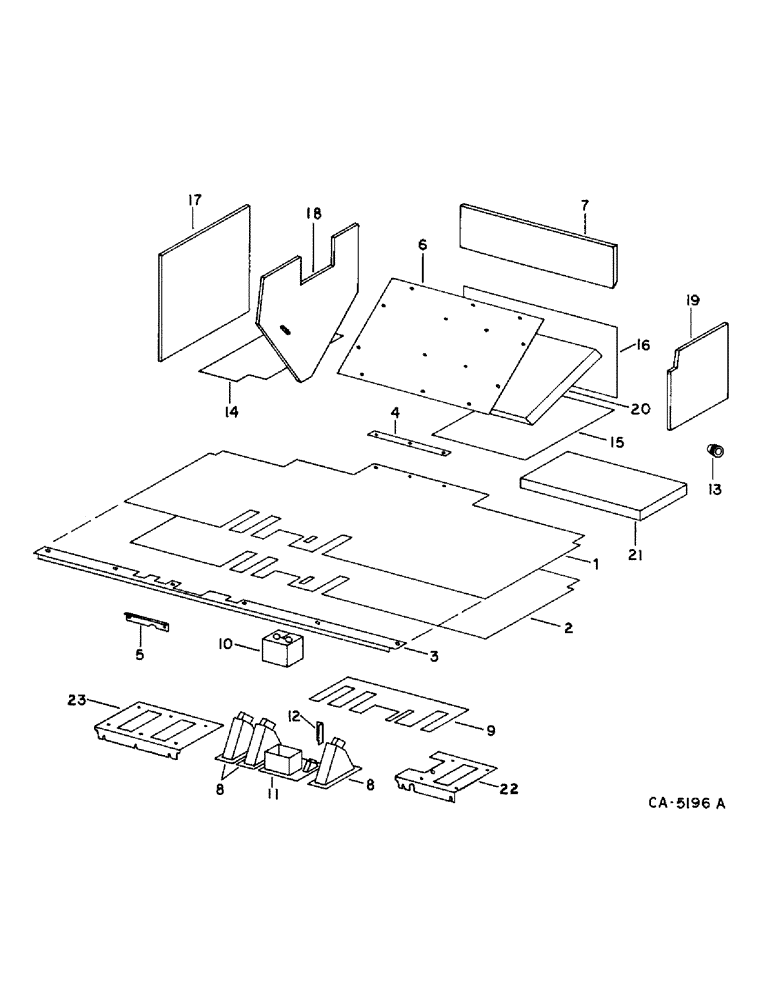

Запчасти Case IH 1470 (13-14) - SUPERSTRUCTURE, SOUND PACKAGE, OPERATORS CAB (05) - SUPERSTRUCTURE

1

195540C2

MAT

floor

1шт.

2

195541C1

INSULATOR

floor mat sound

1шт.

3

195538C2

SUPPORT

floor mat front

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

4

198990C1

BAR

floor mat rear hold down

1шт.

27294R1

SELF-TAP SCREW,Hex Washer, 1/4" - 14 x 3/4"

SCREW, 1/4-14 x 3/4 phc h/whd tap

1шт.

5

(Not used this application)

1шт.

6

195542C1

MAT

cover center support

1шт.

7

195543C1

INSULATOR

center rear support

1шт.

8

198074C1

ISOLATOR

INSULATOR, foot pedal

3шт.

9

SUPPORT, boot retainer, discontinued for service

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

10

1324844C1

SEAL

steering pedestal, replaces 1301263C1

1шт.

11

198075C1

INSULATOR

steering pedestal

1шт.

12

187581C1

ANGLE

steering pedestal boot

1шт.

13

198820C1

GROMMET

plug

1шт.

13

198821C1

GROMMET,3.18mm ID x 41.1mm OD x 26.9mm Thk

unloader cable, 1/8 ID

1шт.

13

198822C1

GROMMET,6.35mm ID x 41.1mm OD x 26.9mm Thk

cable seal, 1/4 ID

2шт.

13

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

cable seal, 3/8 ID

1шт.

13

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

cable seal, 1/2 ID

1шт.

13

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

cable seal, 5/8 ID

3шт.

14

196587C7

INSULATOR

SHEET, floor sound RH

1шт.

15

196586C1

SHEET

floor sound center

1шт.

16

196599C1

LINING

SHEET, sound center filler

1шт.

17

1301219C2

SHEET

RH console sound outer

1шт.

18

1301220C2

SHEET

RH console sound inner

1шт.

19

196598C2

SHEET

LH console sound outer

1шт.

20

196602C1

SHEET

center sound

1шт.

21

196604C1

SHEET

manual box sound

1шт.

22

187882C1

PLATE

SUPPORT, foot pedal boot hold down LH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

23

187883C2

SUPPORT

foot pedal boot hold down RH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

23

187883C2

SUPPORT

foot pedal boot hold down RH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

929460C1

FLUID

ADHESIVE, center mat and rear insulation, not illustrated

1шт.
