Запчасти Case IH 1470 (13-13) - SUPERSTRUCTURE, OPERATORS SEAL, SERIAL NO. 10001 AND ABOVE (05) - SUPERSTRUCTURE

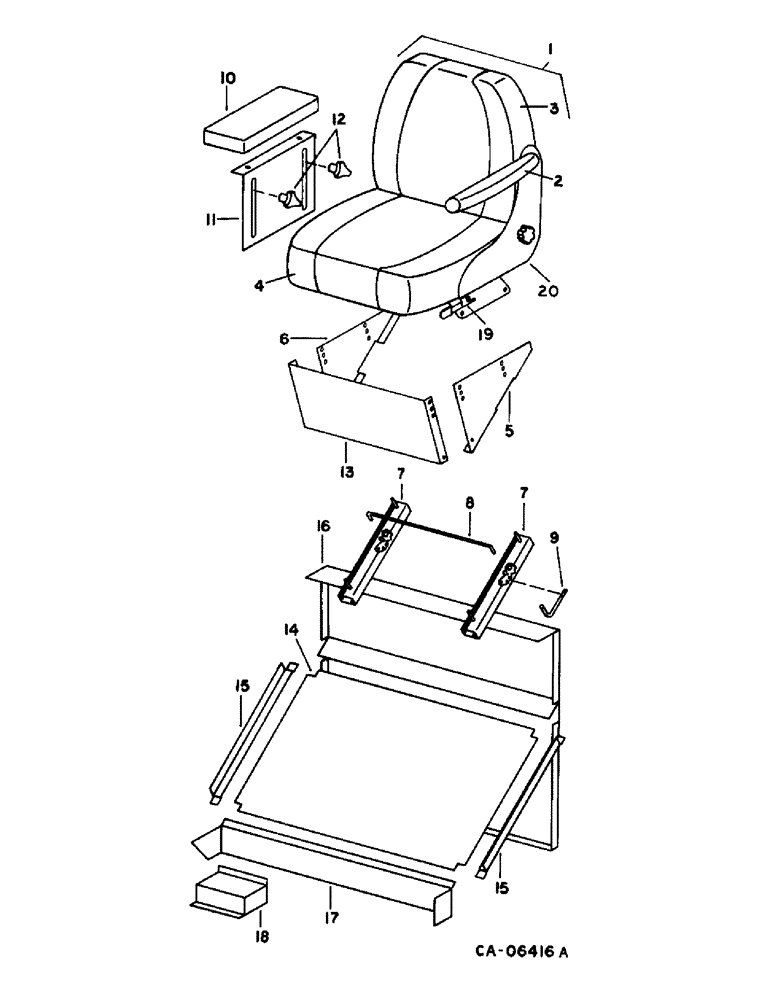

Схема запчастей Case IH 1470 - (13-13) - SUPERSTRUCTURE, OPERATORS SEAL, SERIAL NO. 10001 AND ABOVE (05) - SUPERSTRUCTURE
2
5
16
15
12
20
18
15
9
6
19
7
7
1
14
3
17
8
10
11
4
13

Артикул

Название

Примечание

Количество

1

1301411C91

SEAT

ASSY, operators, includes ref. nos. 2 thru 4, 19 and 20

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

2

180919C1

CUSHION

arm rest LH

1шт.

3

180918C1

CUSHION

ASSY, back rest

1шт.

4

180917C1

CUSHION

ASSY, seat

1шт.

5

91668C1

PLATE

SUPPORT, seat LH, replaces 1301408C1

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

6

91669C1

PLATE

SUPPORT, seat RH, replaces 1301409C1

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

7

91659C1

RAIL

ADJUSTER ASSY, seat, replaces 192995C1 by also ordering support, 91669C1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

192996C1

ROD

seat adjuster

1шт.

9

98199C1

ROD

seat adjuster, replaces 192997C1

1шт.

86511922

SCREW,Pan, #10 - 24 x 3/4"

no. 10 x 3/4 znp P/HDCR mach

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120391

WASHER,#10

.219 x .500 x .036

1шт.

10

1301216C3

ARMREST

REST, seat arm

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

11

192999C1

SUPPORT

arm rest mounting

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

12

196970C1

KNOB

arm rest

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

13

1301410C1

CHANNEL

seat bracket

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

14

193000C1

PLATE

platform center

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

15

193001C2

SUPPORT

ASSY, platform center side

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

16

193003C1

SUPPORT ASSY.

SUPPORT ASSY, platform center rear

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

17

193006C3

SUPPORT

ASSY, platform center front

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

18

195554C1

COVER ASSY

master brake cylinder

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 h/whd tap

1шт.

19

1310828C1

SUPPORT

tilt assy

1шт.

20

1310830C1

BRACKET

side RH

1шт.

20

1310835C1

BRACKET

SUPPORT, side LH

1шт.
