Запчасти Case IH 1470 (13-12) - SUPERSTRUCTURE, OPERATORS SEAT, SERIAL NO. 10000 AND BELOW (05) - SUPERSTRUCTURE

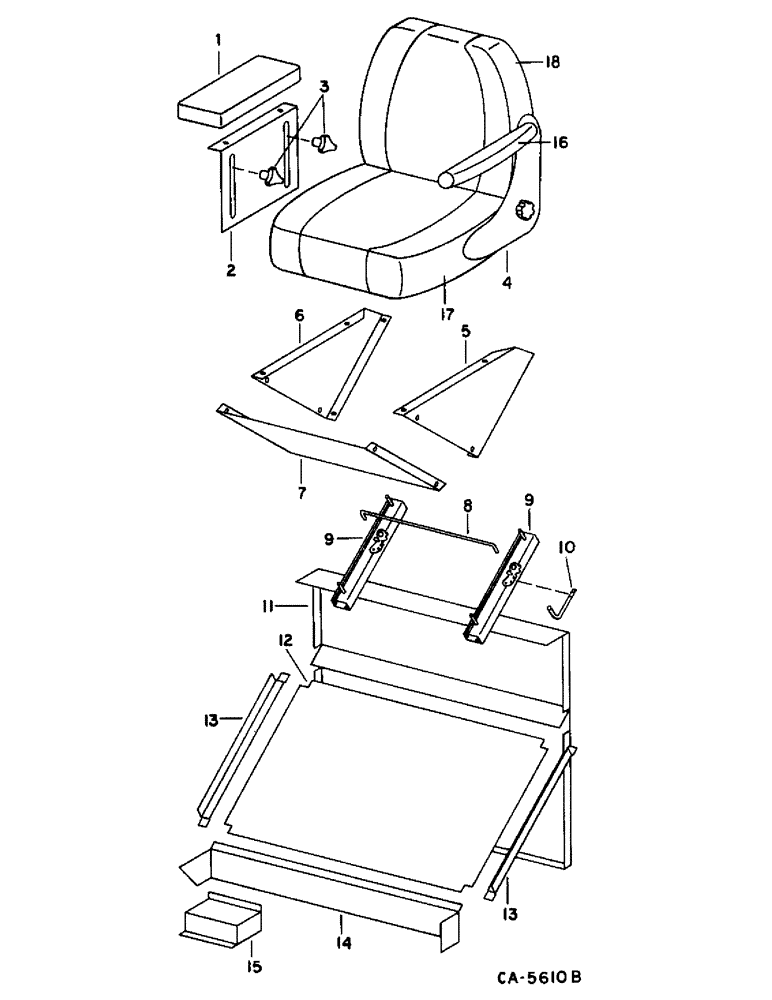

Схема запчастей Case IH 1470 - (13-12) - SUPERSTRUCTURE, OPERATORS SEAT, SERIAL NO. 10000 AND BELOW (05) - SUPERSTRUCTURE
7
1
18
17
10
13
14
11
4
6
16
5
12
15
9
3
13
8
9
2

Артикул

Название

Примечание

Количество

1

192998C1

RESTRICTOR

REST, seat arm

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 3/4 crg type 1

1шт.

2

192999C1

SUPPORT

arm rest mounting

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

3

196970C1

KNOB

arm rest

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

4

187567C1

SEAT

ASSY, operators, includes ref. no. 16 thru 18

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

5

192993C1

SUPPORT

seat LH

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

21496R1

WASHER

.344 x .750 x .051

1шт.

6

192994C1

SUPPORT

seat RH

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

21496R1

WASHER

.344 x .750 x .105

1шт.

7

194764C1

CHANNEL

seat bracket

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

8

192996C1

ROD

seat adjusting

1шт.

9

192995C1

ADJUSTER

ASSY, seat

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

192997C1

ROD

seat adjuster

1шт.

159947

HYD CONNECTOR

no. 10 x 3/4 znp P/HDCR mach

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120391

WASHER,#10

.219 x .500 x .036

1шт.

11

193003C1

SUPPORT ASSY.

SUPPORT ASSY, operator platform center rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

12

193000C1

PLATE

operator platform center

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

13

193001C2

SUPPORT

ASSY, operator platform center side

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

14

193006C3

SUPPORT

ASSY, operator platform center front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

15

195554C1

COVER ASSY

brake master cylinder

1шт.

167257

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 P/HDCR tap

1шт.

16

180919C1

CUSHION

ASSY, arm rest LH

1шт.

17

180917C1

CUSHION

ASSY, seat

1шт.

18

180918C1

CUSHION

ASSY, back rest

1шт.

Выбрано товаров: 45
