Запчасти Case IH 1470 (13-10) - SUPERSTRUCTURE, MAIN LADDER (05) - SUPERSTRUCTURE

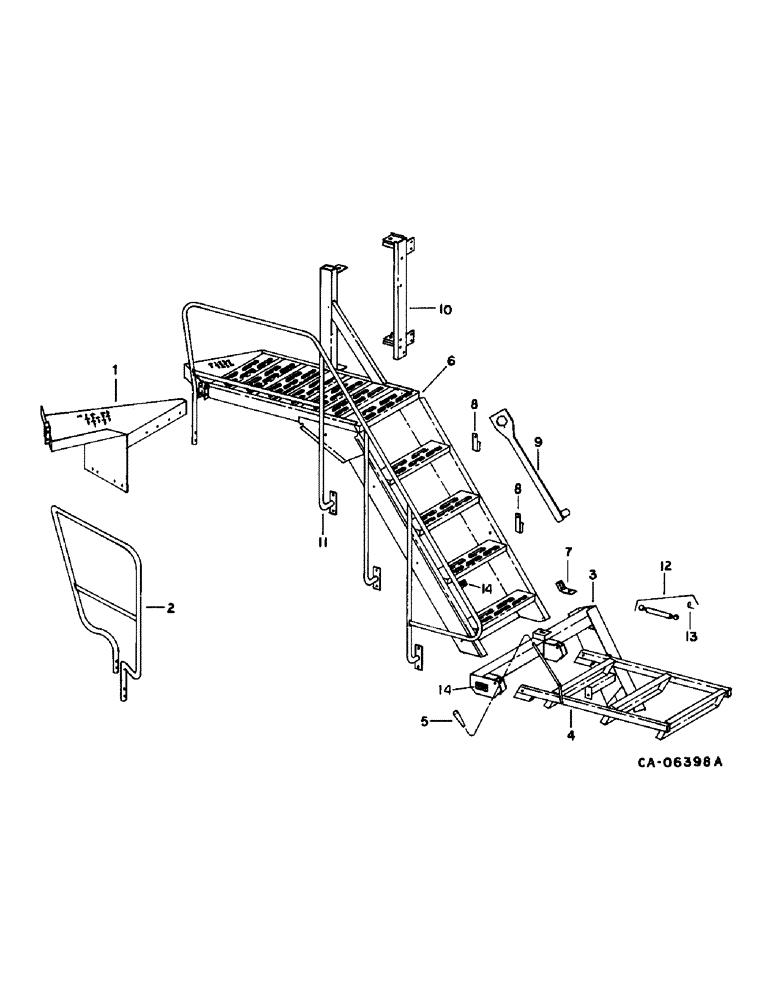

Схема запчастей Case IH 1470 - (13-10) - SUPERSTRUCTURE, MAIN LADDER (05) - SUPERSTRUCTURE
14
6
7
4
8
11
3
9
8
2
13
14
10
1
5
12

Артикул

Название

Примечание

Количество

1

1304498C1

SUPPORT

ASSY, platform extension

1шт.

18782R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 2

3/8 x 2-1/4 type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

28059R1

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW, 1/4 x 3/4 phc h/whd tap

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

1304502C1

RAIL

ASSY, extension step hand

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

3

1304745C91

SUPPORT

ASSY, ladder lower, includes ref. no. 14

1шт.

4

1304525C2

LADDER

ASSY, swinging

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

23303R1

CLEVIS PIN,3/8" x 2"

PIN, CLEVIS, 3/8" x 2"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

5

198934C1

HANDLE

gear shift

1шт.

6

1304732C91

LADDER

ASSY, platform, includes ref. no. 14

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

21341R1

HEADED PIN,1/2" x 1"

PIN, 1/2 x 1 hd type 1

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

7

1304553C1

SUPPORT

BRACKET, latch

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8-16 x 1 hex-hd lock

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

8

193332C1

CLIP

rocking wrench

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

9

1307617C1

SPECIAL WRENCH

TOOL ASSY, rocking, replaces 184730C1

1шт.

10

1304519C1

SUPPORT

ASSY, grain tank mounting

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

11

1304530C2

RAIL

HANDRAIL ASSY, ladder

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 type 1

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

12

1304523C91

CYLINDER

gas spring, includes ref. no. 13

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

473184C1

FITTING

STUD, ball

2шт.

13

1304647C1

CLIP

retaining

2шт.

14

2754442R1

PRODUCT GRAPHIC

danger

2шт.

Выбрано товаров: 45
