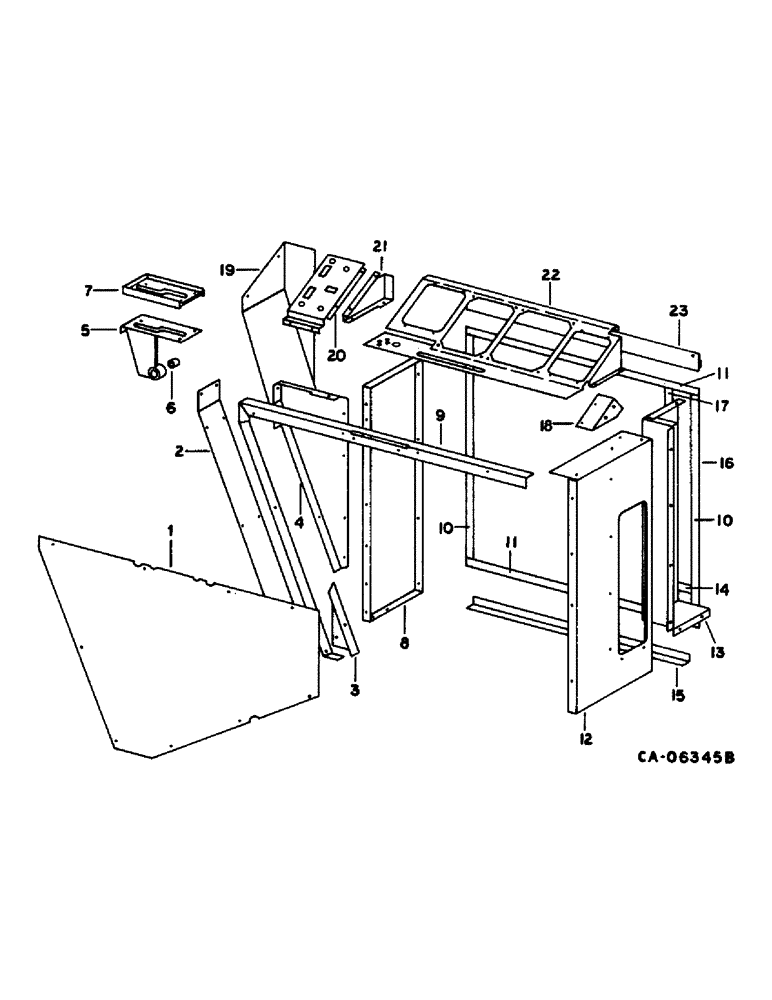

Запчасти Case IH 1470 (13-08) - SUPERSTRUCTURE, RIGHT CONSOLE, SERIAL NO. 10001 AND ABOVE (05) - SUPERSTRUCTURE

1

193035C3

LARGE PLATE

PLATE, inner

1шт.

167163

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, no. 10NF x 1/2 P/HDCR tap

1шт.

2

1317106C1

SUPPORT

extension front

1шт.

167163

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, no. 10NF x 1/2 P/HDCR tap

1шт.

3

195991C1

SUPPORT

extension lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

4

195992C2

SUPPORT

extension

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

5

193277C91

SUPPORT ASSY.

SUPPORT ASSY, extension, includes ref. no. 6

1шт.

167257

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 P/HDCR tap

1шт.

6

165704C1

BUSHING

extension support

1шт.

7

198988C1

COVER

extension support

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW, #10-16 x 3/4 phc O/HDCR tap

1шт.

8

193064C8

SUPPORT

front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

9

193031C3

SUPPORT

ASSY, front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

1254276C1

PUSH-ON NUT

pal

1шт.

10

STRIP, cover, use 26.7 in. from bulk stock marked 195917C2

2шт.

11

STRIP, cover, use 27.2 in. from bulk stock marked 195917C2

2шт.

12

1301214C1

SUPPORT

rear

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

13

1301215C4

PLATE ASSY.

SUPPORT, electrical components

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

14

STRIP, cover, use 3. in. from bulk stock marked 195917C2

1шт.

15

193033C2

ANGLE

outer lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

16

1301218C1

PLATE

outer

1шт.

167257

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 P/HDCR tap

1шт.

17

STRIP, cover, use 25.4 in. from bulk stock marked 195917C2

1шт.

18

1301217C1

ANGLE

fuse holder mounting

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

19

1301213C1

SUPPORT

front extension lower

1шт.

167163

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, no. 10NF x 1/2 P/HDCR tap

1шт.

20

1301212C3

SUPPORT

front top

1шт.

167163

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, no. 10NF x 1/2 P/HDCR tap

1шт.

21

1301211C1

SUPPORT

front top

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

51/6 flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

no. 1/4 x 3/4 t/hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

22

1301210C4

SUPPORT

top

1шт.

1329861C1

PLATE

throttle control, used only with support, 1301210C4

1шт.

167163

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, no. 10NF x 1/2 P/HDCR tap

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.

23

1301334C1

SUPPORT

RH outer cover

1шт.
