Запчасти Case IH 1470 (13-04) - SUPERSTRUCTURE, LEFT CONSOLE (05) - SUPERSTRUCTURE

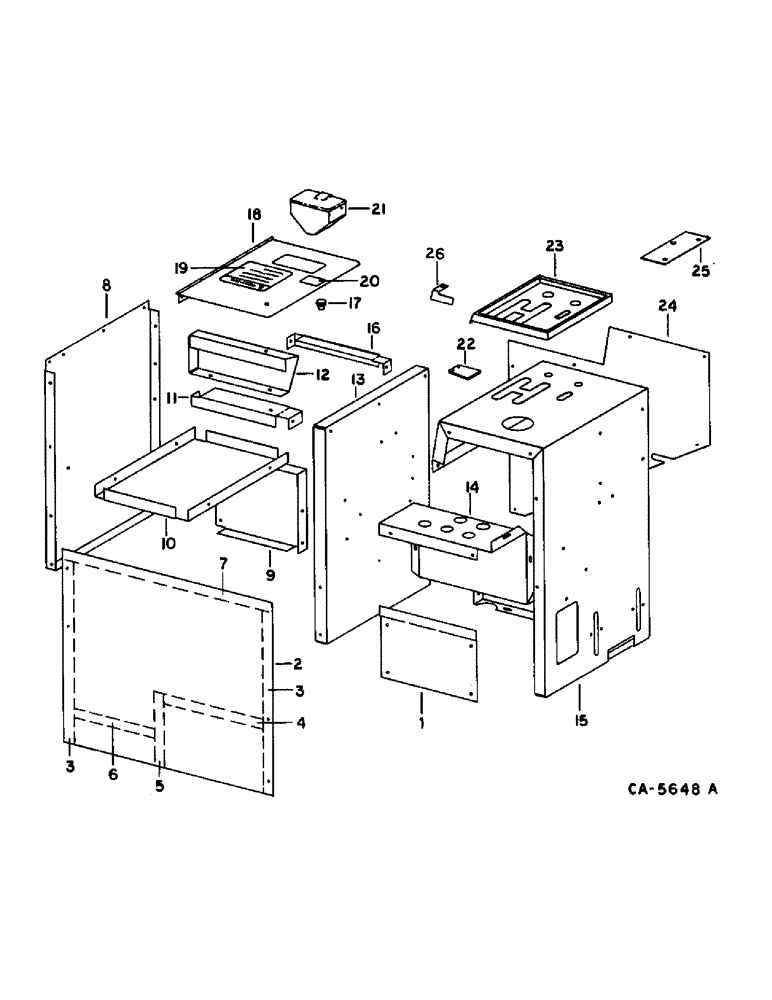

Схема запчастей Case IH 1470 - (13-04) - SUPERSTRUCTURE, LEFT CONSOLE (05) - SUPERSTRUCTURE
17
5
26
12
1
15
6
25
2
20
4
19
7
24
23
8
3
9
14
13
3
11
16
22
21
10
18

Артикул

Название

Примечание

Количество

1

193062C1

SUPPORT

left console lower outer, Serial Range: -10000

1шт.

1

1301517C1

SUPPORT

left console lower outer, Start Serial: 10001

1шт.

167257

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 P/HDCR tap

1шт.

2

193061C3

PLATE

left console outer cover

1шт.

167257

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 P/HDCR tap

1шт.

3

STRIP, console cover, use 18.3 in. from bulk stock marked 195917C2

2шт.

4

STRIP, console cover, use 11.8 in from bulk stock marked 195917C2

1шт.

5

STRIP, console cover, use 7. in. from bulk stock marked 195917C2

1шт.

6

STRIP, console cover, use 9. in. from bulk stock marked 195917C2

1шт.

7

STRIP, console cover, use 23. in. from bulk stock marked 195917C2

1шт.

8

193009C3

SUPPORT

LH console front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

9

196595C1

SUPPORT

manual box lower inner, Serial Range: -10000

1шт.

10

193010C2

SUPPORT

manual box

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

11

193011C1

SUPPORT

manual box cover left

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

12

193013C1

SUPPORT

operator cab LH side

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

13

193008C4

SUPPORT

manual box rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

14

195533C4

SUPPORT

left console lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

15

193065C7

SUPPORT

operator control rear left

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

16

193012C1

SUPPORT

manual box cover right

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

17

198981C1

KNOB

manual box door

1шт.

160046

SCREW,Cross Pan Hd, #10 - 32 x 1/2"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

18

186187C92

DOOR

ASSY, LH manual box, includes ref. nos. 19 and 20

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

19

2753929R5

DECAL

PRODUCT GRAPHIC, safety and operating instr.

1шт.

20

61907C1

DECAL

PRODUCT GRAPHIC, operating caution

1шт.

21

111396C1

ASH TRAY

TRAY, ash

1шт.

22

195239C2

BAR

H platform filler

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

23

198805C1

COVER

left console

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW, no. 10-16 x 3/4 phc O/HDCR tap

1шт.

24

193056C1

PLATE

left console inner

1шт.

167163

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, no. 10NF x 1/2 P/HDCR tap

1шт.

25

(Not used this application)

1шт.

26

1304694C1

ANGLE

PLATE, third gear lockout activator, Serial Range: -10000

1шт.

107377H

LOCK NUT,#10-32, GB

NUT, LOCK, #10-32, GB

1шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

no. 10NF x 1/2 znp R/HDS mach

1шт.

120391

WASHER,#10

.219 x .500 x .036

1шт.
