Запчасти Case IH 1470 (13-01) - SUPERSTRUCTURE, OPERATORS PLATFORM (05) - SUPERSTRUCTURE

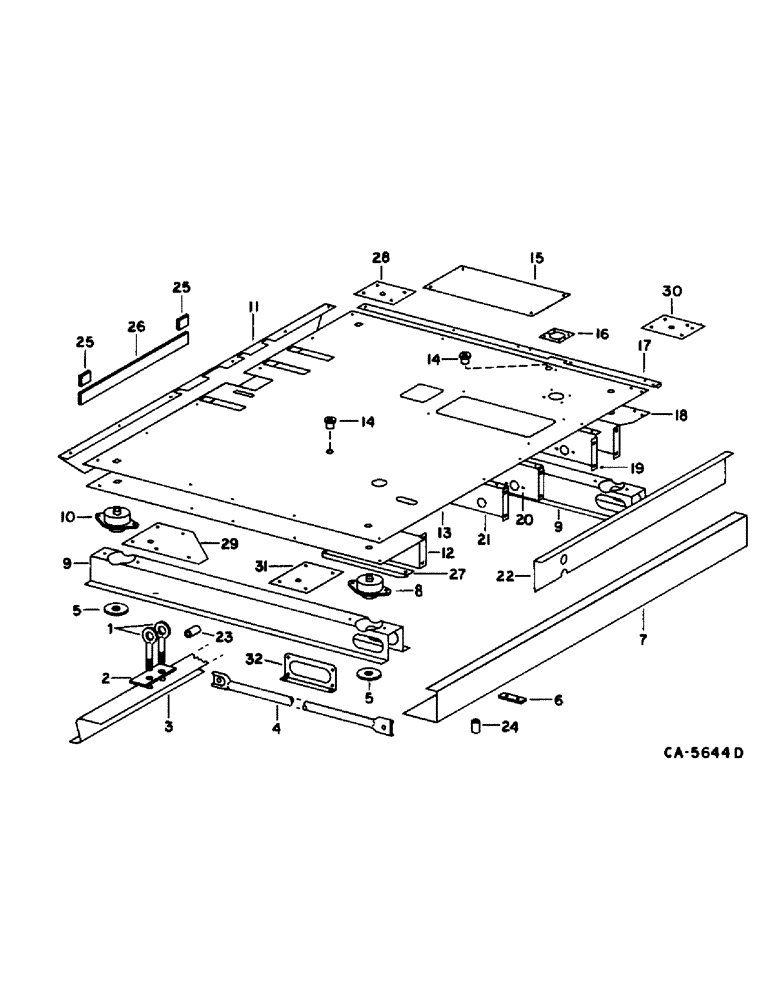

Схема запчастей Case IH 1470 - (13-01) - SUPERSTRUCTURE, OPERATORS PLATFORM (05) - SUPERSTRUCTURE
29
18
25
23
9
32
28
4
21
5
22
2
12
14
30
13
15
7
3
14
25
6
19
11
24
16
31
5
10
8
17
27
1
9
26
20

Артикул

Название

Примечание

Количество

1

165648C2

BOLT,3/4" - 10 x 4 1/2"

platform front leveling eye

4шт.

280954

NUT,3/4"-10, G5

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 jam type 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

2

196592C2

BAR

platform front leveling

2шт.

3

193021C6

SUPPORT

operators platform front

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

4

193038C1

ROD

operators platform extension

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

5

196591C1

WASHER

isolation mount

4шт.

6

195715C1

BAR

platform rear mtg channel, .5

2шт.

6

193428C1

BAR

rear mounting channel, .625

2шт.

7

193022C2

SUPPORT

operators platform rear

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

179890

LATCH

1/2 x 2-1/4 pln type 5

1шт.

8

196950C2

MOUNTING PARTS

INSULATOR, rear vibration

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

9

195507C6

SUPPORT

operator platform side

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

10

117722C4

INSULATOR

front vibration

2шт.

10

117722C4GV

INSULATOR

front vibration

2шт.

1317014C1

CARRIAGE BOLT,Short Sq Nk, 3/4" - 10 x 5", Type 5

BOLT, 3/4 x 5 crg sht neck type 5

1шт.

NLS

NO LONGER SERVICED

BOLT, 3/4 x 4-1/2 type 5

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

280954

NUT,3/4"-10, G5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

24771R1

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

478258R1

WASHER

1.156 x 1.750 x .105

1шт.

11

195517C4

SUPPORT

operators platform front

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 crg type 1

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

12

195520C3

SUPPORT

operators platform LH

1шт.

13

195558C8

PLATE

operators, platform

1шт.

18628R1

BOLT,Short NK, 1/4"-20 x 1 1/4", G2

1/4 x 1-1/4 crg type 1

1шт.

187797C1

BOLT,Hex Serr Flg, 1/4" - 20 x 1"

1/4 x 1 hex-hd flange

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

14

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

operators platform

1шт.

14

195800C1

GROMMET

plug, 1 in. dia. hole, condensate hole, w/o air cond.

2шт.

15

193029C2

PLATE

brake access rear

1шт.

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

1/4 x 1/2 h/hd tap

1шт.

16

187533C1

BAR

platform wiring hole

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

17

196969C4

SUPPORT

platform stiffener right side

1шт.

18

195518C6

SUPPORT

operators platform RH

1шт.

19

195519C4

SUPPORT

operators platform right center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

20

195521C3

SUPPORT

operators platform center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

21

195557C7

SUPPORT

operator platform left center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

22

195516C2

SUPPORT

operators platform rear

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 crg type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

23

591070R1

SPACER,3/4" Pipe x 1 7/16"

front leveling eyebolt

2шт.

280954

NUT,3/4"-10, G5

1шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

3/4 x 4-1/4 type 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

24

(Not used this application)

1шт.

25

187885C1

SEALING STRIP

STRIP, cab sill to front support seal, use 2 in., 50.8 mm

1шт.

26

187885C1

SEALING STRIP

STRIP, cab sill to front support seal, use 26.1 in.

1шт.

27

183680C1

ANGLE

platform stiffener LH

1шт.

28

183668C2

PLATE

platform right front

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

29

183669C2

PLATE

platform left front

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

30

183678C1

PLATE

platform right rear

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

31

183679C1

PLATE

platform left rear

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

32

(Not used this application)

1шт.

Выбрано товаров: 86
