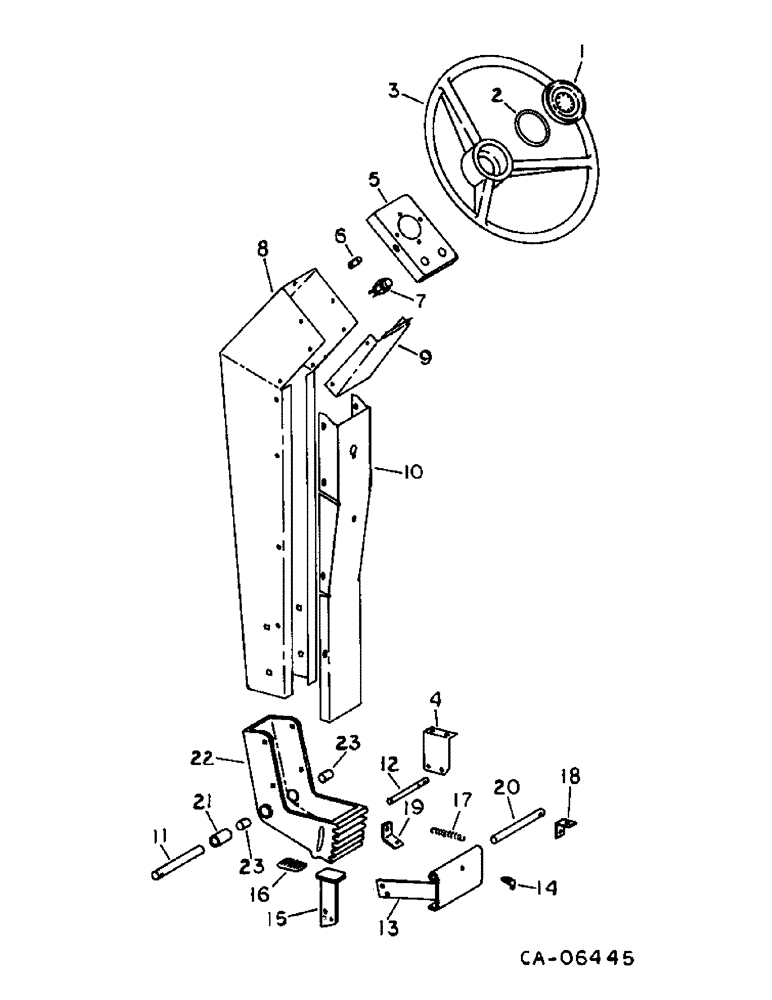

Запчасти Case IH 1470 (05-01) - STEERING, STEERING WHEEL (04) - STEERING

1

68837C2

CAP

ASSY, steering wheel

1шт.

2

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32

1шт.

3

385156R1

WHEEL (STEERING)

WHEEL, steering

1шт.

3

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

4

193263C1

SUPPORT

steering pivot stop pin

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

5

1301362C1

SUPPORT

steering pump

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 type 1

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

6

INDICATOR, light, refer to group 8 under wiring diagram, left turn, grain tank unloader, rear lights and fuel pump

1шт.

7

200557H1

BULB,C2V, #1815, 14V

LAMP, type C-2V trade #1815, refer to group 8 under wiring diagram, left turn, grain tank unloader, rear lights and fuel pump

1шт.

8

215723C3

POST

SUPPORT ASSY, steering

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

9

1301364C1

SUPPORT

COVER ASSY, column upper

1шт.

167257

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 P/HDCR tap

1шт.

10

1301363C1

SUPPORT

CHANNEL, post cover

1шт.

167257

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 P/HDCR tap

1шт.

11

193233C1

PIN

steering column pivot

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

12

193234C1

PIN

steering pivot stop

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

13

193235C2

PIVOT ASSY.

PIVOT ASSY, steering release

1шт.

14

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive, Used with 193235C1 only

1шт.

15

193238C1

PEDAL ASSY.

PEDAL ASSY, steering release

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

no. 1/4 x 3/4 t/hds

1шт.

16

357444C1

PEDAL

PAD, foot pedal

1шт.

17

183608C1

SPRING

pedal return

1шт.

18

193244C1

ANGLE

steering column pivot

1шт.

19

193245C1

ANGLE

SUPPORT, steering release spring

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

20

193246C1

PIN

steering release

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

20869R1

WASHER

.531 x .875 x .054

1шт.

21

460416R1

SPACER

steering column pivot shaft

1шт.

22

198528C91

PIVOT

W/BUSHINGS, steering column, includes ref. no. 23

1шт.

23

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

pivot

2шт.

SB 13-87 explains the 9434727R1 Retaining nut..10/19/95

1шт.
