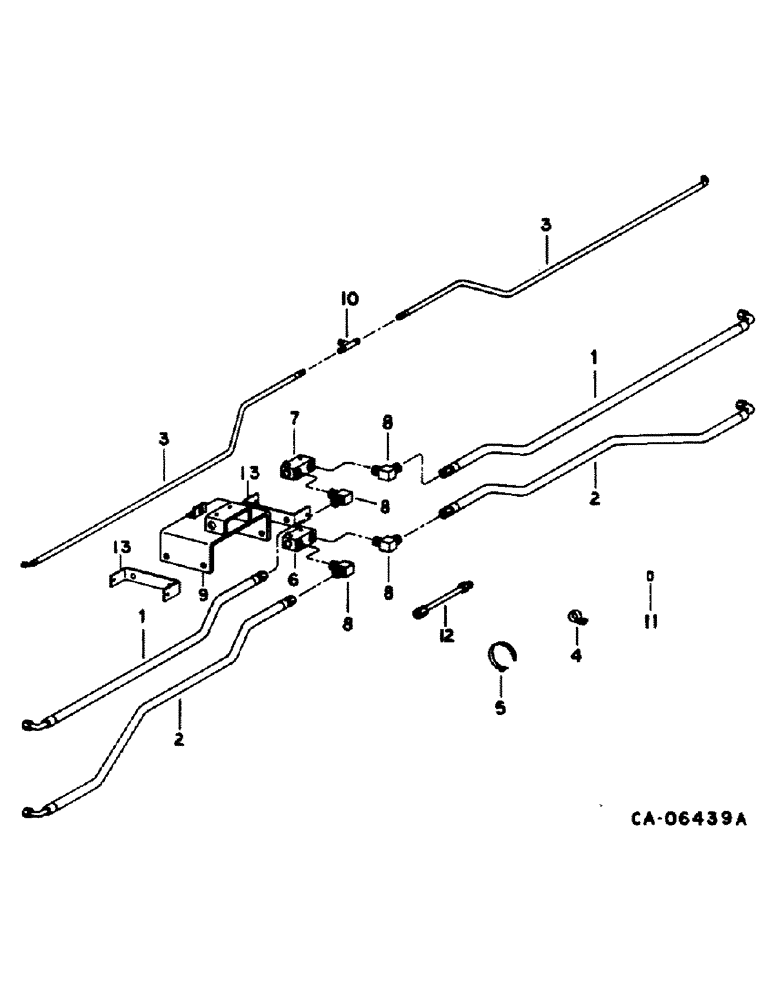

Запчасти Case IH 1420 (15-04) - WHEEL AND TRACTION, AXLE HYDRAULIC HOSES AND POSITRACTION Wheels & Traction

1

1301614C1

HOSE

ASSY, wheel motor, 45 in., 1143 mm

2шт.

2

1301615C1

HOSE ASSY.

HOSE ASSY, wheel motor, 58 in., 1473.2 mm

2шт.

3

1301496C1

HOSE ASSY.

HOSE ASSY, wheel motor, 72 in., 1828.8 mm

2шт.

4

299565C1

CLAMP

.688 dia. znp coated

2шт.

4

28149R1

CLAMP,1 1/4", Insul, 1/2" Bolt

1.25 dia. znp coated, Includes: bolts, nut and washer

4шт.

20617R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

5/16 x 1 type 8

1шт.

9413977

NUT

5/16 phc p/t lock type 8

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

25235R1

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 8

5/16 x 2-1/2 phc type 8

1шт.

5

533939R1

STRAP

hyd hose tie

4шт.

6

1310543C1

LOCK VALVE

VALVE ASSY, forward positraction

1шт.

7

1310544C1

LOCK VALVE

VALVE ASSY, reverse, Includes: bolt and nut

1шт.

25958R1

BOLT,Hex, 3/8" - 16 x 3", Gr 8

3/8 x 3 type 8

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc p/t lock type 8

1шт.

8

1310580C1

ELBOW UNION

ELBOW, 1-1/6-12 90 deg hyd, Includes: o-ring

4шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

1шт.

9

1310546C1

SUPPORT ASSY.

SUPPORT, positraction valve

1шт.

10

1310575C1

TEE

hyd bulkhead

1шт.

11

27633R1

SPACER,3/8" X-Strng Pipe x 1 1/4"

3/8 x 1.250 pipe

2шт.

12

Not used in this application

1шт.

13

1310933C1

CHANNEL

valve, Includes: bolt, nuts, screw and washer

2шт.

88691

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd

Hex, 3/4"-10 x 1-1/4", G5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

280954

NUT,3/4"-10, G5

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.
