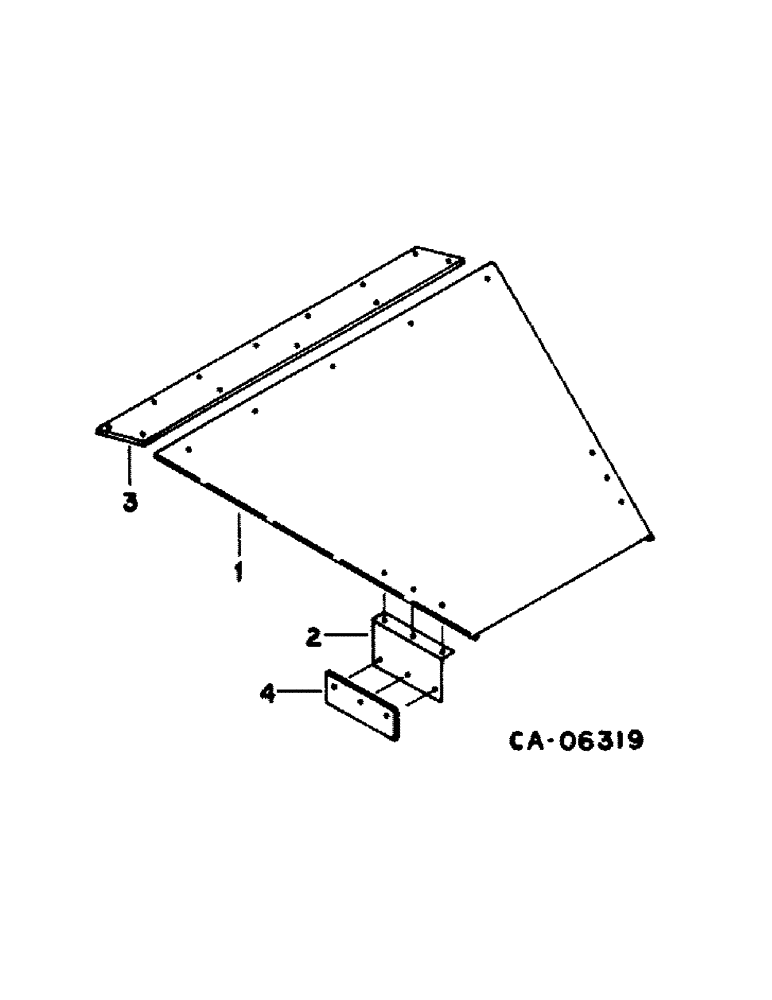

Запчасти Case IH 1420 (14-05) - SUSPENSION, SHIELD STEERING AXLE Suspension

1

183306C1

GUARD ASSY.

SHIELD ASSY, steering axle support, without power guide wheel drive

1шт.

1

1318181C1

SHIELD

ASSY, steering axle support, with power guide wheel drive, Includes: nut and screw

1шт.

2

183308C1

SUPPORT

axle shield

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

3

183311C1

STRIP

axle shield, Includes: nut, screw and washer

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

4

183309C2

STRIP

steering axle shield, Includes: screw, nut and washer

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.
