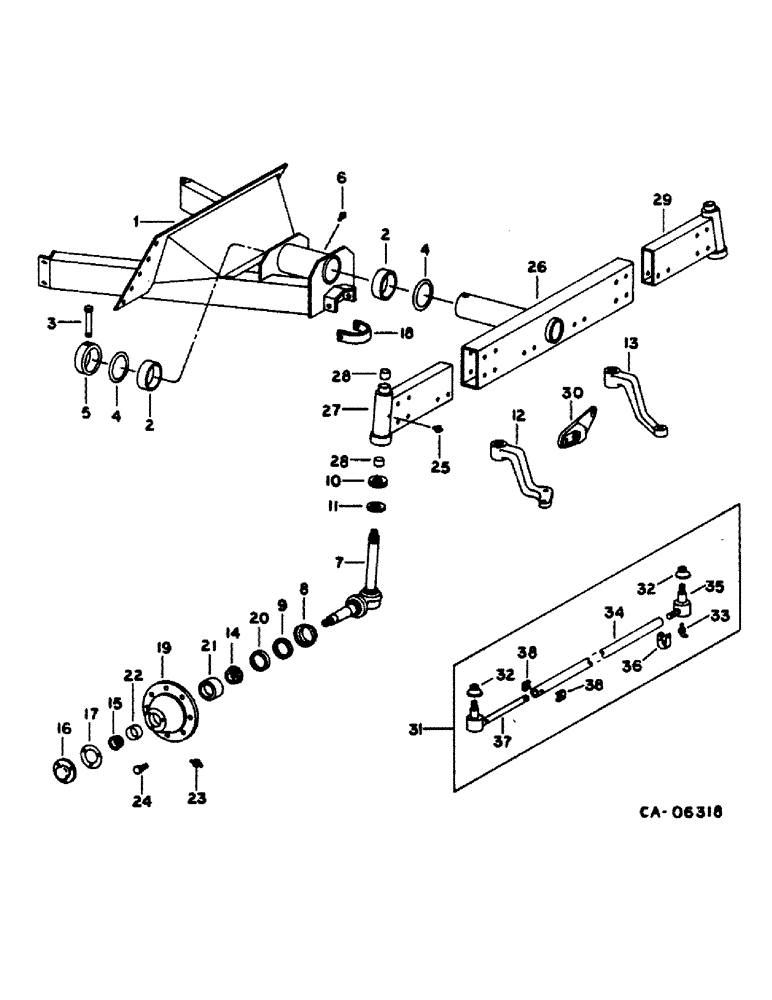

Запчасти Case IH 1420 (14-03) - SUSPENSION, STEERING AXLE, SUPPORT AND TIE ROD, ADJUSTABLE Suspension
№
Артикул
Название
Примечание
Количество
1
195120C92
SUPPORT
ASSY, steering axle, Includes: bolts, nuts, washer and Ref. no. 2
1шт.
195312C1
FLANGE NUT,Flg, USR, 1/2"-13, G8
1/2 phc flange lock type 8
1шт.
380916R1
BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 8
3/4 x 1-1/2 type 8
1шт.
177744C1
FLANGE NUT,Flg, USR, 3/4"-10
3/4 phc flange lock type 8
1шт.
25712R1
WASHER
.812 x 1.500 x .179 hdn
1шт.
2
177751C1
BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L
axle pivot
2шт.
3
28147R1
HEADED PIN,3/4" x 5 1/2"
PIN, 3/4 x 5-1/2 std hd, Includes: pin
1шт.
217973
COTTER PIN,1/4" x 1 1/4"
Pin, Split (Cotter), 1/4" x 1-1/4"
1шт.
4
168385C2
WASHER,102.6mm ID x 127mm OD x 3.3mm Thk
steering axle pivot tube
2шт.
5
182795C1
BUSHING,101.68mm ID x 127mm OD x 44.7mm L
steering axle
1шт.
6
19700R91
FITTING
3/16 45 deg lub
1шт.
7
196334C2
KNUCKLE
ASSY, steering, Includes: nut, pin and Ref. nos. 8 & 9
2шт.
427646
SLOTTED NUT,7/8"-14, G5
NUT, 7/8-NF slt type 5
1шт.
137228
COTTER PIN,5/32" x 1 1/2"
PIN, SPLIT (COTTER), 5/32" x 1 1/2"
1шт.
WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk
.89 x 1.88 x .194 znd, Includes: nut and washer
1шт.
427547
JAM NUT,Jam, 1 3/8"-12, G5
1-3/8-NF jam type 5
1шт.
22827R1
WASHER
1.406 x 2.750 x .042
1шт.
7
1315374C91
STEERING KNUCKLE
KNUCKLE ASSY, steering, Includes: pin, nuts, washer and Ref. nos. 8 and 9
2шт.
Used with 11.00-16, 12.4-16 and 11.2-24 steering tires
1шт.
934797R1
COTTER PIN,M6.3 x 63
PIN, 6.3 x 60mm pln cot
1шт.
427547
JAM NUT,Jam, 1 3/8"-12, G5
1-3/8-NF jam type 5
1шт.
22827R1
WASHER
1.406 x 2.750 x .042
1шт.
1259683C1
NUT
m30 x 1.5 pln slt
1шт.
8
48701D
SHIELD
steering knuckle dust
2шт.
8
1259522C1
SHIELD
STEERING KNUCKLE DUST
2шт.
Used with 11.00-16, 12.4-16 and 11.2-24 steering tires
1шт.
9
370254R91
OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk
steering knuckle oil
2шт.
9
491641C1
SEAL
steering knuckle oil,replaces 1259523C1
2шт.
Used with 11.00-16, 12.4-16 and 11.2-24 steering tires
1шт.
10
185106C91
BEARING ASSY,44.2mm ID x 70.1mm OD x 19.05mm W
steering knuckle thrust
2шт.
11
15943DA
SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk
Steering knuckle pivot felt
2шт.
12
193911C2
LEVER
steering knuckle LH
1шт.
13
193912C2
LEVER
steering knuckle RH
1шт.
14
G15215
ROLLER BEARING
BEARING ASSY, steering hub inner cone
2шт.
14
ST753B
BEARING ASSY,66.67mm ID x 22mm W
steering hub inner cone
2шт.
Used with 11.00-16, 12.4-16 and 11.2-24 steering tires
1шт.
15
618023R91
BEARING ASSY,34.93mm ID x 18.2mm W
BEARING ASSY, steering hub outer cone
2шт.
15
130504H
ROLLER BEARING,42.887 mm ID x 25.48 mm
BEARING ASSY, steering hub outer cone
2шт.
Used with 11.00-16, 12.4-16 and 11.2-24 steering tires
1шт.
16
369859R1
CAP
steering hub, Includes: bolt and washer
2шт.
180075
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
5/16 x 5/8 type 5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
16
189425C1
HUB CAP
CAP, front wheel hub, Includes: washer
2шт.
Used with 11.00-16, 12.4-16 and 11.2-24 steering tires
1шт.
30181R1
WASHER,M30 x 56.5 x 5, HT
32.8 x 56 x 5 mm phc
1шт.
17
369860R1
GASKET,0.79mm Thk
steering hub cap
2шт.
18
196084C2
CHANNEL
combine tow, Includes: bolt and nut
1шт.
24876R1
BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8
1шт.
195313C1
FLANGE NUT,Flg, USR, 5/8"-12
5/8 phc flange lock type 8
1шт.
19
1323559C1
HUB
ASSY, steering tire, replaces 391824R11, Includes: Ref. nos. 20 thru 22
2шт.
19
1259528C91
WHEEL
HUB ASSY, steering tire
2шт.
Used with 11.00-16, 12.4-16 and 11.2-24 steering tires
1шт.
20
48703D
RETAINER
steering hub seal
2шт.
20
1264549C1
SEALING WASHER,106mm ID x 130mm OD x 1.6mm Thk
RETAINER, steering hub seal
2шт.
Used with 11.00-16, 12.4-16 and 11.2-24 steering tires
1шт.
21
619387R1
BEARING CUP
BEARING, steering hub inner cup
2шт.
21
13390D
ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"
steering hub inner cup
2шт.
Used with 11.00-16, 12.4-16 and 11.2-24 steering tires
1шт.
22
618024R1
BEARING CUP,65.113mm OD x 13.97mm W
Steering hub outer
2шт.
22
130503H
BEARING CUP
BEARING, steering hub outer cup
2шт.
Used with 11.00-16, 12.4-16 and 11.2-24 steering tires
1шт.
23
19700R91
FITTING
3/16 45 deg lub
2шт.
24
414064C1
BOLT,Hex, 9/16" - 18 x 1 1/2"
steering hub
1шт.
25
80722
LUBE NIPPLE,3/16" x .55" lg, Drive
FITTING, 3/16 str drive lub
2шт.
26
182799C2
AXLE
ASSY, wide adj, 67 to 91 in., 1701.8 to 2311.4 mm
1шт.
26
182800C2
AXLE
ASSY, narrow adj, 56 to 68 in., 1422.4 to 1727.2 mm
1шт.
27
177763C91
EXTENSION ASSY.
EXTENSION ASSY, LH wide adj, 67 to 91 in., 1701.8 to 2311.4 mm, Includes: bolt, nut and Ref. no. 28
1шт.
27
178488C91
EXTENSION
ASSY, LH narrow adj, 56 to 68 in., 1422.4 to 1727.2 mm, Includes: bolt, nut and Ref. no. 28
1шт.
NLS
NO LONGER SERVICED
BOLT, 3/4 x 4-1/2 type 5
1шт.
177744C1
FLANGE NUT,Flg, USR, 3/4"-10
3/4 phc flange lock type 8
1шт.
28
376099R1
BUSHING
axle spindle pivot tube
2шт.
29
177764C91
EXTENSION ASSY.
EXTENSION ASSY, RH wide adj, 67 to 91 in., 1701.8 to 2311.4 mm, Includes: Ref. no. 28
1шт.
29
178489C91
EXTENSION
ASSY, RH narrow adj, 56 to 68 in., 1422.4 to 1727.2 mm, Includes: bolt, nut and Ref. no. 28
1шт.
271781
BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5
BOLT, 3/4 x 4-1/2 type 5
1шт.
177744C1
FLANGE NUT,Flg, USR, 3/4"-10
3/4 phc flange lock type 8
1шт.
30
193917C1
ANCHOR
steering cylinder, 67 to 91 in., 1701.8 to 2311.4 mm, Includes: bolt and nut
1шт.
21218R1
BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5
3/4 x 5-1/4 type 5
1шт.
177744C1
FLANGE NUT,Flg, USR, 3/4"-10
3/4 phc flange lock type 8
1шт.
31
ROD ASSY, adjustable tie, 67 to 91 in., 1701.8 to 2311.4 mm, furnish applicable ref. nos. 34 thru 38
1шт.
31
ROD ASSY, adjustable tie, 56 to 68 in., 1422.4 to 1727.2 mm, furnish applicable ref. nos. 34 to 38, Includes: nut, pin and washer
1шт.
NLS
NO LONGER SERVICED
5/8-NF slt type 5
1шт.
137204
COTTER PIN,1/8" x 1 1/2"
PIN, SPLIT (COTTER), 1/8" x 1 1/2"
1шт.
464623R1
WASHER
.656 x 1.500 x .105
1шт.
32
382562R1
SEAL
tie rod end
2шт.
232-4636
LOCK NUT,3/8"-24, GC
NUT, LOCK, 3/8"-24, GC
1шт.
33
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
2шт.
34
185174C1
TUBE
ASSY, rod, 67 to 91 in., 1701.8 to 2311.4 mm
1шт.
34
185176C1
TUBE
ASSY, rod, 56 to 68 in., 1422.4 to 1727.2 mm
1шт.
35
179228C1
END ASSY.
END ASSY, rod RH
1шт.
36
225265R1
CLAMP
RH rod end, Includes: bolt and nut
1шт.
180185
BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5
1/2 x 2-1/2 type 5
1шт.
9413967
LOCK NUT,1/2"-13, GB
NUT, 1/2 cad p/t lock type 5
1шт.
37
193371C1
END ASSY.
END ASSY, rod LH, 67 to 91 in., 1701.8 to 2311.4 mm
1шт.
37
196321C1
END
ASSY, rod LH, 56 to 68 in., 1422.4 to 1727.2 mm
1шт.
38
A43369
CLAMP
WASHER, LH end clamp, Includes: bolt and nut to 10250
2шт.
25779R1
BOLT,Hex, 3/8" - 24 x 3", Gr 8
3/8-NF x 3 phc type 8
1шт.
1323078C91
PACKAGE
steering knuckle and hub, when equipped with 11.00-16, 12.4-16 and 11.2-24 steering tires, consists of
2шт.
Refer to group 15 under main and steering wheel rims and disc for wheels that must be ordered for use with this package
1шт.
1315374C91
STEERING KNUCKLE
KNUCKLE ASSY, steering, Includes: pin, nut and washer
1шт.
934797R1
COTTER PIN,M6.3 x 63
PIN, 6.3 x 60mm pln cot
1шт.
427547
JAM NUT,Jam, 1 3/8"-12, G5
1-3/8-NF jam type 5
1шт.
22827R1
WASHER
1.406 x 2.750 x .042
1шт.
1259522C1
SHIELD
dust
1шт.
491641C1
SEAL
hub
1шт.
1259683C1
NUT
m30 x 1.5 pln slt
1шт.
ST753B
BEARING ASSY,66.67mm ID x 22mm W
BEARING, inner cone, 2-5/8 inch ID
1шт.
130504H
ROLLER BEARING,42.887 mm ID x 25.48 mm
BEARING, outer cone
1шт.
1259528C91
WHEEL
HUB ASSY, front wheel
1шт.
13390D
ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"
ASSY, inner cup
1шт.
130503H
BEARING CUP
BEARING ASSY, outer cup
1шт.
1264549C1
SEALING WASHER,106mm ID x 130mm OD x 1.6mm Thk
WASHER, hub seal
1шт.
19700R1
FITTING
lube
1шт.
189425C1
HUB CAP
CAP, front wheel hub
1шт.
30181R1
WASHER,M30 x 56.5 x 5, HT
32.8 x 56 x 5 mm
1шт.
414064C1
BOLT,Hex, 9/16" - 18 x 1 1/2"
9/16 x 1-1/2 h/hd flange, instructions (NSS)
1шт.
Выбрано товаров: 116
