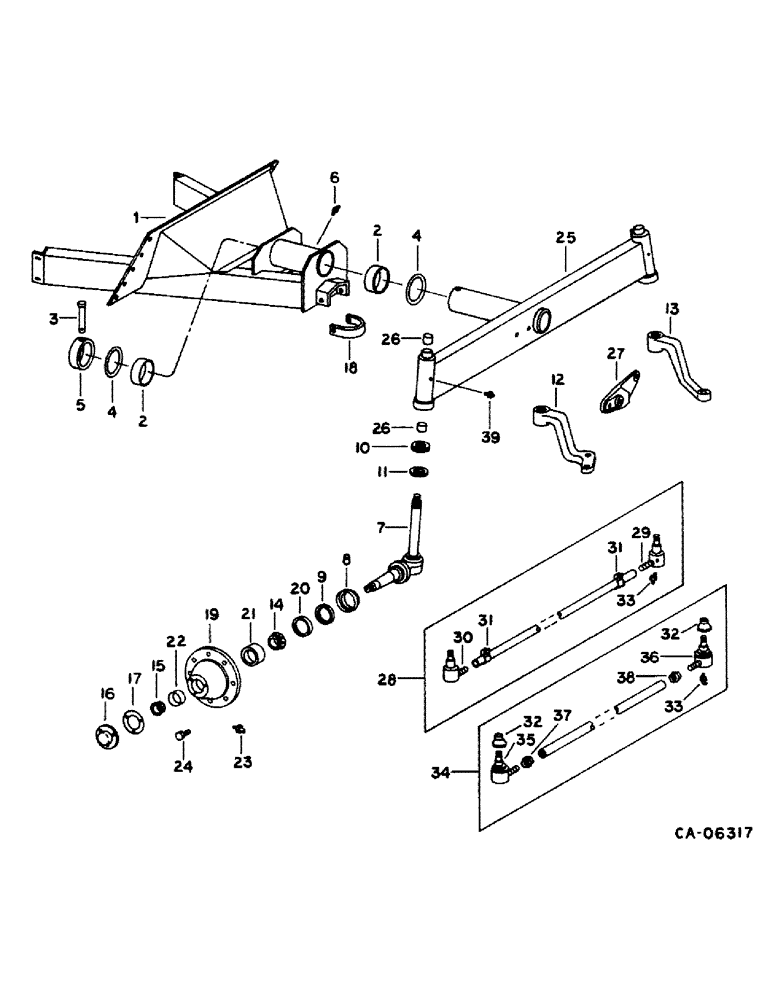

Запчасти Case IH 1420 (14-01) - SUSPENSION, STEERING AXLE, SUPPORT AND TIE ROD, NON ADJUSTABLE Suspension

1

195120C92

SUPPORT

ASSY, steering axle, Includes: Ref. no. 2, Includes: bolts, nuts and washer

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 type 8

1шт.

25712R1

WASHER

.812 x 1.500 x .179 hdn

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 phc flange lock type 8

1шт.

380916R1

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 8

3/4 x 1-1/2 type 8

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

3/4 phc flange lock type 8

1шт.

2

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

axle pivot

2шт.

3

28147R1

HEADED PIN,3/4" x 5 1/2"

PIN, 3/4 x 5-1/2 std hd, Includes: pin

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

4

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

steering axle pivot tube

2шт.

5

182795C1

BUSHING,101.68mm ID x 127mm OD x 44.7mm L

steering axle

1шт.

6

19700R91

FITTING

3/16 45 deg lub

1шт.

7

196334C2

KNUCKLE

ASSY, steering, Includes: nut, pin and Ref. nos. 8 & 9

2шт.

Used with 11.00-16, 12.4-16 and 11.2-24 steering tires

1шт.

427646

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-NF slt type 5

1шт.

137228

COTTER PIN,5/32" x 1 1/2"

PIN, SPLIT (COTTER), 5/32" x 1 1/2"

1шт.

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

.89 x 1.88 x .194 znd, Includes: nut and washer

1шт.

427547

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-NF jam type 5

1шт.

22827R1

WASHER

1.406 x 2.750 x .042

1шт.

7

1315374C91

STEERING KNUCKLE

KNUCKLE ASSY, steering, note 1, Includes: pin, nut , washer and Ref. nos. 8 and 9

2шт.

934797R1

COTTER PIN,M6.3 x 63

PIN, 6.3 x 60mm pln cot.

1шт.

427547

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-NF jam type 5

1шт.

22827R1

WASHER

1.406 x 2.750 x .042

1шт.

1259683C1

NUT

m30 x 1.5 pln slt

1шт.

8

48701D

SHIELD

steering knuckle dust

2шт.

8

1259522C1

SHIELD

steering knuckle dust

2шт.

Used with 11.00-16, 12.4-16 and 11.2-24 steering tires

1шт.

9

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

steering knuckle oil

2шт.

9

491641C1

SEAL

steering knuckle oil,replaces 1259523C1

2шт.

Used with 11.00-16, 12.4-16 and 11.2-24 steering tires

1шт.

10

185106C91

BEARING ASSY,44.2mm ID x 70.1mm OD x 19.05mm W

steering knuckle thrust

2шт.

11

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle pivot felt

2шт.

12

193911C2

LEVER

steering knuckle LH

1шт.

13

193912C2

LEVER

steering knuckle RH

1шт.

14

G15215

ROLLER BEARING

BEARING ASSY, steering hub inner cone

2шт.

14

ST753B

BEARING ASSY,66.67mm ID x 22mm W

steering hub inner cone

2шт.

Used with 11.00-16, 12.4-16 and 11.2-24 steering tires

1шт.

15

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, steering hub outer cone

2шт.

15

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

BEARING ASSY, steering hub outer cone

2шт.

Used with 11.00-16, 12.4-16 and 11.2-24 steering tires

1шт.

16

369859R1

CAP

steering hub

2шт.

16

189425C1

HUB CAP

CAP, front wheel hub, Includes: washers and bolt

2шт.

Used with 11.00-16, 12.4-16 and 11.2-24 steering tires

1шт.

30181R1

WASHER,M30 x 56.5 x 5, HT

32.8 x 56 x 5 mm phc

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

17

369860R1

GASKET,0.79mm Thk

steering hub cap

2шт.

18

196084C2

CHANNEL

combine tow, Includes: bolt and nut

1шт.

24876R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

1шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 phc flange lock type 8

1шт.

19

1323559C1

HUB

ASSY, steering tire, replaces 391824R11

2шт.

19

1259528C91

WHEEL

HUB ASSY, steering tire, Includes: Ref. nos. 20 thru 22

2шт.

Used with 11.00-16, 12.4-16 and 11.2-24 steering tires

1шт.

20

48703D

RETAINER

steering hub seal

2шт.

20

1264549C1

SEALING WASHER,106mm ID x 130mm OD x 1.6mm Thk

RETAINER, steering hub seal

2шт.

Used with 11.00-16, 12.4-16 and 11.2-24 steering tires

1шт.

21

619387R1

BEARING CUP

BEARING, steering hub inner cup

2шт.

21

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

steering hub inner cup

2шт.

Used with 11.00-16, 12.4-16 and 11.2-24 steering tires

1шт.

22

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Steering hub outer

2шт.

22

130503H

BEARING CUP

BEARING, steering hub outer cup

2шт.

Used with 11.00-16, 12.4-16 and 11.2-24 steering tires

1шт.

23

19700R91

FITTING

3/16 x 45 deg lub

2шт.

24

414064C1

BOLT,Hex, 9/16" - 18 x 1 1/2"

steering hub

1шт.

25

182798C2

AXLE

ASSY, non-adjustable, includes ref. no. 26

1шт.

26

376099R1

BUSHING

axle spindle pivot tube

4шт.

27

193917C1

ANCHOR

steering, Includes: bolt and nut

1шт.

21218R1

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5

3/4 x 5-1/4 type 5

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

3/4 phc flange lock type 8

1шт.

28

177772C91

ROD ASSY.

ROD ASSY, axle tie, Includes: pin, nut and Ref. nos. 29 thru 31

1шт.

NLS

NO LONGER SERVICED

5/8-NF slt type 5

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

29

180203C1

END ASSY.

END ASSY, rod RH

1шт.

30

180202C1

END ASSY.

END ASSY, rod LH

1шт.

31

1300176C1

CLAMP,28.5mm ID

ASSY, tie rod

2шт.

32

382562R1

SEAL

tie rod end

2шт.

33

16964R91

FITTING

1/4-28 90 deg lub

2шт.

34

177774C91

ROD

ASSY, axle tie, Includes: nut and Ref. nos. 32, & 35 thru 38

1шт.

NLS

NO LONGER SERVICED

5/8-NF slt type 5

1шт.

35

180201C91

END

ASSY, rod LH

1шт.

36

379551R92

END ASSY.

END ASSY, rod RH

1шт.

37

374061R1

JAM NUT

LH end lock LH thread

1шт.

38

374062R1

JAM NUT

NUT, RH end lock RH thread

1шт.

39

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 STR DRIVE LUB

2шт.

1323078C91

PACKAGE

steering knuckle and hub, when equipped with 11.00-16, 12.4-16 and 11.2-24 steering tires, consists of to 10250

2шт.

Refer to group 15 under main and steering wheel rims and disc for wheels that must be ordered for use with this package

1шт.

1315374C91

STEERING KNUCKLE

KNUCKLE ASSY, steering, Includes: pin, nut and washer

1шт.

934797R1

COTTER PIN,M6.3 x 63

PIN, 6.3 x 60mm pln cot.

1шт.

427547

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-NF jam type 5

1шт.

22827R1

WASHER

1.406 x 2.750 x .042

1шт.

1259522C1

SHIELD

dust

1шт.

491641C1

SEAL

hub

1шт.

1259683C1

NUT

m30 x 1.5 pln slt

1шт.

ST753B

BEARING ASSY,66.67mm ID x 22mm W

BEARING, inner cone, 2-5/8 inch ID

1шт.

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

BEARING, outer cone

1шт.

1259528C91

WHEEL

HUB ASSY, steering wheel

1шт.

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

inner cup

1шт.

130503H

BEARING CUP

BEARING, outer cup

1шт.

1264549C1

SEALING WASHER,106mm ID x 130mm OD x 1.6mm Thk

WASHER, hub seal

1шт.

19700R1

FITTING

lube

1шт.

189425C1

HUB CAP

CAP, steering wheel hub

1шт.

30181R1

WASHER,M30 x 56.5 x 5, HT

32.8 x 56 x 5 mm

1шт.

414064C1

BOLT,Hex, 9/16" - 18 x 1 1/2"

9/16 x 1-1/2 h/hd flange, instructions (NSS)

1шт.
