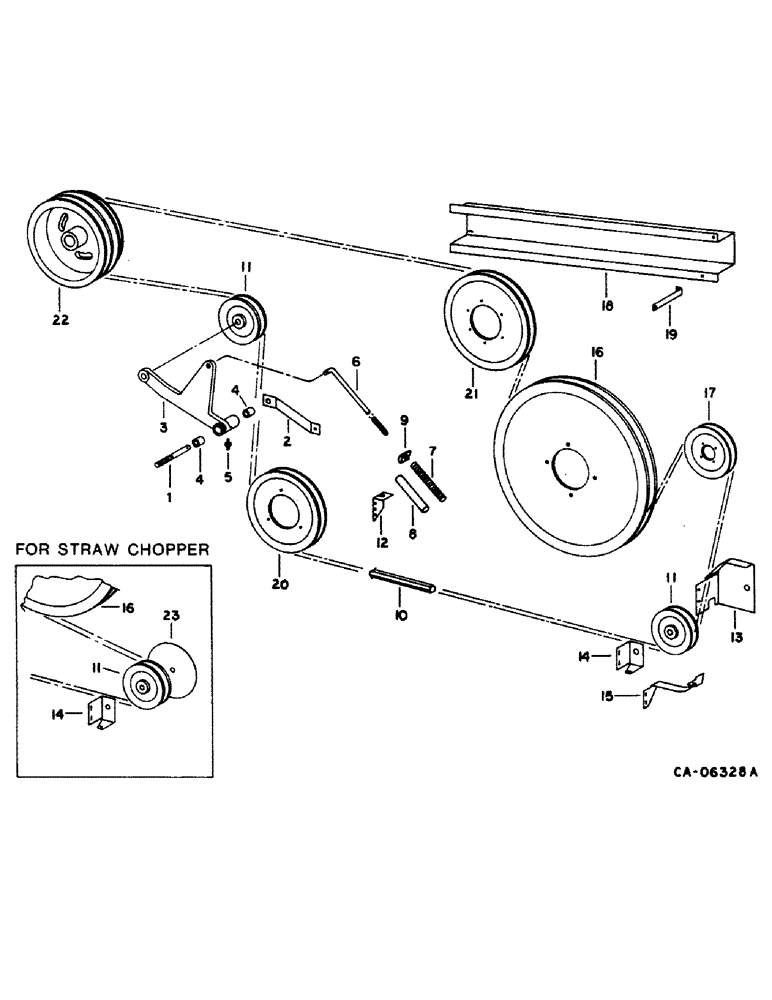

Запчасти Case IH 1420 (20-15) - SEPARATOR, BELT DRIVE, RH SIDE Separation

1

188298C2

STUD

elevator drive pivot arm, Includes: pin, nut and washer

1шт.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), 1/4" x 1 1/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

2

181313C1

SUPPORT

pivot RH drive, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

193447C91

ARM

LEVER ASSY, elevator jackshaft idler, Includes: washer and Ref. no. 4

1шт.

NLS

NO LONGER SERVICED

.812 x 1.469 x .108

1шт.

4

556448R1

BUSHING,19.07mm ID x 22.23mm OD x 25.4mm L

elevator drive idler lever

2шт.

5

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 str lub

1шт.

6

194315C1

ROD

elevator drive idler lever, Includes: nut, pin and washers

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

22770R1

WASHER

.531 x 1.500 x .164

1шт.

7

155311C1

SPRING

elevator drive idler lever

1шт.

8

1310264C1

TUBE,1.185" ID, 1.38" OD

idler lever spring

1шт.

9

194652C1

PIVOT

BAR, elevator drive pivot

1шт.

10

183049C1

BELT,22.33 mm W x 7766.69 mm L

V-BELT , Right side drive, Not for use w/straw chopper 22.33 mm W x 7766.69 mm L

1шт.

10

186509C2

BELT,0.879" W x 255.99" L

V-BELT , Right side drive, OC, For use w/straw chopper 0.879" W x 255.99" L

1шт.

11

673214R91

PULLEY

ASSY, 7.31 in. OD, 185.7mm OD, Includes: nut, bolts and washers

1шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8 x 2-3/4 type 5

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

12

193450C2

BRACKET

SUPPORT, elevator drive bar, Includes: bolt, nut and washer

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

13

183089C2

SHIELD

fixed idler, not for use w/straw chopper, Includes: nuts and bolt

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 jam type 5

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

120376

NUT,5/16"-18, G5

1шт.

14

1310448C1

SUPPORT ASSY.

SUPPORT, fixed idler, Includes: screw and nut

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

15

1303028C1

GUIDE

fixed idler belt, not for use w/straw chopper, Includes: nuts and screws

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

16

193682C1

PULLEY

ASSY, shaker shaft drive, 25 in. OD, 635 mm OD, Includes: bolt and washer

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

17

195161C1

PULLEY

ASSY, beater drive, 8.38 in. OD, 212.9mm OD, Includes: bolt, nut and washer

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

18

186637C1

SHIELD

beater drive, Includes: screws and nut

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

19

186352C1

SUPPORT

beater drive shield, Includes: screw and nut

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

20

193948C1

PULLEY,39.61mm W x 254mm OD

ASSY, fan drive, 9.75 in. OD, 247.7mm OD, Includes: bolt, nut and washer

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

21

183325C1

PULLEY

ASSY, jackshaft driven, 13 in. OD, 330.2mm OD

1шт.

22

182677C1

PULLEY

feeder drive, 10 in. OD, 254mm OD

1шт.

23

186483C1

GUARD ASSY.

SHIELD, pulley, for use w/straw chopper, Includes: nuts and bolt

1шт.

124847

COLLAR

5/8 jam type 5

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

120376

NUT,5/16"-18, G5

1шт.
