Запчасти Case IH 1420 (20-12) - SEPARATOR, STRAW CHOPPER Separation

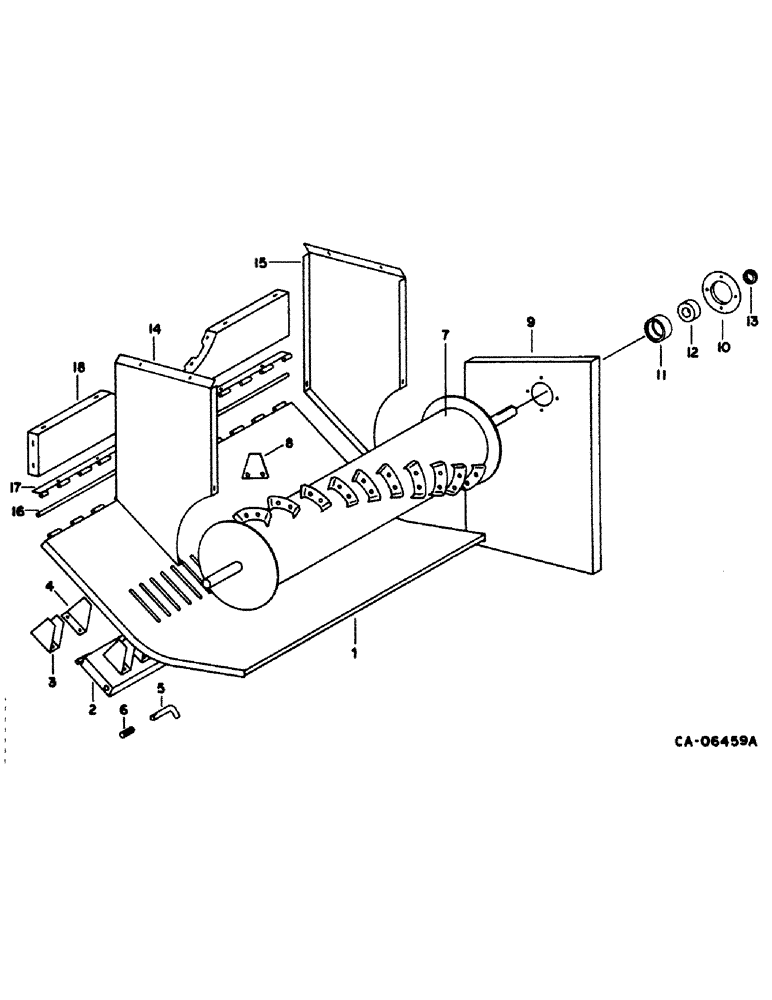

Схема запчастей Case IH 1420 - (20-12) - SEPARATOR, STRAW CHOPPER Separation
14
2
16
4
1
5
15
6
8
13
17
7
9
3
11
18
12
10

Артикул

Название

Примечание

Количество

1

182937C2

PLATE

DEFLECTOR ASSY, straw chopper, Includes: bolt and washers

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

.406 x 1.125 x .134 phc hdn

1шт.

2

174701C91

SUPPORT ASSY.

SUPPORT ASSY, straw chopper, Includes: Ref. nos. 3 & 4

1шт.

3

174680C1

BLADE

concave, Includes: rivet

9шт.

104235

RIVET,FH, 3/16" x 1/2"

1шт.

4

174681C1

BLADE

concave end, Includes: rivet

1шт.

104235

RIVET,FH, 3/16" x 1/2"

1шт.

5

174689C1

PIN

ROD, stationary knife adj, Includes: washer and pin

2шт.

23408R1

WASHER

.469 x .750 x .054

1шт.

18607R1

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

6

352105R1

SPRING

stationary knife adj pin

2шт.

7

174639C91

ROTOR

ASSY, straw chopper, Includes: Ref. no. 8

1шт.

8

197124C1

PACKAGE

BLADE, straw chopper rotor, sets of two, Includes: bolt and nut

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

9

1303040C3

SUPPORT

ASSY, chopper bearing LH

1шт.

9

1303041C3

SUPPORT

ASSY, chopper bearing RH

1шт.

10

936130R1

FLANGE

rotor shaft bearing, Includes: nut and washer

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

11

936131R1

RUBBER RING,92.46mm ID x 23.01mm OD x 23.01mm L

rotor shaft brg

2шт.

12

936133R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING, rotor shaft

2шт.

13

455112R11

COLLAR

w/set screw

2шт.

14

182941C2

BRACKET

DEFLECTOR, discharge LH, Includes: screw and nut

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

15

182942C2

BRACKET

DEFLECTOR, discharge RH, Includes: screw and nut

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

16

589386R1

ROD

beater bottom pivot

1шт.

17

181351C1

HINGE

beater bottom, Includes: screw, nut and washer

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

18

SUPPORT, rear, refer to group 21 under cage

1шт.

Выбрано товаров: 37
