Запчасти Case IH 1420 (20-03) - SEPARATOR, SEPARATOR HOOD AND SERVICE LADDER Separation

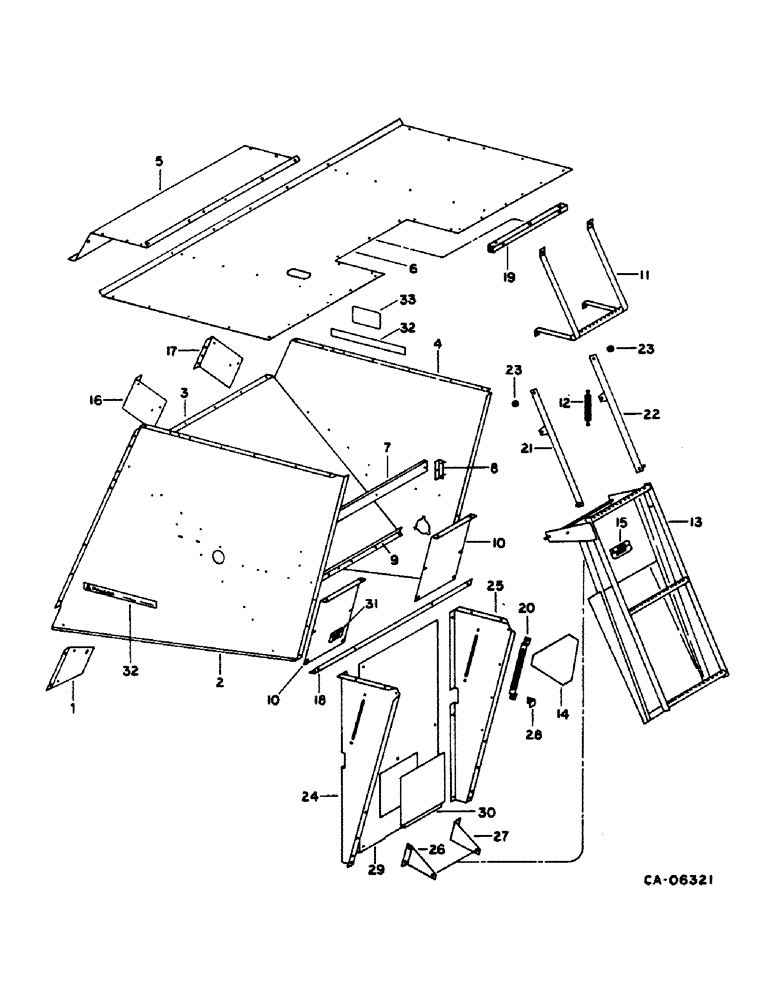

Схема запчастей Case IH 1420 - (20-03) - SEPARATOR, SEPARATOR HOOD AND SERVICE LADDER Separation
32
30
8
24
23
22
18
28
9
19
25
14
29
21
10
2
4
12
2
31
11
5
15
10
3
13
6
33
20
26
27
17
32
16
23
7

Артикул

Название

Примечание

Количество

1

186276C1

SUPPORT

separator hood LH

1шт.

1

186277C1

SUPPORT

separator hood RH, Includes: nuts and screws

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

2

186278C2

SUPPORT

separator hood side LH, replaces 1318077C91, Includes: screw and nut

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

3

194880C1

SUPPORT

straw dishcarge, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

4

1303353C91

SUPPORT

separator hood side RH, Includes: screw, nut and Ref no. 33

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

5

194883C1

SUPPORT ASSY.

SUPPORT, engine deck, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

6

194882C1

SUPPORT

service deck, Includes: nut and screw

1шт.

Ref. 6 - See 1317744C2 for Service Deck Support for 1660 Combines.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

7

183033C2

BAR

CHANNEL ASSY, service ladder support

1шт.

8

194311C1

ANGLE

upper service ladder, Includes: nut and screw

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

9

194887C1

ANGLE

deflector stiffener, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

10

1303107C91

SUPPORT

hood rear, Includes: nut, screw and Ref. no. 31

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

11

185406C1

STEP

ASSY, upper service ladder, Includes: nut and bolt

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

12

165

SPRING

Includes: bolt and nut

2шт.

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 hex-hd flange

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

13

186179C93

LADDER

ASSY, rear service, Includes: pin, washer and Ref. nos. 14 and 15

1шт.

455516

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

1шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

14

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

SMV emblem

1шт.

15

2754442R1

PRODUCT GRAPHIC

danger

1шт.

16

185104C1

SUPPORT

spearator hood sheet LH, Includes: screws and nut

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

17

185105C1

SUPPORT

separator hood sheet RH, Includes: screw and nut

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

18

194877C1

ANGLE

hood support rear, Includes: bolt and nut

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

19

186971C1

ANGLE

service deck rear support, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

20

186980C1

SUPPORT

ladder pivot, Includes: screw and nut

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

21

185223C1

LEVER ASSY.

LEVER ASSY, ladder slip LH, Includes pin and washer

1шт.

455516

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

1шт.

178374R1

WASHER

.531 x 1.250 x .054

1шт.

22

185224C1

LEVER ASSY.

LEVER ASSY, ladder slip RH, Includes: pin and washer

1шт.

455516

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

1шт.

178374R1

WASHER

.531 x 1.250 x .054

1шт.

23

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

ladder slip lever, Includes: bolt, nut, pin and washers

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

1шт.

455516

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

178372R1

WASHER

.406 x 1.250 x .054

1шт.

24

183035C2

BRACKET

SUPPORT, rear service ladder LH, Includes: nuts and screw

1шт.

488837C1

SPRING NUT

5/16 speed

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

25

183036C2

BRACKET

SUPPORT, rear service ladder RH, Includes: nuts and screw

1шт.

488837C1

SPRING NUT

5/16 speed

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

26

185227C3

BAR

rear service ladder pivot LH, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

27

185228C3

SUPPORT

BAR, rear service ladder pivot RH, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

28

186606C2

BAR

ladder stop, Includes: bolt, washer and nut

1шт.

180085

SPRING

5/16 x 1-3/4 type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

20824R1

WASHER

WAHSER, .344 x 1.500 x .054

1шт.

29

183034C1

SHEET

ladder opening front, Includes: bolt and nut

1шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

1/4 x 1/2 flange lock

1шт.

92068R1

NUT

ladder sheet

1шт.

30

183031C1

SUPPORT

straw spreader gear access

1шт.

167800C1

CLIP

CLIP, door retaining, Includes: nut and screw

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

31

2754446R1

PRODUCT GRAPHIC

caution

1шт.

32

174797C1

DECAL

PRODUCT GRAPHIC, caution, rotor turning

1шт.

33

185442C1

DECAL

PRODUCT GRAPHIC, caution, engine shut-off

1шт.
