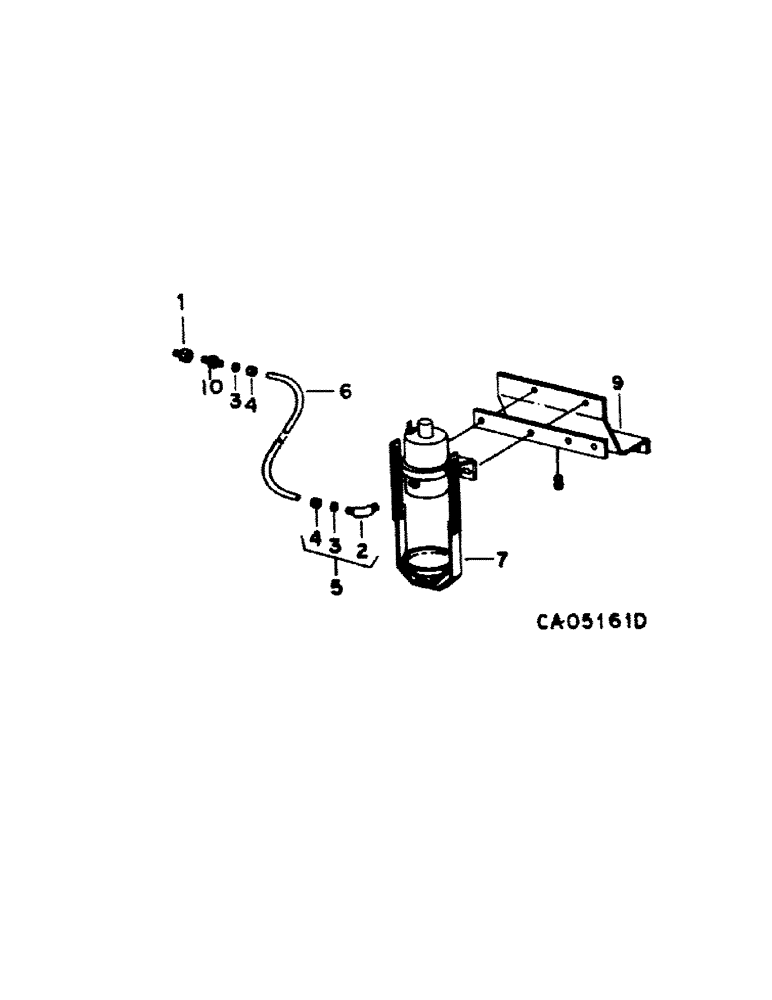

Запчасти Case IH 1420 (12-10) - POWER, ETHER STARTING Power

1

269635R91

NOZZLE CAP

NOZZLE, ether

1шт.

2

140303

ELBOW

ball sleeve

2шт.

3

121322

SLEEVE,Ball Type, 1/8" tube

tube connector

2шт.

4

121220

TUBE NUT

NUT, tube connector

2шт.

5

140304

ELBOW

1/8-27 90 deg ball sleeve tube, includes ref. nos. 2, 3 and 4

2шт.

6

TUBE, ether start, uses 23 in. of 1/8 OD copper tubing from 60 ft. roll marked 995059R1, two 121220 nuts and two 121322 sleeves

1шт.

7

121842C91

SOLENOID SWITCH

SOLENOID ASSY, ether injection, composed of, Includes: gasket and retainer

1шт.

395686R1

GASKET

ether starting injector

1шт.

121851C1

RETAINER

injector, bail assy

1шт.

8

107607C2

BAR

relay mounting, Includes: bolt and nut

1шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

9

104412C2

BRACKET

ether solenoid mounting, Includes: bolt and washer

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

222-600

FITTING,5/16"-24 x 1/8 NPT, Comp

CONNECTOR, 1/8-27 x 5/16-24

1шт.

385064R91

FLUID

starting, 12 oz. can, not illustrated

1шт.
